Windows And Window Strips

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 0934

Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - WINDOWS AND WINDOW STRIPS (09341)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673009003 WINDSCREEN GLASS Enquire To Order
673009003 WINDSCREEN GLASS Enquire To Order
673009003 WINDSCREEN GLASS Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673009896 REAR LIFTGATE WINDOW Enquire To Order
673009895 REAR LIFTGATE WINDOW Enquire To Order
Photo Part No Description Price (each) Stock
670221530 RH FRONT DOOR WINDOW Enquire To Order
670032191 RH FRONT DOOR WINDOW Enquire To Order
670221531 LH FRONT DOOR WINDOW Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670299656 RH REAR DOOR WINDOW Enquire To Order
670221532 RH REAR DOOR WINDOW Enquire To Order
670033362 RH REAR DOOR WINDOW Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673009204 RH REAR QUARTER WINDOW ASSEMBLY Enquire To Order
673010515 RH REAR QUARTER WINDOW ASSEMBLY Enquire To Order
673010516 RH REAR QUARTER WINDOW ASSEMBLY Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675000012 PAD Enquire To Order
Photo Part No Description Price (each) Stock
670153311 RH SIDE PROFILE MOULDING Enquire To Order
702124457 Label - European Approval Enquire To Order
670153312 LH SIDE PROFILE MOULDING Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670172826 RH DOOR OPENING FRONT GASKET Enquire To Order
670172827 LH DOOR OPENING FRONT GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670032889 REAR GASKET FOR RH DOOR OPENING Enquire To Order
670032884 REAR GASKET FOR LH DOOR OPENING Enquire To Order
Photo Part No Description Price (each) Stock
675000452 BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
675000012 PAD Enquire To Order
Photo Part No Description Price (each) Stock
670038799 PROTECTIVE FILMS Enquire To Order
Photo Part No Description Price (each) Stock
670307713 RH GASKET Enquire To Order
670034255 RH GASKET Enquire To Order
670307714 LH GASKET Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

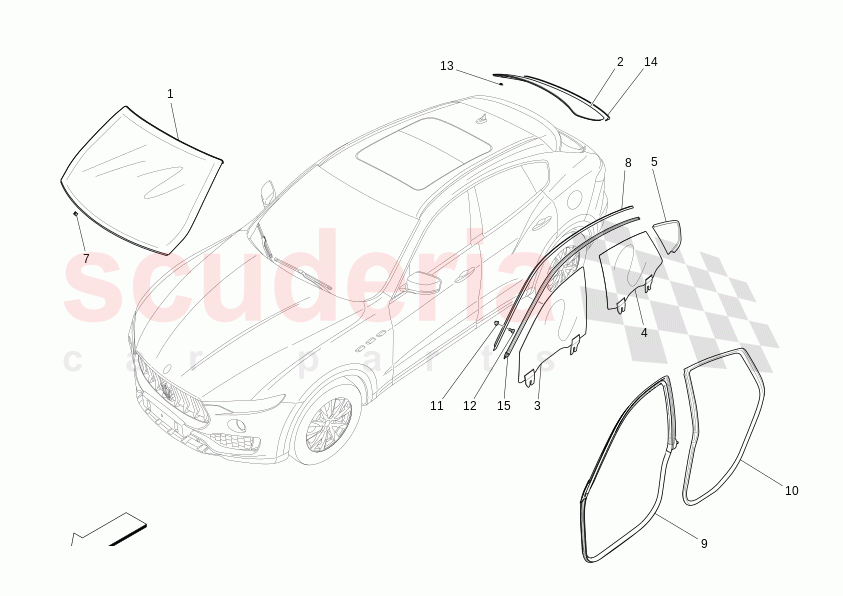

WINDOWS AND WINDOW STRIPS of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 673009003
WINDSCREEN GLASS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6113657; Available with: TRAFFIC SIGN RECOGNITION (TSR), FULL LED HEADLAMPS Not available with: FORWARD COLLISION WARNING + AUTOMATED EMERGENCY BRAKING + ADVANCED BRAKE ASSIST, BI-XENON HEADLAMPS FULL AFS, BI-XENON HEADLAMPS (NO AFS); 		- 1 Enquire
1 673009003
WINDSCREEN GLASS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6113657; Available with: TRAFFIC SIGN RECOGNITION (TSR), FORWARD COLLISION WARNING + AUTOMATED EMERGENCY BRAKING + ADVANCED BRAKE ASSIST, FULL LED HEADLAMPS Not available with: BI-XENON HEADLAMPS FULL AFS, BI-XENON HEADLAMPS (NO AFS); 		- 1 Enquire
1 673009003
WINDSCREEN GLASS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6113657; Available with: FULL LED HEADLAMPS Not available with: TRAFFIC SIGN RECOGNITION (TSR), FORWARD COLLISION WARNING + AUTOMATED EMERGENCY BRAKING + ADVANCED BRAKE ASSIST, BI-XENON HEADLAMPS FULL AFS, BI-XENON HEADLAMPS (NO AFS); 		- 1 Enquire
1 673009003
WINDSCREEN GLASS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6113657; Available with: FORWARD COLLISION WARNING + AUTOMATED EMERGENCY BRAKING + ADVANCED BRAKE ASSIST, FULL LED HEADLAMPS Not available with: TRAFFIC SIGN RECOGNITION (TSR), BI-XENON HEADLAMPS FULL AFS, BI-XENON HEADLAMPS (NO AFS); 		- 1 Enquire
2 673009896
REAR LIFTGATE WINDOW
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6064708 - 99999999; Available with: REAR PRIVACY AND LAMINATED GLASS ; 		- 1 Enquire
2 673009895
REAR LIFTGATE WINDOW
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6063561 - 6113484; Not available with: REAR PRIVACY AND LAMINATED GLASS; 		- 1 Enquire
3 670221530
RH FRONT DOOR WINDOW 		- 1 Enquire
3 670032191
RH FRONT DOOR WINDOW
Bespoke Assembly Number 0 - 6100622; 		- 1 Enquire
3 670221531
LH FRONT DOOR WINDOW 		- 1 Enquire

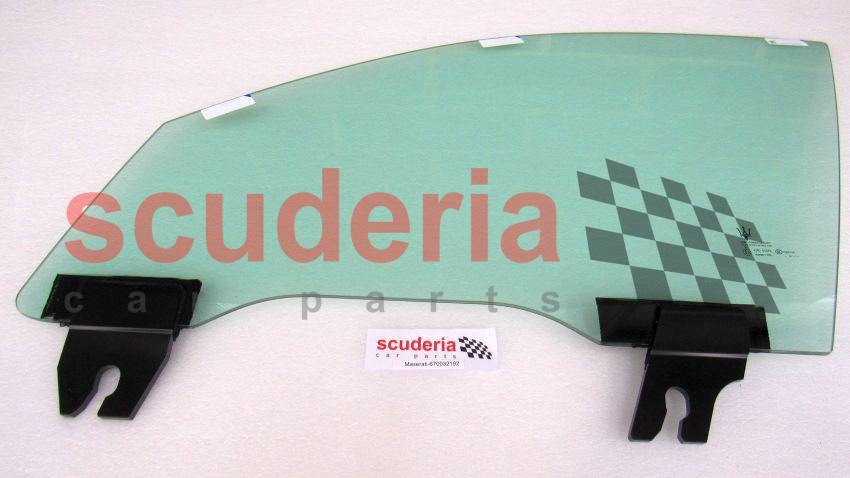

3 670032192
LH FRONT DOOR WINDOW
Bespoke Assembly Number 0 - 6112064; 		- 1 Enquire
4 670299656
RH REAR DOOR WINDOW
With chrome moulding; Not available with: REAR PRIVACY AND LAMINATED GLASS; 		- 1 Enquire
4 670221532
RH REAR DOOR WINDOW
With chrome moulding; Available with: REAR PRIVACY AND LAMINATED GLASS ; 		- 1 Enquire
4 670033362
RH REAR DOOR WINDOW
With chrome moulding; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6106449; Available with: REAR PRIVACY AND LAMINATED GLASS ; 		- 1 Enquire
4 670032193
RH REAR DOOR WINDOW
With chrome moulding; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112078; Not available with: REAR PRIVACY AND LAMINATED GLASS; 		- 1 Enquire
4 670299657
LH REAR DOOR WINDOW
With chrome moulding; Not available with: REAR PRIVACY AND LAMINATED GLASS; 		- 1 Enquire
4 670221533
LH REAR DOOR WINDOW
With chrome moulding; Available with: REAR PRIVACY AND LAMINATED GLASS ; 		- 1 Enquire
4 670033361
LH REAR DOOR WINDOW
With chrome moulding; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6105789; Available with: REAR PRIVACY AND LAMINATED GLASS ; 		- 1 Enquire
4 670032194
LH REAR DOOR WINDOW
With chrome moulding; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6111123; Not available with: REAR PRIVACY AND LAMINATED GLASS; 		- 1 Enquire
5 673009204
RH REAR QUARTER WINDOW ASSEMBLY
Available with: REAR PRIVACY AND LAMINATED GLASS, BLACK MOULDING DOOR GLASS ; 		- 1 Enquire
5 673010515
RH REAR QUARTER WINDOW ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6114454; Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, REAR PRIVACY AND LAMINATED GLASS, BLACK MOULDING DOOR GLASS; 		- 1 Enquire
5 673010516
RH REAR QUARTER WINDOW ASSEMBLY
Available with: REAR PRIVACY AND LAMINATED GLASS Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, BLACK MOULDING DOOR GLASS; 		- 1 Enquire
5 673009203
RH REAR QUARTER WINDOW ASSEMBLY
Available with: BLACK MOULDING DOOR GLASS Not available with: REAR PRIVACY AND LAMINATED GLASS; 		- 1 Enquire
5 673010514
LH REAR QUARTER WINDOW ASSEMBLY
Available with: REAR PRIVACY AND LAMINATED GLASS Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, BLACK MOULDING DOOR GLASS; 		- 1 Enquire
5 673010513
LH REAR QUARTER WINDOW ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6114454; Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, REAR PRIVACY AND LAMINATED GLASS, BLACK MOULDING DOOR GLASS; 		- 1 Enquire
5 673009206
LH REAR QUARTER WINDOW ASSEMBLY
Available with: REAR PRIVACY AND LAMINATED GLASS, BLACK MOULDING DOOR GLASS ; 		- 1 Enquire
5 673009205
LH REAR QUARTER WINDOW ASSEMBLY
Available with: BLACK MOULDING DOOR GLASS Not available with: REAR PRIVACY AND LAMINATED GLASS; 		- 1 Enquire
7 675000012
PAD 		- 2 Enquire
8 670153311
RH SIDE PROFILE MOULDING
Not available with: BLACK MOULDING DOOR GLASS; 		- 1 Enquire
8 702124457
Label - European Approval
Available with: BLACK MOULDING DOOR GLASS ; 		- 1 Enquire
8 670153312
LH SIDE PROFILE MOULDING
Not available with: BLACK MOULDING DOOR GLASS; 		- 1 Enquire
8 702124456
Label - European Approval
Available with: BLACK MOULDING DOOR GLASS ; 		- 1 Enquire
9 670172826
RH DOOR OPENING FRONT GASKET
Bespoke Assembly Number 0 - 6113578; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; 		- 1 Enquire
9 670172827
LH DOOR OPENING FRONT GASKET
Bespoke Assembly Number 0 - 6113339; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; 		- 1 Enquire
10 670032889
REAR GASKET FOR RH DOOR OPENING 		- 1 Enquire
10 670032884
REAR GASKET FOR LH DOOR OPENING 		- 1 Enquire
11 675000452
BLOCK 		- 16 Enquire
13 675000012
PAD 		- 2 Enquire
14 670038799
PROTECTIVE FILMS 		- 1 Enquire
15 670307713
RH GASKET 		- 1 Enquire
15 670034255
RH GASKET 		- 1 Enquire
15 670307714
LH GASKET 		- 1 Enquire
15 670034256
LH GASKET 		- 1 Enquire
