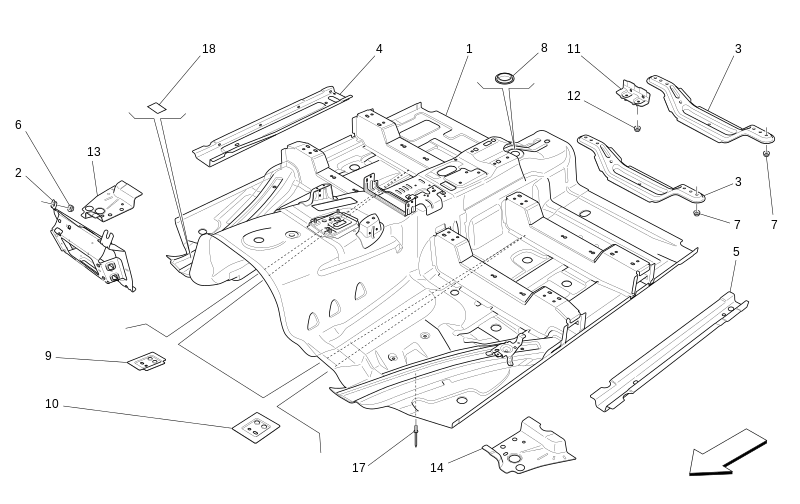

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673013834	CENTRAL FLOOR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670101542	BODY COMPUTER SUPPORT BRACKET	Enquire	To Order
	670035645	BODY COMPUTER SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034250	UNDERFLOOR TUNNEL REAR REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005699	RH UNDERFLOOR SIDE RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005700	LH UNDERFLOOR SIDE RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000412	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670297466	REAR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005072	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003751	RH PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670039312	LH PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034846	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670297466	REAR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670037283	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670036842	PLUG	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	673013834	CENTRAL FLOOR ASSEMBLY	673013834 CENTRAL FLOOR ASSEMBLY Bespoke Assembly Number 6053787 - 6109140;	-	1	Enquire
2	670101542	BODY COMPUTER SUPPORT BRACKET	670101542 BODY COMPUTER SUPPORT BRACKET Not available with: EMERGENCY RESPONSE ASSISTANCE SYSTEM; EU CN US CD JP ME KO;	-	1	Enquire
2	670035645	BODY COMPUTER SUPPORT BRACKET	670035645 BODY COMPUTER SUPPORT BRACKET AU UK JRH IN SA;	-	1	Enquire
3	670034250	UNDERFLOOR TUNNEL REAR REINFORCEMENT	670034250 UNDERFLOOR TUNNEL REAR REINFORCEMENT	-	2	Enquire
4	673005699	RH UNDERFLOOR SIDE RAIL	673005699 RH UNDERFLOOR SIDE RAIL	-	1	Enquire
5	673005700	LH UNDERFLOOR SIDE RAIL	673005700 LH UNDERFLOOR SIDE RAIL	-	1	Enquire
6	675000412	NUT	675000412 NUT	-	4	Enquire
7	670297466	REAR WIRING HARNESS	670297466 REAR WIRING HARNESS	-	4	Enquire
8	670005072	PLUG	670005072 PLUG Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
9	670003751	RH PLATE	670003751 RH PLATE	-	1	Enquire
10	670039312	LH PLATE	670039312 LH PLATE	-	1	Enquire
11	670034846	BRACKET	670034846 BRACKET	-	2	Enquire
12	670297466	REAR WIRING HARNESS	670297466 REAR WIRING HARNESS	-	4	Enquire
17	670037283	RIVET	670037283 RIVET	-	4	Enquire
18	670036842	PLUG	670036842 PLUG Bespoke Assembly Number 0 - 6112506;	-	1	Enquire
