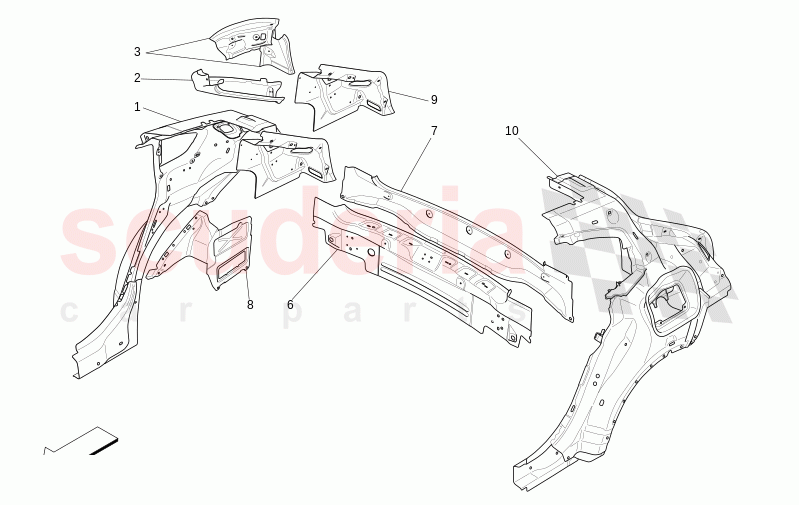

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673010434	RH BODY SIDE FRAME ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005675	UPPER LH HEADLIGHT HOUSING GUIDE	Enquire	To Order
	673005674	UPPER RH HEADLIGHT HOUSING GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010793	LOWER LH HEADLIGHT HOUSING GUIDE	Enquire	To Order
	673010792	LOWER RH HEADLIGHT HOUSING GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673012331	LOWER REAR PANEL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673013833	REAR CROSS MEMBER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670106337	RH REAR LIGHT HOUSING BASE ASSEMBLY	Enquire	To Order
	670106340	LH REAR LIGHT HOUSING BASE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010435	LH BODY SIDE FRAME ASSEMBLY	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	673010434	RH BODY SIDE FRAME ASSEMBLY	673010434 RH BODY SIDE FRAME ASSEMBLY Bespoke Assembly Number 6068589 - 99999999;	-	1	Enquire
2	673005675	UPPER LH HEADLIGHT HOUSING GUIDE	673005675 UPPER LH HEADLIGHT HOUSING GUIDE	-	1	Enquire
2	673005674	UPPER RH HEADLIGHT HOUSING GUIDE	673005674 UPPER RH HEADLIGHT HOUSING GUIDE	-	1	Enquire
3	673010793	LOWER LH HEADLIGHT HOUSING GUIDE	673010793 LOWER LH HEADLIGHT HOUSING GUIDE	-	1	Enquire
3	673010792	LOWER RH HEADLIGHT HOUSING GUIDE	673010792 LOWER RH HEADLIGHT HOUSING GUIDE	-	1	Enquire
6	673012331	LOWER REAR PANEL ASSEMBLY	673012331 LOWER REAR PANEL ASSEMBLY Bespoke Assembly Number 6087717 - 99999999;	-	1	Enquire
7	673013833	REAR CROSS MEMBER ASSEMBLY	673013833 REAR CROSS MEMBER ASSEMBLY	-	1	Enquire
8	673005680	RH REAR INSERT	673005680 RH REAR INSERT	-	1	Enquire
8	673005681	LH REAR INSERT	673005681 LH REAR INSERT	-	1	Enquire
9	670106337	RH REAR LIGHT HOUSING BASE ASSEMBLY	670106337 RH REAR LIGHT HOUSING BASE ASSEMBLY	-	1	Enquire
9	670106340	LH REAR LIGHT HOUSING BASE ASSEMBLY	670106340 LH REAR LIGHT HOUSING BASE ASSEMBLY	-	1	Enquire
10	673010435	LH BODY SIDE FRAME ASSEMBLY	673010435 LH BODY SIDE FRAME ASSEMBLY Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
