BODYWORK AND CENTRAL OUTER TRIM PANELS of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - BODYWORK AND CENTRAL OUTER TRIM PANELS (09011)

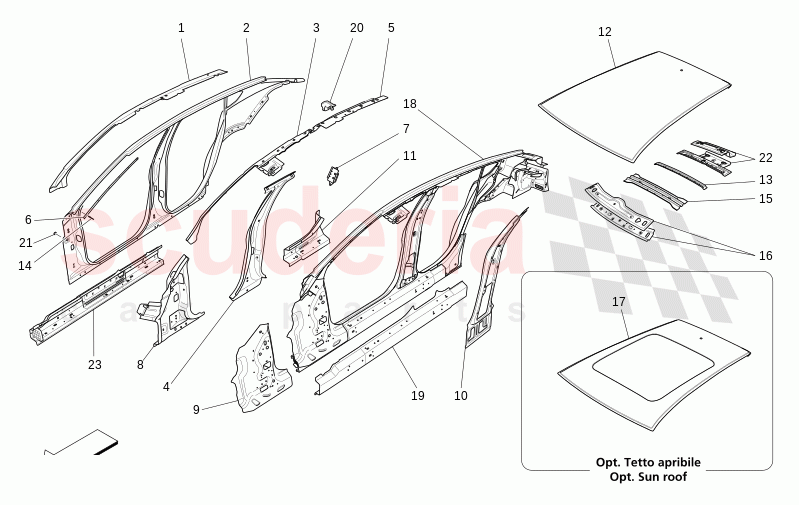

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673006978	RH FRONT PILLAR MEMBER REINFORCEMENT	Enquire	To Order
	673006973	LH FRONT PILLAR MEMBER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673008250	LH EXTERNAL BODY SIDE ASSEMBLY	Enquire	To Order
	673008249	RH EXTERNAL BODY SIDE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673006977	LH FRONT PILLAR SIDE RAIL ASSEMBLY	Enquire	To Order
	673006976	RH FRONT PILLAR SIDE RAIL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673006979	RH CENTRAL PILLAR REINFORCEMENT ASS.	Enquire	To Order
	673006981	LH CENTRAL PILLAR REINFORCEMENT ASS.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673006975	LH REAR UPPER SIDE RAIL ASSEMBLY	Enquire	To Order
	673006974	RH REAR UPPER SIDE RAIL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2971627D	HARNESS FOR ENGINE	Enquire	To Order
	4ML971184AR	HARNESS,TRUNK LID CONNECTING WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005638	LH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	Enquire	To Order
	673005637	RH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005640	LH FRONT PILLARE REINFORCEMENT	Enquire	To Order
	673005639	RH FRONT PILLAR REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010878	LH INTERNAL BODY SIDE FRAME ASSEMBLY	Enquire	To Order
	673011061	RH INTERNAL BODY SIDE FRAME ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673006983	LH CENTRAL PILLAR FRAME	Enquire	To Order
	673006982	RH CENTRAL PILLAR FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005644	LH B-PILLAR LOWER FRAMEWORK CONNECTION	Enquire	To Order
	673005643	RH B-PILLAR LOWER FRAMEWORK CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673007935	ROOF EXTERNAL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005646	INTERMEDIATE CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670105701	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005647	CENTRAL CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005648	WINDSCREEN UPPER CROSS MEMBER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673007936	ROOF EXTERNAL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010877	LH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE	Enquire	To Order
	673010875	RH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005653	LH SIDE MEMBER ASSEMBLY	Enquire	To Order
	673011062	RH SIDE MEMBER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034918	LH DIAPHRAGM	Enquire	To Order
	670034917	RH DIAPHRAGM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031350	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005654	REAR CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673006848	LH REINFORCEMENT	Enquire	To Order
	673006847	RH REINFORCEMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	673006978	RH FRONT PILLAR MEMBER REINFORCEMENT	673006978 RH FRONT PILLAR MEMBER REINFORCEMENT	-	1	Enquire
1	673006973	LH FRONT PILLAR MEMBER REINFORCEMENT	673006973 LH FRONT PILLAR MEMBER REINFORCEMENT	-	1	Enquire
2	673008250	LH EXTERNAL BODY SIDE ASSEMBLY	673008250 LH EXTERNAL BODY SIDE ASSEMBLY	-	1	Enquire
2	673008249	RH EXTERNAL BODY SIDE ASSEMBLY	673008249 RH EXTERNAL BODY SIDE ASSEMBLY	-	1	Enquire
3	673006977	LH FRONT PILLAR SIDE RAIL ASSEMBLY	673006977 LH FRONT PILLAR SIDE RAIL ASSEMBLY	-	1	Enquire
3	673006976	RH FRONT PILLAR SIDE RAIL ASSEMBLY	673006976 RH FRONT PILLAR SIDE RAIL ASSEMBLY	-	1	Enquire
4	673006979	RH CENTRAL PILLAR REINFORCEMENT ASS.	673006979 RH CENTRAL PILLAR REINFORCEMENT ASS.	-	1	Enquire
4	673006981	LH CENTRAL PILLAR REINFORCEMENT ASS.	673006981 LH CENTRAL PILLAR REINFORCEMENT ASS.	-	1	Enquire
5	673006975	LH REAR UPPER SIDE RAIL ASSEMBLY	673006975 LH REAR UPPER SIDE RAIL ASSEMBLY	-	1	Enquire
5	673006974	RH REAR UPPER SIDE RAIL ASSEMBLY	673006974 RH REAR UPPER SIDE RAIL ASSEMBLY	-	1	Enquire
6	P2971627D	HARNESS FOR ENGINE	P2971627D HARNESS FOR ENGINE FOR ASSEMBLY < 6067809, FOR THE FIRST REPLACE, PLEASE ORDER ALSO PN 670142159.;	-	1	Enquire
6	4ML971184AR	HARNESS,TRUNK LID CONNECTING WIRING	4ML971184AR HARNESS,TRUNK LID CONNECTING WIRING FOR ASSEMBLY < 6067809, FOR THE FIRST REPLACE, PLEASE ORDER ALSO PN 670142160.;	-	1	Enquire
7	673005638	LH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	673005638 LH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	-	1	Enquire
7	673005637	RH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	673005637 RH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	-	1	Enquire
8	673005640	LH FRONT PILLARE REINFORCEMENT	673005640 LH FRONT PILLARE REINFORCEMENT	-	1	Enquire
8	673005639	RH FRONT PILLAR REINFORCEMENT	673005639 RH FRONT PILLAR REINFORCEMENT	-	1	Enquire
9	673010878	LH INTERNAL BODY SIDE FRAME ASSEMBLY	673010878 LH INTERNAL BODY SIDE FRAME ASSEMBLY Bespoke Assembly Number 6074124 - 99999999;	-	1	Enquire
9	673011061	RH INTERNAL BODY SIDE FRAME ASSEMBLY	673011061 RH INTERNAL BODY SIDE FRAME ASSEMBLY Bespoke Assembly Number 6080686 - 99999999;	-	1	Enquire
10	673006983	LH CENTRAL PILLAR FRAME	673006983 LH CENTRAL PILLAR FRAME	-	1	Enquire
10	673006982	RH CENTRAL PILLAR FRAME	673006982 RH CENTRAL PILLAR FRAME	-	1	Enquire
11	673005644	LH B-PILLAR LOWER FRAMEWORK CONNECTION	673005644 LH B-PILLAR LOWER FRAMEWORK CONNECTION	-	1	Enquire
11	673005643	RH B-PILLAR LOWER FRAMEWORK CONNECTION	673005643 RH B-PILLAR LOWER FRAMEWORK CONNECTION	-	1	Enquire
12	673007935	ROOF EXTERNAL TRIM	673007935 ROOF EXTERNAL TRIM Not available with: LARGE SUNROOF WITH ELECTRICAL DRIVE;	-	1	Enquire
13	673005646	INTERMEDIATE CROSS MEMBER	673005646 INTERMEDIATE CROSS MEMBER Not available with: LARGE SUNROOF WITH ELECTRICAL DRIVE;	-	1	Enquire
14	670105701	RIVET	670105701 RIVET	-	12	Enquire
15	673005647	CENTRAL CROSS MEMBER	673005647 CENTRAL CROSS MEMBER Not available with: LARGE SUNROOF WITH ELECTRICAL DRIVE;	-	1	Enquire
16	673005648	WINDSCREEN UPPER CROSS MEMBER ASSEMBLY	673005648 WINDSCREEN UPPER CROSS MEMBER ASSEMBLY	-	1	Enquire
17	673007936	ROOF EXTERNAL TRIM	673007936 ROOF EXTERNAL TRIM Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE ;	-	1	Enquire
18	673010877	LH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE	673010877 LH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE FOR VEHICLES WITH ASSEMBLY < 6074124, ONLY FOR THE FIRST REPLACE PLEASE ORDER ALSO P/N 673010874; Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
18	673010875	RH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE	673010875 RH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE FOR VEHICLES WITH ASSEMBLY < 6074124, ONLY FOR THE FIRST REPLACE PLEASE ORDER ALSO P/N 673010873; Bespoke Assembly Number 6074124 - 99999999;	-	1	Enquire
19	673005653	LH SIDE MEMBER ASSEMBLY	673005653 LH SIDE MEMBER ASSEMBLY	-	1	Enquire
19	673011062	RH SIDE MEMBER ASSEMBLY	673011062 RH SIDE MEMBER ASSEMBLY Bespoke Assembly Number 6080686 - 99999999;	-	1	Enquire
20	670034918	LH DIAPHRAGM	670034918 LH DIAPHRAGM	-	1	Enquire
20	670034917	RH DIAPHRAGM	670034917 RH DIAPHRAGM	-	1	Enquire
21	670031350	PLUG	670031350 PLUG Bespoke Assembly Number 0 - 6112506;	-	2	Enquire
22	673005654	REAR CROSS MEMBER	673005654 REAR CROSS MEMBER	-	1	Enquire
23	673006848	LH REINFORCEMENT	673006848 LH REINFORCEMENT	-	1	Enquire
23	673006847	RH REINFORCEMENT	673006847 RH REINFORCEMENT	-	1	Enquire
