A/C UNIT: DIFFUSION of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

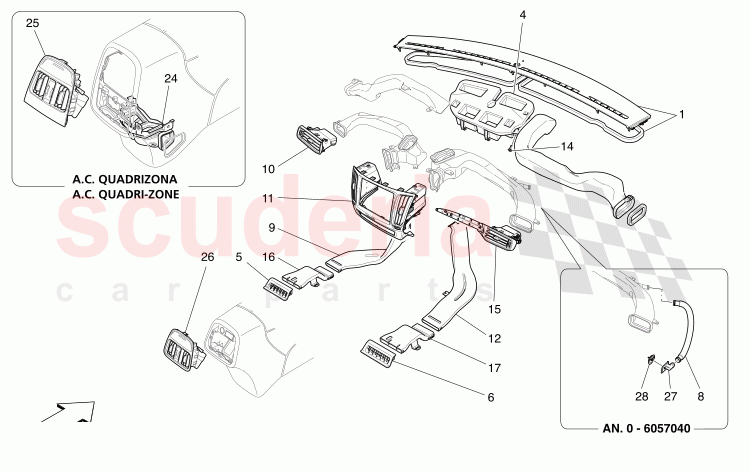

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - A/C UNIT: DIFFUSION (08421)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4ML971035CK	HARNESS,DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10835302	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML857035AQ	STORAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032804	REAR LEFT AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121056	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B807967	REAR JAPAN LIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670104062	REAR RIGHT AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006484	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121180A	LB63X RH SIDE IN OUT PIPES ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032805	LH UNDER SEAT CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670036729	RH UNDER SEAT CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033534	REAR AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML867782L	LUGGAGE COMPARTM.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0807235A	CROSSMEMBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4ML971035CK	HARNESS,DOOR	4ML971035CK HARNESS,DOOR Bespoke Assembly Number 6058399 - 99999999;	-	1	Enquire
5	N10835302	CLAMP	N10835302 CLAMP Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
6	4ML857035AQ	STORAGE	4ML857035AQ STORAGE Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
9	670032804	REAR LEFT AIR DUCT	670032804 REAR LEFT AIR DUCT Not available with: FOUR-ZONE AUTOMATIC CLIMA; EU CN US CD JP ME KO;	-	1	Enquire
10	4LA121056	COOLANT HOSE	4LA121056 COOLANT HOSE EU CN US CD JP ME KO;	-	1	Enquire
11	47B807967	REAR JAPAN LIP	47B807967 REAR JAPAN LIP Bespoke Assembly Number 6079467 - 99999999;	-	1	Enquire
12	670104062	REAR RIGHT AIR DUCT	670104062 REAR RIGHT AIR DUCT Bespoke Assembly Number 6053787 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA; EU CN US CD JP ME KO;	-	1	Enquire
14	670006484	SCREW	670006484 SCREW	-	3	Enquire
15	4LA121180A	LB63X RH SIDE IN OUT PIPES ASSY	4LA121180A LB63X RH SIDE IN OUT PIPES ASSY EU CN US CD JP ME KO;	-	1	Enquire
16	670032805	LH UNDER SEAT CONNECTOR	670032805 LH UNDER SEAT CONNECTOR Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
17	670036729	RH UNDER SEAT CONNECTOR	670036729 RH UNDER SEAT CONNECTOR Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
24	670033534	REAR AIR DUCT	670033534 REAR AIR DUCT Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ;	-	1	Enquire
25	4ML867782L	LUGGAGE COMPARTM.	4ML867782L LUGGAGE COMPARTM. Available with: FOUR-ZONE AUTOMATIC CLIMA ;	-	1	Enquire
26	4M0807235A	CROSSMEMBER	4M0807235A CROSSMEMBER Bespoke Assembly Number 6066858 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
