A/C Unit: Engine Compartment Devices

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 0840

(Not available with: FOUR-ZONE AUTOMATIC CLIMA)
Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - A/C UNIT: ENGINE COMPARTMENT DEVICES (08403)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670038664 PIPE FROM EVAPOURATOR TO UNION Enquire To Order
670002658 PIPE FROM EVAPOURATOR TO UNION Enquire To Order
Photo Part No Description Price (each) Stock
670104909 PIPE A.C. - COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
670003216 PIPE BETWEEN CONDENSER AND JUNCTION Enquire To Order
Photo Part No Description Price (each) Stock
670104810 PIPE FROM COMPRESSOR TO UNION Enquire To Order
Photo Part No Description Price (each) Stock
670009820 AC CONDENSER Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
670038668 PRESSOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
954108 AC COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
291575 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
299601 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675000122 1/2" SEAL Enquire To Order
Photo Part No Description Price (each) Stock
670005087 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
675000315 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675000456 SCREWM8X25 Enquire To Order
Photo Part No Description Price (each) Stock
14307124 SCREWM8X90 Enquire To Order
Photo Part No Description Price (each) Stock
246208 SCREWM8X90 Enquire To Order
Photo Part No Description Price (each) Stock
670283669 ROOF UPHOLSTERY ASSEMBLY GRE Enquire To Order
Photo Part No Description Price (each) Stock
673000010 DEHYDRATOR FILTER KIT Enquire To Order
Photo Part No Description Price (each) Stock
11186374 WASHERD.10-20X2 Enquire To Order
Photo Part No Description Price (each) Stock
320345 BRACKET ASSEMBLY Enquire To Order
307939 BRACKET ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
283287 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
311689 SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
265097 SCREWM8X40 Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
675000249 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675000328 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675000123 3/4" SEAL Enquire To Order
Photo Part No Description Price (each) Stock
675000314 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675000121 3/8" SEAL Enquire To Order
Photo Part No Description Price (each) Stock
675000121 3/8" SEAL Enquire To Order
Photo Part No Description Price (each) Stock
675000123 3/4" SEAL Enquire To Order
Photo Part No Description Price (each) Stock
675000119 O-RING 68 x 187 Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
675000306 O.R. GASKET13,6x2,43 Enquire To Order
Photo Part No Description Price (each) Stock
670100149 SOUNDPROOFING ELEMENT Enquire To Order
670100150 SOUNDPROOFING ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
670039321 SOUNDPROOFING ELEMENT Enquire To Order
670039322 SOUNDPROOFING ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
675000315 NUT Enquire To Order
Photo Part No Description Price (each) Stock
244219 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14058421 NUT Enquire To Order
Photo Part No Description Price (each) Stock
673015590 ECV VALVE WITH SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
673009426 PLUG Enquire To Order
View All

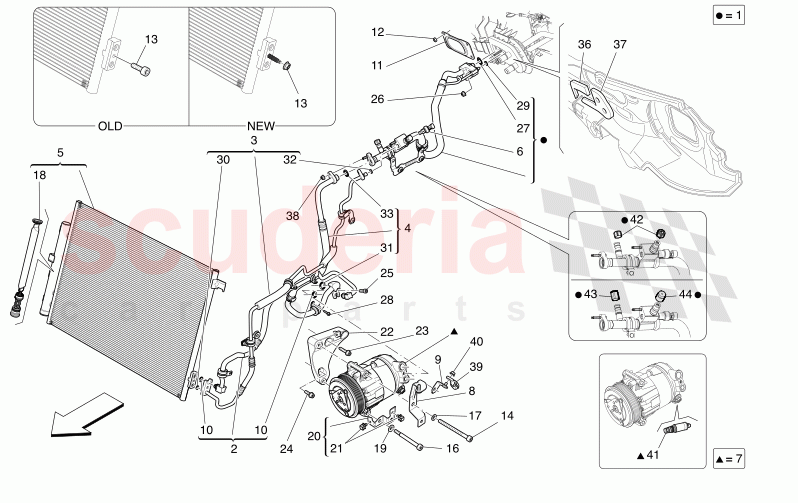

A/C UNIT: ENGINE COMPARTMENT DEVICES of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670038664
PIPE FROM EVAPOURATOR TO UNION
Not available with: FOUR-ZONE AUTOMATIC CLIMA; EU; 		- 1 Enquire
1 670002658
PIPE FROM EVAPOURATOR TO UNION
Bespoke Assembly Number 6035538 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA; UK; 		- 1 Enquire
2 670104909
PIPE A.C. - COMPRESSOR
Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		- 1 Enquire
3 670003216
PIPE BETWEEN CONDENSER AND JUNCTION 		- 1 Enquire
4 670104810
PIPE FROM COMPRESSOR TO UNION
Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		- 1 Enquire
5 670009820
AC CONDENSER
Bespoke Assembly Number 0 - 6108222; EU AU CN US CD UK JP JRH IN SA KO;
ARRIVING SOON 		- 1 Enquire
6 670038668
PRESSOSTAT
Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		- 1 Enquire
7 954108
AC COMPRESSOR 		- 1 Enquire
8 291575
BRACKET 		- 1 Enquire
9 299601
BRACKET 		- 1 Enquire
10 675000122
1/2" SEAL 		- 2 Enquire
11 670005087
PLUG
Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		- 1 Enquire
12 675000315
NUT 		- 4 Enquire
13 675000456
SCREWM8X25
IF THE SCREW IS STOCKED OUT, PLEASE ORDER THE NEW A/C CONDENSER PN 670296020, TOGETHER WITH THE FIXING NUT 675000328 x1; Bespoke Assembly Number 0 - 6108222; EU AU CN US CD UK JP JRH IN SA KO; 		- 1 Enquire
14 14307124
SCREWM8X90 		- 2 Enquire
16 246208
SCREWM8X90 		- 1 Enquire
17 670283669
ROOF UPHOLSTERY ASSEMBLY GRE 		- 2 Enquire
18 673000010
DEHYDRATOR FILTER KIT 		- 1 Enquire
19 11186374
WASHERD.10-20X2 		- 1 Enquire
20 320345
BRACKET ASSEMBLY 		- 1 Enquire
20 307939
BRACKET ASSEMBLY
Bespoke Engine Number 0 - 320345; 		- 1 Enquire
21 283287
CLIP 		- 2 Enquire
22 311689
SUPPORT 		- 1 Enquire
23 265097
SCREWM8X40 		- 2 Enquire
24 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		- 1 Enquire
25 675000249
SCREW 		- 1 Enquire
26 675000328
NUT 		- 1 Enquire
27 675000123
3/4" SEAL 		- 1 Enquire
28 675000314
SCREW 		- 1 Enquire
29 675000121
3/8" SEAL 		- 1 Enquire
30 675000121
3/8" SEAL 		- 1 Enquire
31 675000123
3/4" SEAL 		- 1 Enquire
32 675000119
O-RING 68 x 187
ARRIVING SOON 		- 1 Enquire
33 675000306
O.R. GASKET13,6x2,43 		- 1 Enquire
36 670100149
SOUNDPROOFING ELEMENT
EU CN US CD JP ME KO; 		- 1 Enquire
36 670100150
SOUNDPROOFING ELEMENT
AU UK JRH IN SA; 		- 1 Enquire
37 670039321
SOUNDPROOFING ELEMENT
EU CN US CD JP ME KO; 		- 1 Enquire
37 670039322
SOUNDPROOFING ELEMENT
AU UK JRH IN SA; 		- 1 Enquire
38 675000315
NUT 		- 2 Enquire
39 244219
CLIP 		- 1 Enquire
40 14058421
NUT 		- 1 Enquire
41 673015590
ECV VALVE WITH SEEGER RING 		- 1 Enquire
42 673009426
PLUG
EU UK; 		- 2 Enquire
