ENERGY GENERATION AND ACCUMULATION of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

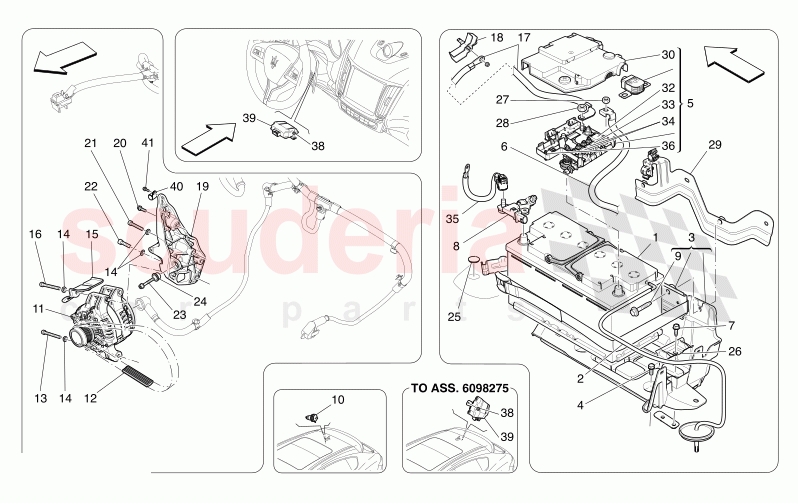

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - ENERGY GENERATION AND ACCUMULATION (08202)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675008317	95AH-800A BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670008109	BATTERY VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000297	BATTERY HOUSING ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000174	SCREWM8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670105054	BATTERY MULTI-FUNCTION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006554	ECU REAR BATTEY POSITIVE POLE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000088	SCREWM6X22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670221498	IBS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000214	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML971035CJ	HARNESS,DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303187	ALTERNATOR	Enquire	To Order
	811433	ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286570	ALTERNATOR DRIVING BELT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14359524	SCREWM8X80	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670283669	ROOF UPHOLSTERY ASSEMBLY GRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14359524	SCREWM8X80	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032363	BATTERY POSITIVE POLE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000578	SHUNT NODE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	788745	ALTERNATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREWM8X50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306524	SCREWM8X30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREWM6X45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248389	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000244	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000426	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000439	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000450	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031002	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000806	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673002762	MAXI FUSE 175A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673002763	MIDI FUSE 30A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673002764	MIDI FUSE 40A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670109171	BATTERY NEGATIVE POLE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003650	FUSE PULLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000095	NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000786	VOLTAGE STABILIZER	Enquire	To Order
	675000786	VOLTAGE STABILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291068	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREWM6X12	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	675008317	95AH-800A BATTERY	675008317 95AH-800A BATTERY	-	1	Enquire
2	670008109	BATTERY VENT PIPE	670008109 BATTERY VENT PIPE	-	1	Enquire
3	675000297	BATTERY HOUSING ASSEMBLY	675000297 BATTERY HOUSING ASSEMBLY	-	1	Enquire
4	675000174	SCREWM8	675000174 SCREWM8	-	4	Enquire
5	670105054	BATTERY MULTI-FUNCTION ECU	670105054 BATTERY MULTI-FUNCTION ECU Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
6	670006554	ECU REAR BATTEY POSITIVE POLE CABLE	670006554 ECU REAR BATTEY POSITIVE POLE CABLE	-	1	Enquire
7	675000088	SCREWM6X22	675000088 SCREWM6X22	-	1	Enquire
8	670221498	IBS SENSOR	670221498 IBS SENSOR Bespoke Assembly Number 6079467 - 99999999;	-	1	Enquire
9	675000214	SCREW	675000214 SCREW	-	2	Enquire
10	4ML971035CJ	HARNESS,DOOR	4ML971035CJ HARNESS,DOOR	-	1	Enquire
11	303187	ALTERNATOR	303187 ALTERNATOR	-	1	Enquire
11	811433	ALTERNATOR	811433 ALTERNATOR	-	1	Enquire
12	286570	ALTERNATOR DRIVING BELT ARRIVING SOON	286570 ALTERNATOR DRIVING BELT ARRIVING SOON	-	1	Enquire
13	14359524	SCREWM8X80	14359524 SCREWM8X80	-	1	Enquire
14	670283669	ROOF UPHOLSTERY ASSEMBLY GRE	670283669 ROOF UPHOLSTERY ASSEMBLY GRE	-	6	Enquire
16	14359524	SCREWM8X80	14359524 SCREWM8X80	-	2	Enquire
17	670032363	BATTERY POSITIVE POLE CABLE	670032363 BATTERY POSITIVE POLE CABLE	-	1	Enquire
18	675000578	SHUNT NODE	675000578 SHUNT NODE	-	1	Enquire
19	788745	ALTERNATOR SUPPORT	788745 ALTERNATOR SUPPORT Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
20	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM	-	1	Enquire
21	14306924	SCREWM8X50	14306924 SCREWM8X50	-	2	Enquire
22	14306524	SCREWM8X30	14306524 SCREWM8X30	-	1	Enquire
23	231624	SCREWM6X45	231624 SCREWM6X45	-	1	Enquire
24	248389	BUSHING	248389 BUSHING	-	1	Enquire
25	675000244	PLUG	675000244 PLUG	-	11	Enquire
26	675000426	BRACKET	675000426 BRACKET	-	1	Enquire
27	675000439	NUT	675000439 NUT	-	3	Enquire
28	675000450	NUT	675000450 NUT	-	1	Enquire
29	670031002	REAR BRACKET	670031002 REAR BRACKET	-	1	Enquire
30	675000806	COVER	675000806 COVER Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
32	673002762	MAXI FUSE 175A	673002762 MAXI FUSE 175A	-	1	Enquire
33	673002763	MIDI FUSE 30A	673002763 MIDI FUSE 30A	-	1	Enquire
34	673002764	MIDI FUSE 40A	673002764 MIDI FUSE 40A	-	2	Enquire
35	670109171	BATTERY NEGATIVE POLE CABLE	670109171 BATTERY NEGATIVE POLE CABLE Bespoke Assembly Number 6069008 - 99999999;	-	1	Enquire
36	673003650	FUSE PULLER	673003650 FUSE PULLER	-	1	Enquire
38	675000095	NUT M6	675000095 NUT M6	-	4	Enquire
39	675000786	VOLTAGE STABILIZER	675000786 VOLTAGE STABILIZER THE VEHICLE MAY NOT HAVE THE REAR VOLTAGE STABILIZER; Bespoke Assembly Number 6079471 - 6098274;	-	-	Enquire
39	675000786	VOLTAGE STABILIZER	675000786 VOLTAGE STABILIZER Bespoke Assembly Number 6098275 - 99999999;	-	1	Enquire
40	291068	BRACKET	291068 BRACKET	-	2	Enquire
41	233600	SCREWM6X12	233600 SCREWM6X12	-	2	Enquire
