EXTERNAL VEHICLE DEVICES of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

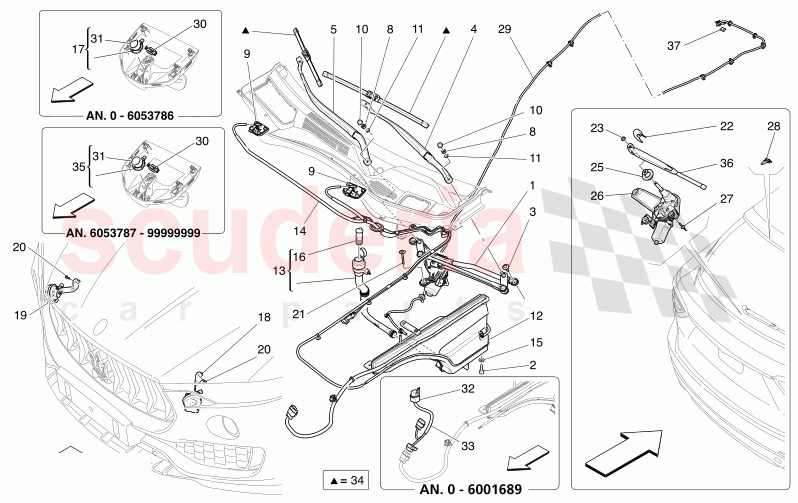

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - EXTERNAL VEHICLE DEVICES (08002)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670105773	WINDSCREEN WIPER SET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670030635	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005392	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670036681	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670036682	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000175	NUTM10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153497E	AXLE - FRONT	Enquire	To Order
	LR142553E	Differential - Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007188	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000176	WASHERD.10.5-21X1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034637	WINDSCREEN WASHER TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032344	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670037605	WINDSCREEN WASHER PIPE	Enquire	To Order
	670032342	WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670030893	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670222390	HIGH TONE HORN	Enquire	To Order
	670037596	HIGH TONE HORN	Enquire	To Order
	670037594	HIGH TONE HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670222389	DEEP TONE HORN	Enquire	To Order
	670037595	DEEP TONE HORN	Enquire	To Order
	670037593	DEEP TONE HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000433	SCREWM6X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005392	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670037445	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000582	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035110	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000620	REAR LIFTGATE WINDSCREEN WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000593	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000581	JET FOR WINDOW WASHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033525	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000651	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673016771	RAIN SENSOR GELPAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673013658	WIPER BLADES KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670310562	RAIN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670107927	REAR LIFTGATE WINDOW WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002230	RETAINING CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670105773	WINDSCREEN WIPER SET ASSEMBLY	670105773 WINDSCREEN WIPER SET ASSEMBLY Bespoke Assembly Number 6067134 - 99999999; AU UK JRH IN SA;	-	1	Enquire
2	670030635	SPECIAL SCREW	670030635 SPECIAL SCREW	-	3	Enquire
3	670005392	SCREW	670005392 SCREW	-	1	Enquire
4	670036681	DRIVER SIDE WINDSCREEN WIPER ARM	670036681 DRIVER SIDE WINDSCREEN WIPER ARM AU UK JRH IN SA;	-	1	Enquire
5	670036682	PASSENGER SIDE WINDSCREEN WIPER ARM	670036682 PASSENGER SIDE WINDSCREEN WIPER ARM AU UK JRH IN SA;	-	1	Enquire
8	675000175	NUTM10	675000175 NUTM10	-	2	Enquire
9	LR153497E	AXLE - FRONT	LR153497E AXLE - FRONT Not available with: HEATED WINDSHIELD WASHER NOZZLES;	-	2	Enquire
9	LR142553E	Differential - Front	LR142553E Differential - Front Available with: HEATED WINDSHIELD WASHER NOZZLES ;	-	2	Enquire
10	670007188	CAP	670007188 CAP	-	2	Enquire
11	675000176	WASHERD.10.5-21X1	675000176 WASHERD.10.5-21X1	-	2	Enquire
12	670034637	WINDSCREEN WASHER TANK	670034637 WINDSCREEN WASHER TANK Available with: FULL LED HEADLAMPS Not available with: BI-XENON HEADLAMPS FULL AFS, BI-XENON HEADLAMPS (NO AFS);	-	1	Enquire
13	670032344	PIPE	670032344 PIPE	-	1	Enquire
14	670037605	WINDSCREEN WASHER PIPE	670037605 WINDSCREEN WASHER PIPE Not available with: HEATED WINDSHIELD WASHER NOZZLES;	-	1	Enquire
14	670032342	WINDSCREEN WASHER PIPE	670032342 WINDSCREEN WASHER PIPE Available with: HEATED WINDSHIELD WASHER NOZZLES ;	-	1	Enquire
15	670030893	WASHER	670030893 WASHER	-	3	Enquire
18	670222390	HIGH TONE HORN	670222390 HIGH TONE HORN WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6106506 - 99999999; Available with: ELECTRONIC VEHICLE HORN ;	-	1	Enquire
18	670037596	HIGH TONE HORN	670037596 HIGH TONE HORN Not available with: ELECTRONIC VEHICLE HORN;	-	1	Enquire
18	670037594	HIGH TONE HORN	670037594 HIGH TONE HORN WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6106505; Available with: ELECTRONIC VEHICLE HORN ;	-	1	Enquire
19	670222389	DEEP TONE HORN	670222389 DEEP TONE HORN Available with: ELECTRONIC VEHICLE HORN ;	-	1	Enquire
19	670037595	DEEP TONE HORN	670037595 DEEP TONE HORN Not available with: ELECTRONIC VEHICLE HORN;	-	1	Enquire
19	670037593	DEEP TONE HORN	670037593 DEEP TONE HORN Bespoke Assembly Number 0 - 6106505; Available with: ELECTRONIC VEHICLE HORN ;	-	1	Enquire
20	675000433	SCREWM6X20	675000433 SCREWM6X20	-	2	Enquire
21	670005392	SCREW	670005392 SCREW	-	1	Enquire
22	670037445	CAP	670037445 CAP	-	1	Enquire
23	675000582	NUT	675000582 NUT	-	1	Enquire
25	670035110	GASKET	670035110 GASKET	-	1	Enquire
26	675000620	REAR LIFTGATE WINDSCREEN WIPER MOTOR	675000620 REAR LIFTGATE WINDSCREEN WIPER MOTOR	-	1	Enquire
27	675000593	RIVET	675000593 RIVET	-	3	Enquire
28	675000581	JET FOR WINDOW WASHING	675000581 JET FOR WINDOW WASHING	-	1	Enquire
29	670033525	HOSE	670033525 HOSE	-	1	Enquire
30	675000651	CLIP	675000651 CLIP	-	1	Enquire
31	673016771	RAIN SENSOR GELPAD	673016771 RAIN SENSOR GELPAD Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
34	673013658	WIPER BLADES KIT	673013658 WIPER BLADES KIT AU UK JRH IN SA;	-	1	Enquire
35	670310562	RAIN SENSOR	670310562 RAIN SENSOR Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
36	670107927	REAR LIFTGATE WINDOW WIPER ARM	670107927 REAR LIFTGATE WINDOW WIPER ARM	-	1	Enquire
37	675002230	RETAINING CLIP	675002230 RETAINING CLIP	-	3	Enquire
