CRANK MECHANISM of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP

View All

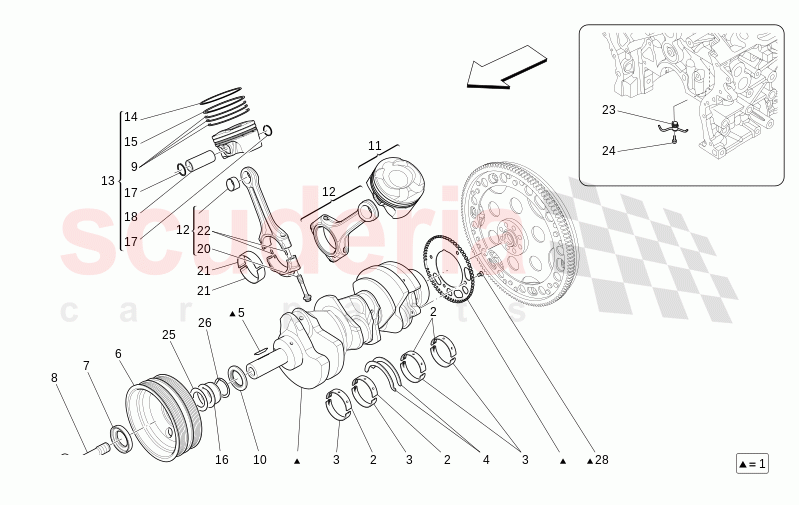

Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP - CRANK MECHANISM (01102)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	868821	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275617	UPPER HALF-BEARING	Enquire	To Order
	275618	UPPER HALF-BEARING	Enquire	To Order
	280323	UPPER HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275620	LOWER HALF-BEARING	Enquire	To Order
	275621	LOWER HALF-BEARING	Enquire	To Order

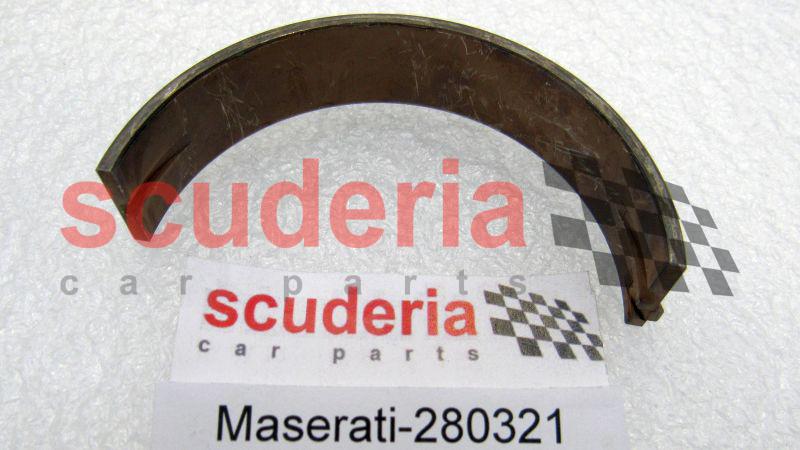

	280321	LOWER HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304033	SHIM WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279503	TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280609	TORSION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305711	WASHER	Enquire	To Order
	282723	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305704	SCREW FOR DAMPER FIXING	Enquire	To Order
	285058	SCREW FOR DAMPER FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287177	OIL SCRAPER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275339	GASKET, CRANK SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297172	LH SIDE ENGINE PISTON WITH RINGS	Enquire	To Order

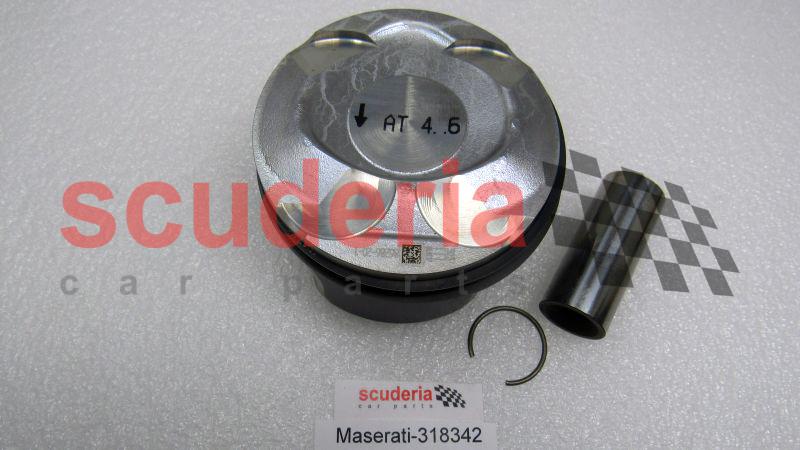

	318342	LH SIDE ENGINE PISTON WITH RINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308768	CONNECTING ROD SHAFT AND CAP ASSEMBLY	Enquire	To Order

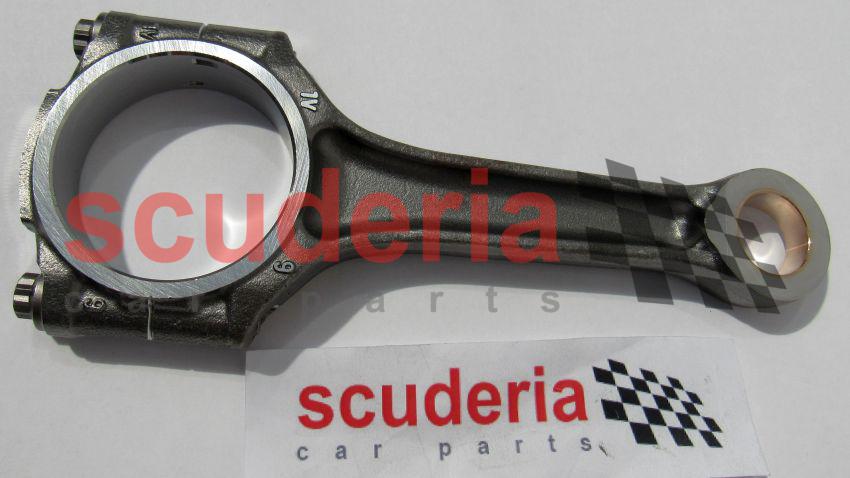

	326368	CONNECTING ROD SHAFT AND CAP ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297171	RH SIDE ENGINE PISTON WITH RINGS	Enquire	To Order

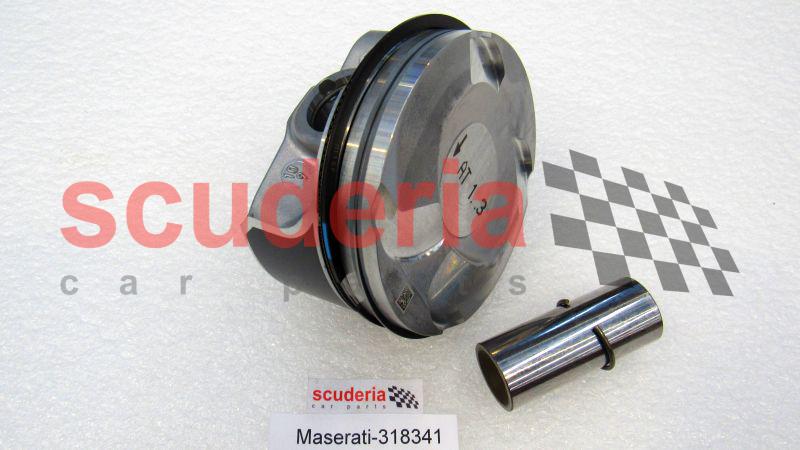

	318341	RH SIDE ENGINE PISTON WITH RINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286954	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296139	SEAL RING	Enquire	To Order
	299797	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282814	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270275	LOCK RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270274	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280576	CONNECTING ROD TIGHTENING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280325	CONNECTING ROD HALF-BEARING	Enquire	To Order

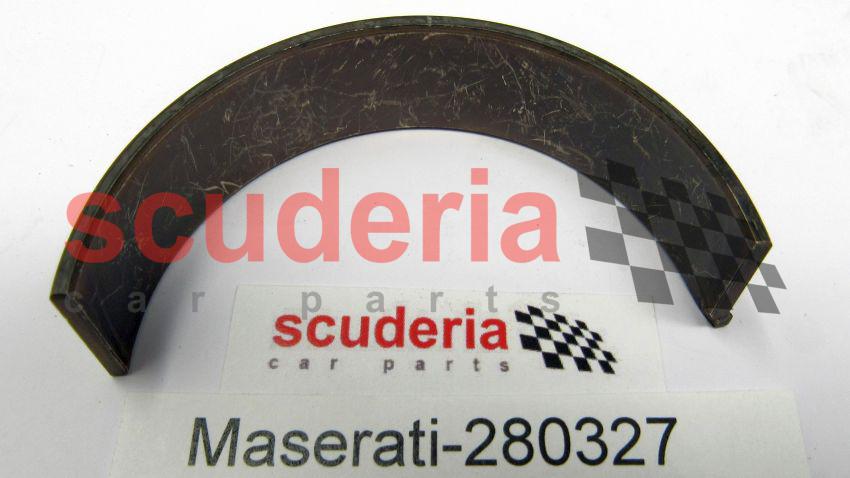

	280327	CONNECTING ROD HALF-BEARING	Enquire	To Order

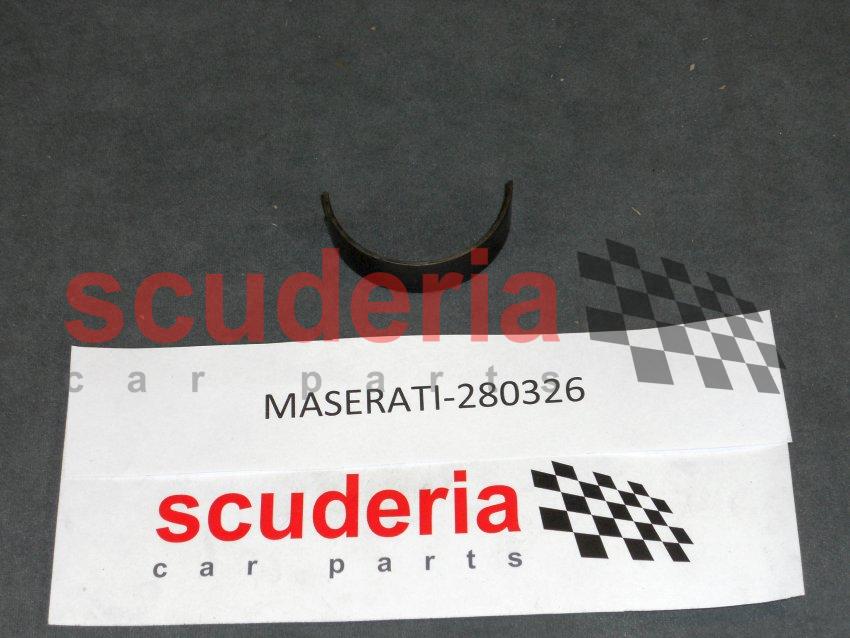

	280326	CONNECTING ROD HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283507	CENTRING PIN FOR CONNECTING RODS	Enquire	To Order
	292751	CENTRING PIN FOR CONNECTING RODS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303031	PISTONS COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294780	SCREWM5X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310101	DIAMOND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310102	DIAMOND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281836	SCREWM6X18	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	868821	CRANKSHAFT	868821 CRANKSHAFT	-	1	Enquire
2	275617	UPPER HALF-BEARING	275617 UPPER HALF-BEARING Blue;	-	4	Enquire
2	275618	UPPER HALF-BEARING	275618 UPPER HALF-BEARING Yellow;	-	4	Enquire
2	280323	UPPER HALF-BEARING	280323 UPPER HALF-BEARING Red;	-	4	Enquire
3	275620	LOWER HALF-BEARING	275620 LOWER HALF-BEARING Blue;	-	4	Enquire
3	275621	LOWER HALF-BEARING	275621 LOWER HALF-BEARING Yellow;	-	4	Enquire
3	280321	LOWER HALF-BEARING	280321 LOWER HALF-BEARING Red;	-	4	Enquire
4	304033	SHIM WASHER	304033 SHIM WASHER	-	2	Enquire
5	279503	TAB	279503 TAB	-	1	Enquire
6	280609	TORSION DAMPER	280609 TORSION DAMPER	-	1	Enquire
7	305711	WASHER	305711 WASHER Bespoke Engine Number 279678 - ZZZZZZZZ;	-	1	Enquire
7	282723	WASHER	282723 WASHER If not available, please order new parts 305704 and 305711; Bespoke Engine Number 0 - 279677;	-	1	Enquire
8	305704	SCREW FOR DAMPER FIXING	305704 SCREW FOR DAMPER FIXING	-	1	Enquire
8	285058	SCREW FOR DAMPER FIXING	285058 SCREW FOR DAMPER FIXING If not available, please order new parts 305704 and 305711; Bespoke Engine Number 0 - 279677;	-	1	Enquire
9	287177	OIL SCRAPER RING	287177 OIL SCRAPER RING	-	6	Enquire
10	275339	GASKET, CRANK SHAFT	275339 GASKET, CRANK SHAFT	-	1	Enquire
11	297172	LH SIDE ENGINE PISTON WITH RINGS	297172 LH SIDE ENGINE PISTON WITH RINGS	-	3	Enquire
11	318342	LH SIDE ENGINE PISTON WITH RINGS	318342 LH SIDE ENGINE PISTON WITH RINGS	-	3	Enquire
12	308768	CONNECTING ROD SHAFT AND CAP ASSEMBLY	308768 CONNECTING ROD SHAFT AND CAP ASSEMBLY Bespoke Engine Number 0 - 290346;	-	6	Enquire
12	326368	CONNECTING ROD SHAFT AND CAP ASSEMBLY	326368 CONNECTING ROD SHAFT AND CAP ASSEMBLY	-	6	Enquire
13	297171	RH SIDE ENGINE PISTON WITH RINGS	297171 RH SIDE ENGINE PISTON WITH RINGS	-	3	Enquire
13	318341	RH SIDE ENGINE PISTON WITH RINGS	318341 RH SIDE ENGINE PISTON WITH RINGS	-	3	Enquire
14	286954	SEAL RING	286954 SEAL RING 1st groove;	-	6	Enquire
15	296139	SEAL RING	296139 SEAL RING 2nd groove; Bespoke Engine Number 0 - 316067;	-	6	Enquire
15	299797	SEAL RING	299797 SEAL RING 2nd groove; Bespoke Engine Number 316068 - ZZZZZZZZ;	-	6	Enquire
16	282814	SPACER	282814 SPACER	-	1	Enquire
17	270275	LOCK RING	270275 LOCK RING	-	12	Enquire
18	270274	PIN	270274 PIN	-	6	Enquire
20	280576	CONNECTING ROD TIGHTENING SCREW	280576 CONNECTING ROD TIGHTENING SCREW	-	12	Enquire
21	280325	CONNECTING ROD HALF-BEARING	280325 CONNECTING ROD HALF-BEARING Pink;	-	12	Enquire
21	280327	CONNECTING ROD HALF-BEARING	280327 CONNECTING ROD HALF-BEARING Blue;	-	12	Enquire
21	280326	CONNECTING ROD HALF-BEARING	280326 CONNECTING ROD HALF-BEARING Red;	-	12	Enquire
22	283507	CENTRING PIN FOR CONNECTING RODS	283507 CENTRING PIN FOR CONNECTING RODS Bespoke Engine Number 0 - 290346;	-	12	Enquire
22	292751	CENTRING PIN FOR CONNECTING RODS	292751 CENTRING PIN FOR CONNECTING RODS Bespoke Engine Number 290347 - ZZZZZZZZ;	-	12	Enquire
23	303031	PISTONS COOLING NOZZLE	303031 PISTONS COOLING NOZZLE	-	3	Enquire
24	294780	SCREWM5X16	294780 SCREWM5X16	-	3	Enquire
25	310101	DIAMOND WASHER	310101 DIAMOND WASHER	-	1	Enquire
26	310102	DIAMOND WASHER	310102 DIAMOND WASHER	-	1	Enquire
28	281836	SCREWM6X18	281836 SCREWM6X18	-	4	Enquire
