REAR BUMPER of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV

View All

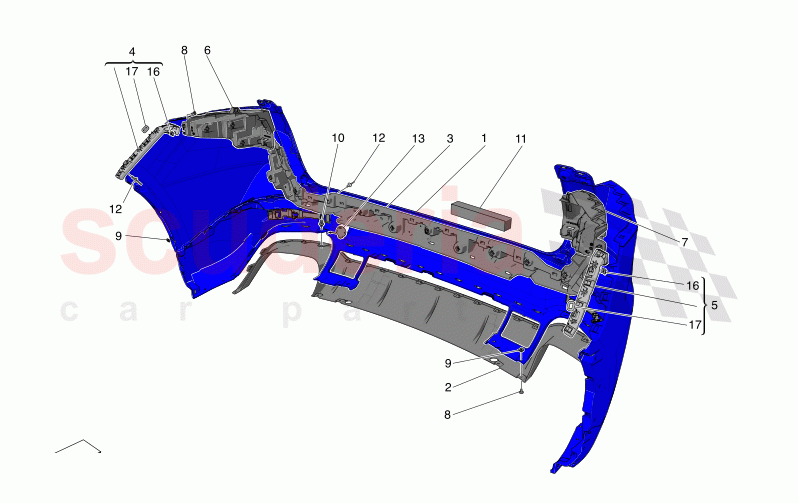

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV - REAR BUMPER (09111)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670120010	REAR BUMPER	Enquire	To Order
	670120009	REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	992079	FLESSIBILI RAFFR. SOSP. POST. DX	Enquire	To Order
	992070	TRAY DRAIN PIPE	Enquire	To Order
	992074	FLESSIBILI RAFFR. SOSP. POST. SX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157226	CENTRAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157267	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157266	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157222	RH SIDE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157223	LH SIDE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001390	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001674	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001608	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000635	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000323	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B863284	STORAGE COMPARTM.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002034	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000064	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670120010	REAR BUMPER	670120010 REAR BUMPER Available with: SURROUND VIEW CAMERA SYSTEM ;	-	1	Enquire
1	670120009	REAR BUMPER	670120009 REAR BUMPER Not available with: SURROUND VIEW CAMERA SYSTEM;	-	1	Enquire
2	992079	FLESSIBILI RAFFR. SOSP. POST. DX	992079 FLESSIBILI RAFFR. SOSP. POST. DX Not available with: FOOT SENSOR LIFTGATE, HOOK FOR TRAILER;	-	1	Enquire
2	992070	TRAY DRAIN PIPE	992070 TRAY DRAIN PIPE Available with: FOOT SENSOR LIFTGATE Not available with: HOOK FOR TRAILER;	-	1	Enquire
2	992074	FLESSIBILI RAFFR. SOSP. POST. SX	992074 FLESSIBILI RAFFR. SOSP. POST. SX WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2037684; Available with: HOOK FOR TRAILER Not available with: FOOT SENSOR LIFTGATE; EU AU CN UK JP ME JRH IN KO N0 N8;	-	1	Enquire
3	670157226	CENTRAL BRACKET	670157226 CENTRAL BRACKET	-	1	Enquire
4	670157267	RH BRACKET	670157267 RH BRACKET	-	1	Enquire
5	670157266	LH BRACKET	670157266 LH BRACKET	-	1	Enquire
6	670157222	RH SIDE BRACKET	670157222 RH SIDE BRACKET	-	1	Enquire
7	670157223	LH SIDE BRACKET	670157223 LH SIDE BRACKET	-	1	Enquire
8	675001390	SCREW	675001390 SCREW	-	14	Enquire
9	675001674	CLIP	675001674 CLIP	-	18	Enquire
10	675001608	FASTENER BUTTON	675001608 FASTENER BUTTON	-	2	Enquire
11	675000635	PAD	675000635 PAD	-	1	Enquire
12	675000323	RIVET	675000323 RIVET	-	25	Enquire
13	47B863284	STORAGE COMPARTM.	47B863284 STORAGE COMPARTM.	-	1	Enquire
16	675002034	CLIP	675002034 CLIP	-	2	Enquire
17	675000064	GASKET	675000064 GASKET	-	4	Enquire
