REAR DOORS: MECHANISMS of Maserati Maserati Grecale Folgore Automatic 4WD BEV 400 kW

View All

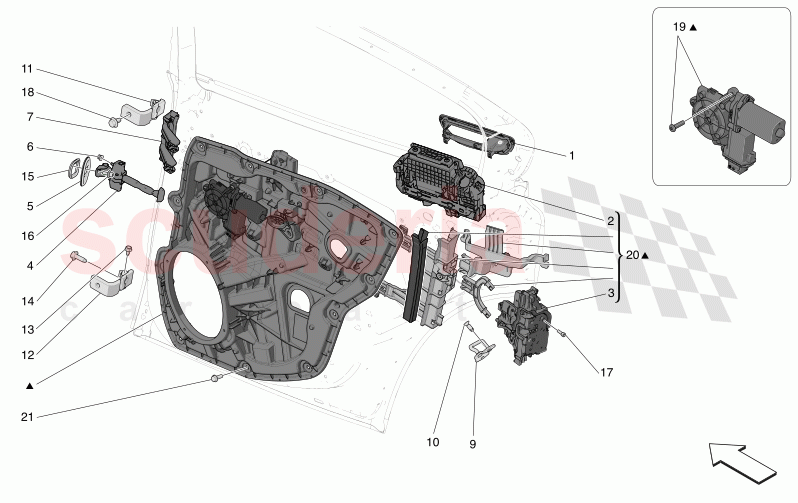

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - REAR DOORS: MECHANISMS (09331)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670137291	RH UPPER CENTRAL PILLAR COVER GUARD	Enquire	To Order
	673016029	CABLE CONNECTOR	Enquire	To Order
	673016029	CABLE CONNECTOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670157752	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	Enquire	To Order
	670157750	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157753	LH REAR DOOR LOCK	Enquire	To Order
	670157751	RH REAR DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157603	TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001583	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001318	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670212816	FRONT LH WINDOW RUN CHANNEL	Enquire	To Order
	670212815	FRONT RH WINDOW RUN CHANNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673014116	LH REAR DOOR CARRIER	Enquire	To Order
	673014115	RH REAR DOOR CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670175119	DOORS LOCK STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001811	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002137	LH UPPER HINGE	Enquire	To Order
	675002135	RH UPPER HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002138	LH LOWER HINGE	Enquire	To Order
	675002136	RH LOWER HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000005	SCREWM 8x15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000485	SCREWM10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001602	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006984	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001327	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670219402	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673014120	LH REAR GEARMOTOR KIT	Enquire	To Order
	673014119	RH REAR GEARMOTOR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673014118	LH REAR PRESENTER KIT	Enquire	To Order
	673014117	RH REAR PRESENTER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001669	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670137291	RH UPPER CENTRAL PILLAR COVER GUARD	670137291 RH UPPER CENTRAL PILLAR COVER GUARD WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: FUORISERIE DOOR HANDLES ;	-	1	Enquire
1	673016029	CABLE CONNECTOR	673016029 CABLE CONNECTOR WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Not available with: FUORISERIE DOOR HANDLES, PLANT SPECIFIC PAINT;	-	1	Enquire
1	673016029	CABLE CONNECTOR	673016029 CABLE CONNECTOR WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2037685 - 99999999; Available with: BODY COLOR KIT Not available with: FUORISERIE DOOR HANDLES;	-	1	Enquire
1	670151750	LH UPPER CENTRAL PILLAR COVER GUARD	670151750 LH UPPER CENTRAL PILLAR COVER GUARD WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: FUORISERIE DOOR HANDLES ;	-	1	Enquire
1	673016070	CABLE CONNECTOR	673016070 CABLE CONNECTOR WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Not available with: FUORISERIE DOOR HANDLES, PLANT SPECIFIC PAINT;	-	1	Enquire
1	673016070	CABLE CONNECTOR	673016070 CABLE CONNECTOR WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2037685 - 99999999; Available with: BODY COLOR KIT Not available with: FUORISERIE DOOR HANDLES, FINISHING GLOSSY BLACK;	-	1	Enquire
2	670157752	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	670157752 LH EXTERNAL DOOR HANDLE RETAINING BRACKET	-	1	Enquire
2	670157750	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	670157750 RH EXTERNAL DOOR HANDLE RETAINING BRACKET	-	1	Enquire
3	670157753	LH REAR DOOR LOCK	670157753 LH REAR DOOR LOCK	-	1	Enquire
3	670157751	RH REAR DOOR LOCK	670157751 RH REAR DOOR LOCK	-	1	Enquire
4	670157603	TIE ROD	670157603 TIE ROD	-	1	Enquire
5	675001583	GASKET	675001583 GASKET	-	1	Enquire
6	675001318	NUT	675001318 NUT	-	4	Enquire
7	670212816	FRONT LH WINDOW RUN CHANNEL	670212816 FRONT LH WINDOW RUN CHANNEL	-	1	Enquire
7	670212815	FRONT RH WINDOW RUN CHANNEL	670212815 FRONT RH WINDOW RUN CHANNEL	-	1	Enquire
8	673014116	LH REAR DOOR CARRIER	673014116 LH REAR DOOR CARRIER	-	1	Enquire
8	673014115	RH REAR DOOR CARRIER	673014115 RH REAR DOOR CARRIER	-	1	Enquire
9	670175119	DOORS LOCK STRIKER	670175119 DOORS LOCK STRIKER	-	2	Enquire
10	675001811	SCREW	675001811 SCREW	-	4	Enquire
11	675002137	LH UPPER HINGE	675002137 LH UPPER HINGE	-	1	Enquire
11	675002135	RH UPPER HINGE	675002135 RH UPPER HINGE	-	1	Enquire
12	675002138	LH LOWER HINGE	675002138 LH LOWER HINGE	-	1	Enquire
12	675002136	RH LOWER HINGE	675002136 RH LOWER HINGE	-	1	Enquire
13	675000005	SCREWM 8x15	675000005 SCREWM 8x15	-	4	Enquire
14	675000485	SCREWM10	675000485 SCREWM10	-	4	Enquire
15	675001602	GASKET	675001602 GASKET	-	2	Enquire
16	670006984	SCREW	670006984 SCREW	-	2	Enquire
17	675001327	SCREW	675001327 SCREW	-	6	Enquire
18	670219402	SCREW	670219402 SCREW	-	4	Enquire
19	673014120	LH REAR GEARMOTOR KIT	673014120 LH REAR GEARMOTOR KIT	-	1	Enquire
19	673014119	RH REAR GEARMOTOR KIT	673014119 RH REAR GEARMOTOR KIT	-	1	Enquire
20	673014118	LH REAR PRESENTER KIT	673014118 LH REAR PRESENTER KIT	-	1	Enquire
20	673014117	RH REAR PRESENTER KIT	673014117 RH REAR PRESENTER KIT	-	1	Enquire
21	675001669	SCREW	675001669 SCREW	-	24	Enquire
