HIGH VOLTAGE BATTERY of Maserati Maserati Grecale Folgore Automatic 4WD BEV 400 kW

View All

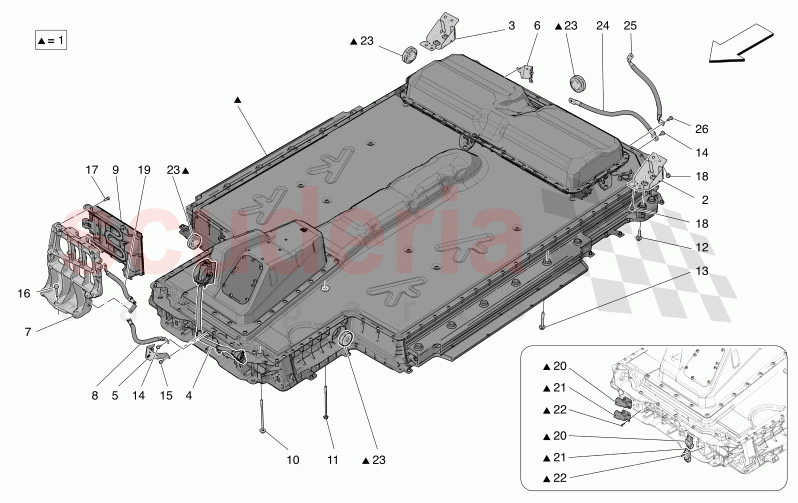

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - HIGH VOLTAGE BATTERY (08211)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670305213	HIGH VOLTAGE BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178609	LH FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178608	RH FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670299082	CONNECTING WIRE FROM BATTERY TO FRONT CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670179195	BATTERY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670179196	BATTERY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178689	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670177153	BATTERY GROUND LEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670299650	DC-DC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670214469	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670214471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670214470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002362	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000433	SCREWM6X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002382	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001384	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002383	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670295620	GROUND LEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121507A	COOLANT PIPE COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121235	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML853242BAXZ0	TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML601023AP	PA2 RIMS GALANTHUS 23" SHINY BLACK CAR S	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML853190AJ	TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670220690	BATTERY GROUND LEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121179	COLLEGAMENTO SENSOR ASSY REAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670305213	HIGH VOLTAGE BATTERY	670305213 HIGH VOLTAGE BATTERY EU AU US UK JP ME JRH IN KO market.abbr.T0 market.abbr.TX;	-	1	Enquire
2	670178609	LH FIXING BRACKET	670178609 LH FIXING BRACKET	-	1	Enquire
3	670178608	RH FIXING BRACKET	670178608 RH FIXING BRACKET	-	1	Enquire
4	670299082	CONNECTING WIRE FROM BATTERY TO FRONT CABLE	670299082 CONNECTING WIRE FROM BATTERY TO FRONT CABLE	-	1	Enquire
5	670179195	BATTERY BRACKET	670179195 BATTERY BRACKET	-	1	Enquire
6	670179196	BATTERY BRACKET	670179196 BATTERY BRACKET	-	1	Enquire
7	670178689	BRACKET	670178689 BRACKET	-	1	Enquire
8	670177153	BATTERY GROUND LEAD	670177153 BATTERY GROUND LEAD	-	1	Enquire
9	670299650	DC-DC CONVERTER	670299650 DC-DC CONVERTER EU AU US UK JP ME JRH IN KO;	-	1	Enquire
10	670214469	SCREW	670214469 SCREW	-	2	Enquire
11	670214471	SCREW	670214471 SCREW	-	4	Enquire
12	675001345	SCREW	675001345 SCREW	-	4	Enquire
13	670214470	SCREW	670214470 SCREW	-	12	Enquire
14	675002362	SCREW	675002362 SCREW	-	3	Enquire
15	675000433	SCREWM6X20	675000433 SCREWM6X20	-	6	Enquire
16	675002382	SCREW	675002382 SCREW	-	3	Enquire
17	675001384	SCREW	675001384 SCREW	-	4	Enquire
18	675002383	SCREW	675002383 SCREW	-	8	Enquire
19	670295620	GROUND LEAD	670295620 GROUND LEAD	-	1	Enquire
20	4LA121507A	COOLANT PIPE COOLANT PIPE	4LA121507A COOLANT PIPE COOLANT PIPE	-	2	Enquire
21	4LA121235	BRACKET	4LA121235 BRACKET	-	2	Enquire
22	4ML853242BAXZ0	TRIM	4ML853242BAXZ0 TRIM	-	16	Enquire
23	4ML601023AP	PA2 RIMS GALANTHUS 23" SHINY BLACK CAR S	4ML601023AP PA2 RIMS GALANTHUS 23" SHINY BLACK CAR S	-	4	Enquire
24	4ML853190AJ	TRIM	4ML853190AJ TRIM	-	1	Enquire
25	670220690	BATTERY GROUND LEAD	670220690 BATTERY GROUND LEAD	-	1	Enquire
26	4LA121179	COLLEGAMENTO SENSOR ASSY REAR	4LA121179 COLLEGAMENTO SENSOR ASSY REAR	-	2	Enquire
