FRONT BUMPER of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

View All

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - FRONT BUMPER (09102)

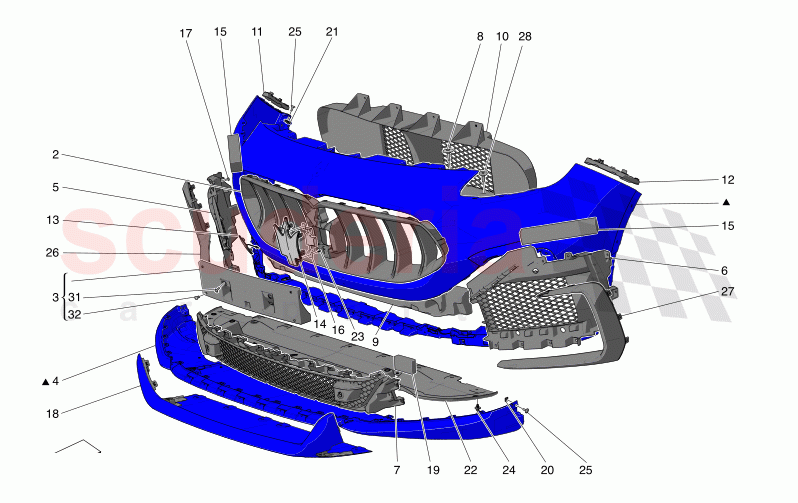

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670120014	FRONT BUMPER	Enquire	To Order
	476867477QXZ0	BACKREST RR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670297453	REAR WIRING HARNESS	Enquire	To Order
	670297459	REAR WIRING HARNESS	Enquire	To Order
	670297467	REAR WIRING HARNESS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670179484	LICENSE PLATE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3G5810773A	ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8V0809937A	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA809905	FUEL FILLER DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA201106A	FILLER NECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218092	DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157174	AIR DUCT	Enquire	To Order
	670309569	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157179	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157216	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML807482Y9B	DIFFUSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML8074823FZ	DIFFUSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000635	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174532	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001390	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	510810773B	ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670292889	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001674	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002035	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670120015	LOWER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001049	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000058	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001883	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA809906	FUEL FILLER DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA823728	SEAL ENGINE HOOD SECONDARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001884	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000326	SCREW M10 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001930	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670120014	FRONT BUMPER	670120014 FRONT BUMPER Bespoke Assembly Number 0 - 2037270; Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	1	Enquire
1	476867477QXZ0	BACKREST RR COVER	476867477QXZ0 BACKREST RR COVER Bespoke Assembly Number 2037271 - 99999999; Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	1	Enquire
2	670297453	REAR WIRING HARNESS	670297453 REAR WIRING HARNESS WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2039720; Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON Not available with: SURROUND VIEW CAMERA SYSTEM;	-	1	Enquire
2	670297459	REAR WIRING HARNESS	670297459 REAR WIRING HARNESS WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2039771; Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON, SURROUND VIEW CAMERA SYSTEM ;	-	1	Enquire
2	670297467	REAR WIRING HARNESS	670297467 REAR WIRING HARNESS WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2039721 - 99999999; Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON Not available with: SURROUND VIEW CAMERA SYSTEM;	-	1	Enquire
2	670297473	REAR WIRING HARNESS	670297473 REAR WIRING HARNESS WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2039772 - 99999999; Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON, SURROUND VIEW CAMERA SYSTEM ;	-	1	Enquire
3	670179484	LICENSE PLATE HOLDER	670179484 LICENSE PLATE HOLDER Not available with: ITALY FORMAT LICENSE PLATE; EU UK IN KO N0 N8;	-	1	Enquire
4	3G5810773A	ACTUATOR	3G5810773A ACTUATOR	-	1	Enquire
5	8V0809937A	HOSE	8V0809937A HOSE	-	1	Enquire
6	4LA809905	FUEL FILLER DOOR	4LA809905 FUEL FILLER DOOR	-	1	Enquire
7	4LA201106A	FILLER NECK	4LA201106A FILLER NECK	-	1	Enquire
8	675001651	SCREW	675001651 SCREW	-	8	Enquire
9	670218092	DAMPER	670218092 DAMPER	-	1	Enquire
10	670157174	AIR DUCT	670157174 AIR DUCT Bespoke Assembly Number 0 - 2032399;	-	1	Enquire
10	670309569	AIR DUCT	670309569 AIR DUCT Bespoke Assembly Number 2032400 - 99999999;	-	1	Enquire
11	670157179	RH BRACKET	670157179 RH BRACKET	-	1	Enquire
12	670157216	LH BRACKET	670157216 LH BRACKET	-	1	Enquire
13	4ML807482Y9B	DIFFUSER	4ML807482Y9B DIFFUSER Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	1	Enquire
14	4ML8074823FZ	DIFFUSER	4ML8074823FZ DIFFUSER	-	1	Enquire
15	675000635	PAD	675000635 PAD	-	2	Enquire
16	670174532	BRACKET	670174532 BRACKET	-	1	Enquire
17	675001390	SCREW	675001390 SCREW Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	44	Enquire
18	510810773B	ACTUATOR	510810773B ACTUATOR Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	1	Enquire
19	670292889	PAD	670292889 PAD	-	2	Enquire
20	675001674	CLIP	675001674 CLIP Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	10	Enquire
21	675002035	BRACKET	675002035 BRACKET Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	2	Enquire
22	670120015	LOWER TRIM	670120015 LOWER TRIM Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	1	Enquire
23	675001049	SCREW	675001049 SCREW Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	4	Enquire
24	675000058	FASTENER BUTTON	675000058 FASTENER BUTTON Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	16	Enquire
25	675001883	SCREW	675001883 SCREW Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	9	Enquire
26	4LA809906	FUEL FILLER DOOR	4LA809906 FUEL FILLER DOOR Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	1	Enquire
27	4LA823728	SEAL ENGINE HOOD SECONDARY	4LA823728 SEAL ENGINE HOOD SECONDARY Available with: TROFEO VERSION BODY COLOR KIT WITH CARBON ;	-	1	Enquire
28	675001884	SCREW	675001884 SCREW	-	4	Enquire
31	675000326	SCREW M10 X 16	675000326 SCREW M10 X 16	-	4	Enquire
32	675001930	SCREW	675001930 SCREW	-	4	Enquire
