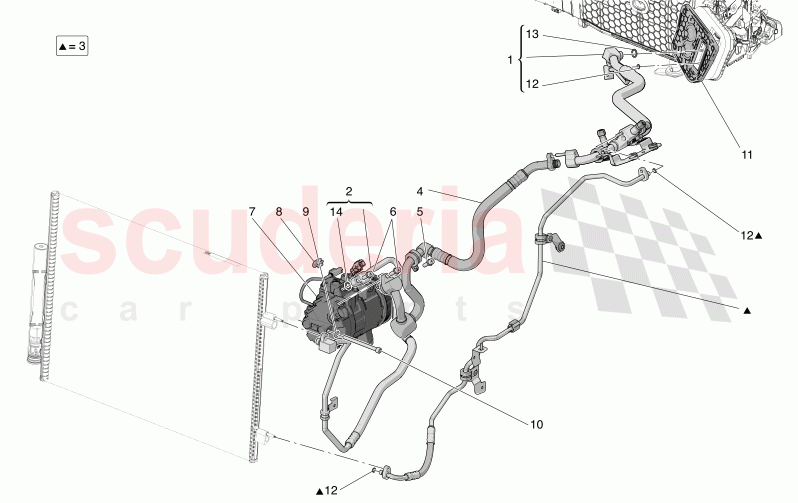

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675001557	PIPE FROM EVAPOURATOR TO UNION	Enquire	To Order
	675002234	PIPE FROM EVAPOURATOR TO UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002076	PIPE FROM COMPRESSOR TO CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001751	PIPE BETWEEN CONDENSER AND JUNCTION	Enquire	To Order
	675001512	PIPE BETWEEN CONDENSER AND JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156433	PIPE FROM UNION TO COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000104	SCREW M6 X 25MM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670051450	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002075	A.C. COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000355	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000690	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002081	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001734	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000119	O-RING 68 x 187	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000306	O.R. GASKET13,6x2,43	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001987	O.R. GASKET	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	675001557	PIPE FROM EVAPOURATOR TO UNION	675001557 PIPE FROM EVAPOURATOR TO UNION AU UK JRH IN N8;	-	1	Enquire
1	675002234	PIPE FROM EVAPOURATOR TO UNION	675002234 PIPE FROM EVAPOURATOR TO UNION EU US JP KO N0;	-	1	Enquire
2	675002076	PIPE FROM COMPRESSOR TO CONDENSER	675002076 PIPE FROM COMPRESSOR TO CONDENSER	-	1	Enquire
3	675001751	PIPE BETWEEN CONDENSER AND JUNCTION	675001751 PIPE BETWEEN CONDENSER AND JUNCTION AU UK JRH IN N8;	-	1	Enquire
3	675001512	PIPE BETWEEN CONDENSER AND JUNCTION	675001512 PIPE BETWEEN CONDENSER AND JUNCTION EU CN US JP ME KO N0;	-	1	Enquire
4	670156433	PIPE FROM UNION TO COMPRESSOR	670156433 PIPE FROM UNION TO COMPRESSOR	-	1	Enquire
5	675000104	SCREW M6 X 25MM IN STOCK	675000104 SCREW M6 X 25MM IN STOCK	-	1	Enquire
6	670051450	SCREW	670051450 SCREW	-	2	Enquire
7	675002075	A.C. COMPRESSOR	675002075 A.C. COMPRESSOR	-	1	Enquire
8	675000355	CLIP	675000355 CLIP	-	1	Enquire
9	675000690	WASHER	675000690 WASHER	-	3	Enquire
10	675002081	SCREW	675002081 SCREW	-	3	Enquire
11	675001734	GASKET	675001734 GASKET	-	1	Enquire
12	675000119	O-RING 68 x 187 IN STOCK	675000119 O-RING 68 x 187 IN STOCK	-	3	Enquire
13	675000306	O.R. GASKET13,6x2,43 IN STOCK	675000306 O.R. GASKET13,6x2,43 IN STOCK	-	3	Enquire
14	675001987	O.R. GASKET	675001987 O.R. GASKET	-	2	Enquire
