BRAKING DEVICES ON REAR WHEELS of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

View All

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - BRAKING DEVICES ON REAR WHEELS (04112)

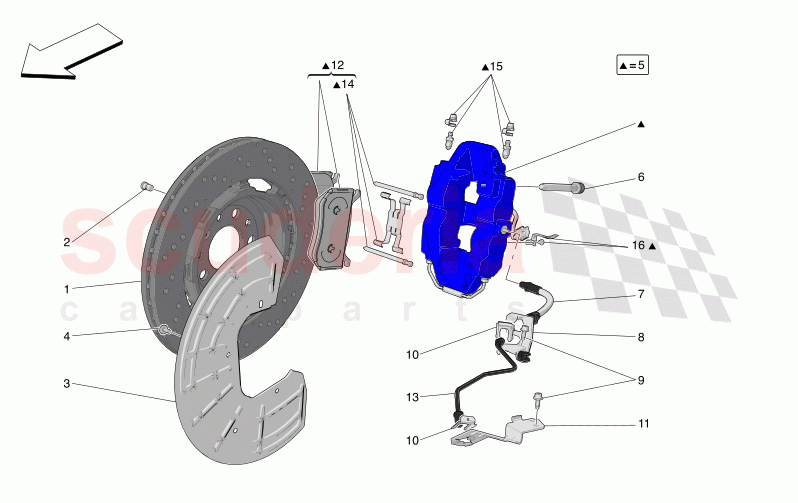

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675001455	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000081	SCREW M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001525	LH REAR BRAKE DISC SHIELD	Enquire	To Order
	675001524	RH. REAR BRAKE DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001032	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670219420	LH REAR CALIPER ASSEMBLY	Enquire	To Order
	670219421	LH REAR CALIPER ASSEMBLY	Enquire	To Order
	670219422	LH REAR CALIPER ASSEMBLY	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675001192	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156760	FLEXIBLE PIPE TO REAR CALIPERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001529	LH BRACKET	Enquire	To Order
	670292923	LH BRACKET	Enquire	To Order
	675001530	RH BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675001036	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000276	SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001527	LH BRACKET	Enquire	To Order
	675001526	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673012868	REAR PADS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001590	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	Enquire	To Order
	670292926	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	Enquire	To Order
	675001589	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673010932	SPRING AND PINS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010933	BLEEDER SCREW AND PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010936	LH BRACKET AND SCREW	Enquire	To Order
	673010935	RH BRACKET AND SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	675001455	REAR BRAKE DISC	675001455 REAR BRAKE DISC	-	2	Enquire
2	675000081	SCREW M10	675000081 SCREW M10	-	2	Enquire
3	675001525	LH REAR BRAKE DISC SHIELD	675001525 LH REAR BRAKE DISC SHIELD	-	1	Enquire
3	675001524	RH. REAR BRAKE DISC SHIELD	675001524 RH. REAR BRAKE DISC SHIELD	-	1	Enquire
4	675001032	SCREW	675001032 SCREW	-	6	Enquire
5	670219420	LH REAR CALIPER ASSEMBLY	670219420 LH REAR CALIPER ASSEMBLY Available with: BLACK BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670219421	LH REAR CALIPER ASSEMBLY	670219421 LH REAR CALIPER ASSEMBLY Available with: BRAKE CALIPERS LIGHT BLUE Not available with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670219422	LH REAR CALIPER ASSEMBLY	670219422 LH REAR CALIPER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2032179; Available with: YELLOW BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS;	-	1	Enquire
5	670219419	LH REAR CALIPER ASSEMBLY	670219419 LH REAR CALIPER ASSEMBLY Available with: RED BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673002330	COMPLETE R.H. SEAT BACK PANEL	673002330 COMPLETE R.H. SEAT BACK PANEL Available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME Not available with: STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673009585	COMPLETE R.H. SEAT BACK PANEL	673009585 COMPLETE R.H. SEAT BACK PANEL Available with: FUORISERIE - WHITE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	T673009585	COMPLETE R.H. SEAT BACK PANEL	T673009585 COMPLETE R.H. SEAT BACK PANEL Available with: FUORISERIE - ORANGE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670219423	RH REAR CALIPER ASSEMBLY	670219423 RH REAR CALIPER ASSEMBLY Available with: RED BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670219424	RH REAR CALIPER ASSEMBLY	670219424 RH REAR CALIPER ASSEMBLY Available with: BLACK BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670219425	RH REAR CALIPER ASSEMBLY	670219425 RH REAR CALIPER ASSEMBLY Available with: BRAKE CALIPERS LIGHT BLUE Not available with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670219426	RH REAR CALIPER ASSEMBLY	670219426 RH REAR CALIPER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2032179; Available with: YELLOW BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS;	-	1	Enquire
5	670242106	FRONT LH SEAT ASSEMBLY	670242106 FRONT LH SEAT ASSEMBLY Available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME Not available with: STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670242109	FRONT LH SEAT ASSEMBLY	670242109 FRONT LH SEAT ASSEMBLY Available with: FUORISERIE - WHITE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670242110	FRONT LH SEAT ASSEMBLY	670242110 FRONT LH SEAT ASSEMBLY Available with: FUORISERIE - ORANGE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670219422	LH REAR CALIPER ASSEMBLY	670219422 LH REAR CALIPER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: YELLOW BRAKE CALIPERS ;	-	1	Enquire
5	670219426	RH REAR CALIPER ASSEMBLY	670219426 RH REAR CALIPER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: YELLOW BRAKE CALIPERS ;	-	1	Enquire
6	675001192	SCREW	675001192 SCREW	-	4	Enquire
7	670156760	FLEXIBLE PIPE TO REAR CALIPERS	670156760 FLEXIBLE PIPE TO REAR CALIPERS	-	2	Enquire
8	675001529	LH BRACKET	675001529 LH BRACKET Not available with: AIR SUSPENSION WITH SKYHOOK;	-	1	Enquire
8	670292923	LH BRACKET	670292923 LH BRACKET Available with: AIR SUSPENSION WITH SKYHOOK ;	-	1	Enquire
8	675001530	RH BRACKET	675001530 RH BRACKET Not available with: AIR SUSPENSION WITH SKYHOOK;	-	1	Enquire
8	670292922	RH BRACKET	670292922 RH BRACKET Available with: AIR SUSPENSION WITH SKYHOOK ;	-	1	Enquire
9	675001036	SCREW	675001036 SCREW	-	8	Enquire
10	675000276	SPRING PLATE	675000276 SPRING PLATE	-	6	Enquire
11	675001527	LH BRACKET	675001527 LH BRACKET	-	1	Enquire
11	675001526	RH BRACKET	675001526 RH BRACKET	-	1	Enquire
12	673012868	REAR PADS KIT	673012868 REAR PADS KIT	-	1	Enquire
13	675001590	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	675001590 RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL Not available with: AIR SUSPENSION WITH SKYHOOK;	-	1	Enquire
13	670292926	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	670292926 RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL Available with: AIR SUSPENSION WITH SKYHOOK ;	-	1	Enquire
13	675001589	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	675001589 RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL Not available with: AIR SUSPENSION WITH SKYHOOK;	-	1	Enquire
13	670292927	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	670292927 RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL Available with: AIR SUSPENSION WITH SKYHOOK ;	-	1	Enquire
14	673010932	SPRING AND PINS KIT	673010932 SPRING AND PINS KIT	-	2	Enquire
15	673010933	BLEEDER SCREW AND PLUG	673010933 BLEEDER SCREW AND PLUG	-	4	Enquire
16	673010936	LH BRACKET AND SCREW	673010936 LH BRACKET AND SCREW	-	1	Enquire
16	673010935	RH BRACKET AND SCREW	673010935 RH BRACKET AND SCREW	-	1	Enquire
