COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

View All

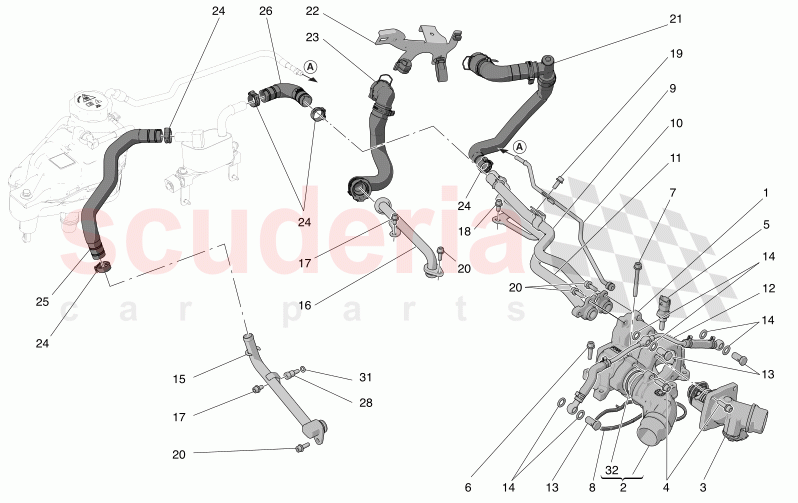

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - COOLING SYSTEM: NOURICE AND LINES (01715)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670051609	THERMOSTAT ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051295	WATER INLET DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052360	THERMOPRESSOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051108	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005736	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051109	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051115	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050241	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052358	WATER RETURN PIPE FROM GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052391	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052357	FILLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053788	HEAD WATER BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001418	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001419	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051061	HOSE FOR ADDITIONAL WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050368	SECONDARY WATER DELIVERY AND RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051103	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051104	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051105	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051106	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156378	WATER RETURN SLEEVE FROM HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001735	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156377	HEATER WATER DELIVERY SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000388	COLLAR	Enquire	To Order
	675000372	COLLARD.20,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670296213	WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001746	WATER RETURN PIPE FROM OIL EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050437	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670293099	EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001958	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670051609	THERMOSTAT ASSEMBLY	670051609 THERMOSTAT ASSEMBLY	-	1	Enquire
2	670051295	WATER INLET DUCT	670051295 WATER INLET DUCT	-	1	Enquire
3	670052360	THERMOPRESSOSTAT	670052360 THERMOPRESSOSTAT	-	1	Enquire
4	670051108	SCREW	670051108 SCREW	-	6	Enquire
5	670005736	TEMPERATURE SENSOR	670005736 TEMPERATURE SENSOR	-	1	Enquire
6	670051109	SCREW	670051109 SCREW	-	5	Enquire
7	670051115	SCREW	670051115 SCREW	-	1	Enquire
8	670050241	GASKET	670050241 GASKET	-	1	Enquire
9	670052358	WATER RETURN PIPE FROM GEARBOX	670052358 WATER RETURN PIPE FROM GEARBOX	-	1	Enquire
10	670052391	VENT PIPE	670052391 VENT PIPE	-	1	Enquire
11	670052357	FILLING PIPE	670052357 FILLING PIPE	-	1	Enquire
12	670053788	HEAD WATER BREATHER PIPE	670053788 HEAD WATER BREATHER PIPE	-	1	Enquire
13	675001418	UNION	675001418 UNION	-	3	Enquire
14	675001419	GASKET	675001419 GASKET	-	6	Enquire
15	670051061	HOSE FOR ADDITIONAL WATER RADIATOR	670051061 HOSE FOR ADDITIONAL WATER RADIATOR	-	1	Enquire
16	670050368	SECONDARY WATER DELIVERY AND RETURN PIPE	670050368 SECONDARY WATER DELIVERY AND RETURN PIPE	-	1	Enquire
17	670051103	SCREW	670051103 SCREW	-	2	Enquire
18	670051104	SCREW	670051104 SCREW	-	2	Enquire
19	670051105	SCREW	670051105 SCREW	-	1	Enquire
20	670051106	SCREW	670051106 SCREW	-	3	Enquire
21	670156378	WATER RETURN SLEEVE FROM HEATER	670156378 WATER RETURN SLEEVE FROM HEATER	-	1	Enquire
22	675001735	BRACKET	675001735 BRACKET	-	1	Enquire
23	670156377	HEATER WATER DELIVERY SLEEVE	670156377 HEATER WATER DELIVERY SLEEVE	-	1	Enquire
24	675000388	COLLAR	675000388 COLLAR	-	5	Enquire
24	675000372	COLLARD.20,5	675000372 COLLARD.20,5	-	5	Enquire
25	670296213	WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER	670296213 WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER	-	1	Enquire
26	675001746	WATER RETURN PIPE FROM OIL EXCHANGER	675001746 WATER RETURN PIPE FROM OIL EXCHANGER	-	1	Enquire
28	670050437	SCREW	670050437 SCREW	-	1	Enquire
31	670293099	EXPANSION TANK	670293099 EXPANSION TANK	-	1	Enquire
32	675001958	GASKET	675001958 GASKET	-	1	Enquire
