Cooling: Air Radiators And Ducts

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 0170

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - COOLING: AIR RADIATORS AND DUCTS (01702)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001944 WATER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
675002060 LH BRACKET FOR UPPER FIXING WATER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
675002059 RH BRACKET FOR UPPER FIXING WATER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
675001933 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675002068 LOWER COVER Enquire To Order
Photo Part No Description Price (each) Stock
675002069 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001945 SECONDARY WATER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
670156442 CPL AIR SHUTTER Enquire To Order
Photo Part No Description Price (each) Stock
675001981 OIL RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
675001567 LH BRACKET Enquire To Order
675001566 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675000969 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675001063 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675001053 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001119 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001449 A.C CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
675001040 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
675001213 FAN Enquire To Order
Photo Part No Description Price (each) Stock
675002111 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675002112 LH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675001912 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
675002067 STUD Enquire To Order
Photo Part No Description Price (each) Stock
675001924 COLLAR Enquire To Order
View All

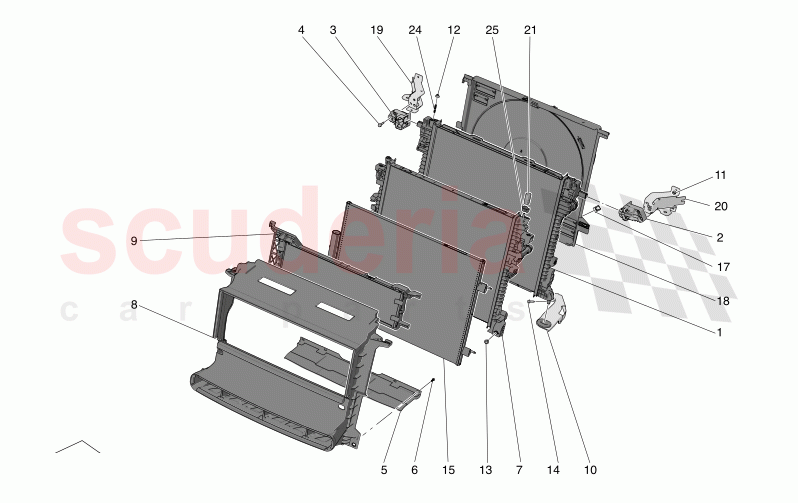

COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001944
WATER RADIATOR 		- 1 Enquire
2 675002060
LH BRACKET FOR UPPER FIXING WATER RADIATOR 		- 1 Enquire
3 675002059
RH BRACKET FOR UPPER FIXING WATER RADIATOR 		- 1 Enquire
4 675001933
SCREW 		- 4 Enquire
5 675002068
LOWER COVER 		- 1 Enquire
6 675002069
SCREW 		- 1 Enquire
7 675001945
SECONDARY WATER RADIATOR 		- 1 Enquire
8 670156442
CPL AIR SHUTTER 		- 1 Enquire
9 675001981
OIL RADIATOR 		- 1 Enquire
10 675001567
LH BRACKET 		- 1 Enquire
10 675001566
RH BRACKET 		- 1 Enquire
11 675000969
NUT 		- 6 Enquire
12 675001063
NUT 		- 2 Enquire
13 675001053
SCREW 		- 2 Enquire
14 675001119
SCREW 		- 4 Enquire
15 675001449
A.C CONDENSER 		- 1 Enquire
17 675001040
PLATE 		- 1 Enquire
18 675001213
FAN 		- 1 Enquire
19 675002111
RH BRACKET 		- 1 Enquire
20 675002112
LH BRACKET 		- 1 Enquire
21 675001912
PLUG 		- 1 Enquire
24 675002067
STUD 		- 2 Enquire
25 675001924
COLLAR 		- 1 Enquire
