Lubrication System: Circuit And Collection

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 0160

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - LUBRICATION SYSTEM: CIRCUIT AND COLLECTION (01602)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670051742 OIL SUMP ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
670051296 OIL SUMP GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670050350 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
670050349 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670053268 OIL LEVEL DETECTOR Enquire To Order
Photo Part No Description Price (each) Stock
670051108 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670051117 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670051108 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670053217 OIL CAP EXTENSION Enquire To Order
Photo Part No Description Price (each) Stock
670051104 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670050051 ENGINE OIL FILLER CAP Enquire To Order
Photo Part No Description Price (each) Stock
670053218 DIPSTICK Enquire To Order
Photo Part No Description Price (each) Stock
670054294 OIL DIPSTICK HOLDER EXTENSION Enquire To Order
Photo Part No Description Price (each) Stock
14457881 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
673013792 O.R. GASKET Enquire To Order
View All

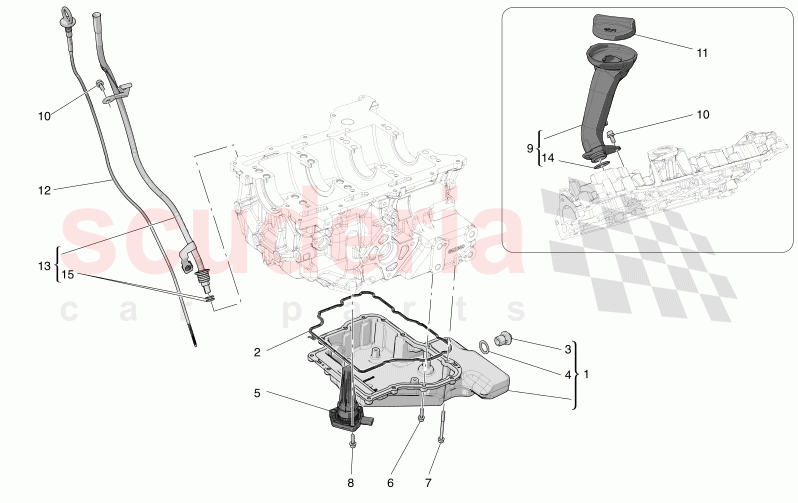

LUBRICATION SYSTEM: CIRCUIT AND COLLECTION of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670051742
OIL SUMP ASSEMBLY 		- 1 Enquire
2 670051296
OIL SUMP GASKET 		- 1 Enquire
3 670050350
PLUG 		- 1 Enquire
4 670050349
GASKET 		- 1 Enquire
5 670053268
OIL LEVEL DETECTOR 		- 1 Enquire
6 670051108
SCREW 		- 12 Enquire
7 670051117
SCREW 		- 1 Enquire
8 670051108
SCREW 		- 3 Enquire
9 670053217
OIL CAP EXTENSION 		- 1 Enquire
10 670051104
SCREW 		- 3 Enquire
11 670050051
ENGINE OIL FILLER CAP 		- 1 Enquire
12 670053218
DIPSTICK 		- 1 Enquire
13 670054294
OIL DIPSTICK HOLDER EXTENSION 		- 1 Enquire
14 14457881
GASKET 		- 1 Enquire
15 673013792
O.R. GASKET 		- 2 Enquire
