FRONT SUSPENSION of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV

View All

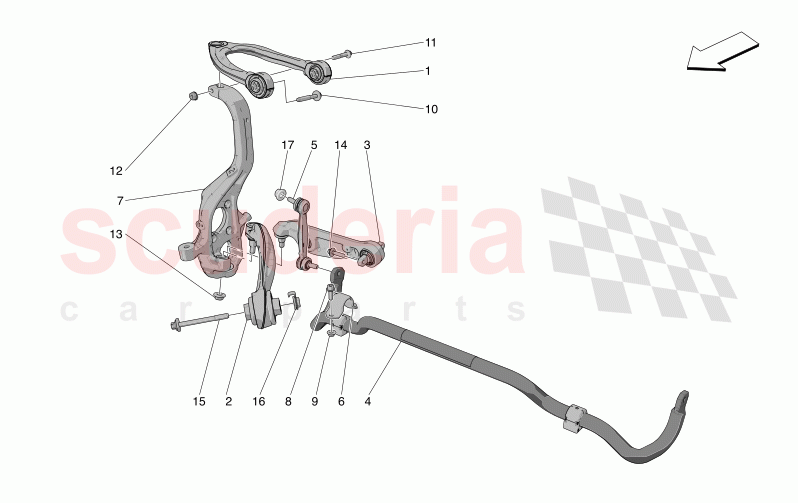

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV - FRONT SUSPENSION (06101)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675001807	LH FRONT UPPER LEVER ASSEMBLY	Enquire	To Order
	675001806	RH FRONT UPPER LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002410	LH FRONT SWINGING ARM	Enquire	To Order
	675002409	RH FRONT SWINGING ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001697	LH AXLE ROD	Enquire	To Order
	675001699	RH AXLE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218793	FRONT STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670305712	LINK STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001071	U-BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178216	LH FRONT HUB HOLDER	Enquire	To Order
	670178217	RH FRONT HUB HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001015	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001509	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001504	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001505	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000608	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001188	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001195	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001832	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001189	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	675001807	LH FRONT UPPER LEVER ASSEMBLY	675001807 LH FRONT UPPER LEVER ASSEMBLY	-	1	Enquire
1	675001806	RH FRONT UPPER LEVER	675001806 RH FRONT UPPER LEVER	-	1	Enquire
2	675002410	LH FRONT SWINGING ARM	675002410 LH FRONT SWINGING ARM Not available with: AWD DISCONNECT;	-	1	Enquire
2	675002409	RH FRONT SWINGING ARM	675002409 RH FRONT SWINGING ARM Not available with: AWD DISCONNECT;	-	1	Enquire
3	675001697	LH AXLE ROD	675001697 LH AXLE ROD	-	1	Enquire
3	675001699	RH AXLE ROD	675001699 RH AXLE ROD	-	1	Enquire
4	670218793	FRONT STABILIZER BAR	670218793 FRONT STABILIZER BAR	-	1	Enquire
5	670305712	LINK STABILIZER BAR	670305712 LINK STABILIZER BAR IT IS MANDATORY TO HAVE BOTH LINKS IN ALUMINUM OR BOTH IN STEEL; Bespoke Assembly Number 2036779 - 99999999; Not available with: AWD DISCONNECT;	-	2	Enquire
6	675001071	U-BOLT	675001071 U-BOLT	-	2	Enquire
7	670178216	LH FRONT HUB HOLDER	670178216 LH FRONT HUB HOLDER Not available with: AWD DISCONNECT;	-	1	Enquire
7	670178217	RH FRONT HUB HOLDER	670178217 RH FRONT HUB HOLDER Not available with: AWD DISCONNECT;	-	1	Enquire
8	675001015	SCREW	675001015 SCREW	-	4	Enquire
9	675001509	NUT	675001509 NUT	-	4	Enquire
10	675001504	SCREW	675001504 SCREW	-	4	Enquire
11	675001505	SCREW	675001505 SCREW	-	2	Enquire
12	675000608	NUT	675000608 NUT	-	2	Enquire
13	675001188	NUT	675001188 NUT	-	4	Enquire
14	675001345	SCREW	675001345 SCREW	-	4	Enquire
15	675001195	SCREW	675001195 SCREW	-	2	Enquire
16	675001832	NUT	675001832 NUT	-	2	Enquire
17	675001189	NUT	675001189 NUT	-	1	Enquire
