ENERGY GENERATION AND ACCUMULATION of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

View All

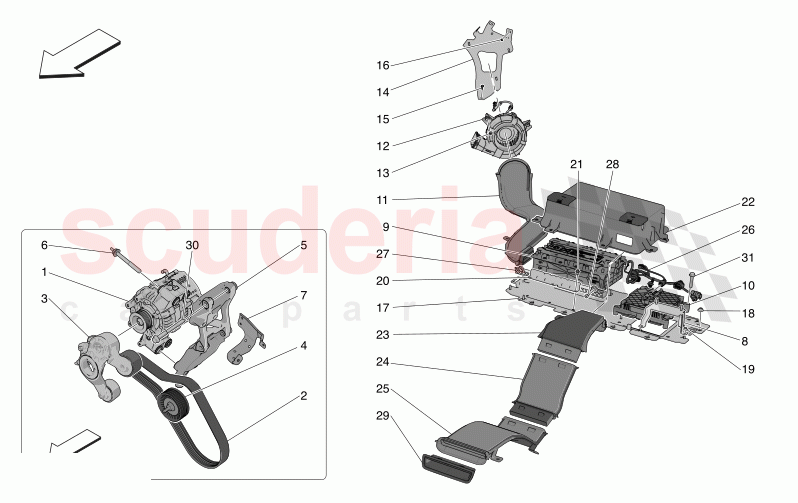

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - ENERGY GENERATION AND ACCUMULATION (08202)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670219336	ELECTRIC MOTOR-GENERATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML853189BP	TRIM DEKOR CARBON MATT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670054306	BELT TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053819	BELT TIGHTENING PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670154512	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670175070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670154513	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173413	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670162269	48V BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670154698	CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159734	VENTILATION SHAFT CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156431	FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001307	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172812	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000621	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000969	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172823	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002158	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000181	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157161	BATTERY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000662	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158146	BATTERY COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670177873	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172664	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159733	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670216009	CONNECTING CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158538	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670216810	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML853189BQ	TRIM DEKOR CARBON MATT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173139	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001125	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670219336	ELECTRIC MOTOR-GENERATOR	670219336 ELECTRIC MOTOR-GENERATOR	-	1	Enquire
2	4ML853189BP	TRIM DEKOR CARBON MATT	4ML853189BP TRIM DEKOR CARBON MATT	-	1	Enquire
3	670054306	BELT TENSIONER	670054306 BELT TENSIONER	-	1	Enquire
4	670053819	BELT TIGHTENING PULLEY	670053819 BELT TIGHTENING PULLEY	-	1	Enquire
5	670154512	BRACKET	670154512 BRACKET	-	1	Enquire
6	670175070	SCREW	670175070 SCREW	-	4	Enquire
7	670154513	BRACKET	670154513 BRACKET	-	1	Enquire
8	670173413	BRACKET	670173413 BRACKET	-	1	Enquire
9	670162269	48V BATTERY	670162269 48V BATTERY EU AU CN UK JP ME JRH IN KO;	-	1	Enquire
10	670154698	CONVERTER	670154698 CONVERTER	-	1	Enquire
11	670159734	VENTILATION SHAFT CONNECTION	670159734 VENTILATION SHAFT CONNECTION	-	1	Enquire
12	670156431	FAN	670156431 FAN	-	1	Enquire
13	675001307	NUT	675001307 NUT	-	3	Enquire
14	670172812	BRACKET	670172812 BRACKET	-	1	Enquire
15	675000621	SCREW	675000621 SCREW	-	2	Enquire
16	675000969	NUT	675000969 NUT	-	3	Enquire
17	670172823	BRACKET	670172823 BRACKET	-	1	Enquire
18	675002158	NUT	675002158 NUT	-	6	Enquire
19	675000181	NUT	675000181 NUT	-	3	Enquire
20	670157161	BATTERY BRACKET	670157161 BATTERY BRACKET	-	2	Enquire
21	675000662	SCREW	675000662 SCREW	-	6	Enquire
22	670158146	BATTERY COVER	670158146 BATTERY COVER	-	1	Enquire
23	670177873	AIR DUCT	670177873 AIR DUCT	-	1	Enquire
24	670172664	AIR DUCT	670172664 AIR DUCT	-	1	Enquire
25	670159733	AIR DUCT	670159733 AIR DUCT	-	1	Enquire
26	670216009	CONNECTING CABLE	670216009 CONNECTING CABLE	-	1	Enquire
27	670158538	SPACER	670158538 SPACER	-	2	Enquire
28	670216810	SCREW	670216810 SCREW	-	4	Enquire
29	4ML853189BQ	TRIM DEKOR CARBON MATT	4ML853189BQ TRIM DEKOR CARBON MATT	-	1	Enquire
30	670173139	SCREW	670173139 SCREW	-	2	Enquire
31	675001125	SCREW	675001125 SCREW	-	4	Enquire
