Cooling: Air Radiators And Ducts

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

Illustration Number: 0170

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - COOLING: AIR RADIATORS AND DUCTS (01701)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001943 WATER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
675002060 LH BRACKET FOR UPPER FIXING WATER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
675002059 RH BRACKET FOR UPPER FIXING WATER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
675001933 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675002068 LOWER COVER Enquire To Order
Photo Part No Description Price (each) Stock
675002069 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001945 SECONDARY WATER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
670181751 CPL AIR SHUTTER Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
670161225 OIL RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
675001562 LH BRACKET Enquire To Order
675001561 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675001063 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675001053 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001119 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001449 A.C CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
675001040 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
675001942 FAN Enquire To Order
Photo Part No Description Price (each) Stock
670218079 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675002110 LH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675001070 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001452 DRAIN VALVE Enquire To Order
Photo Part No Description Price (each) Stock
675001610 WIRE COVER Enquire To Order
Photo Part No Description Price (each) Stock
675002067 STUD Enquire To Order
Photo Part No Description Price (each) Stock
675002070 GUIDE CABLE Enquire To Order
Photo Part No Description Price (each) Stock
675002071 RIVET Enquire To Order
View All

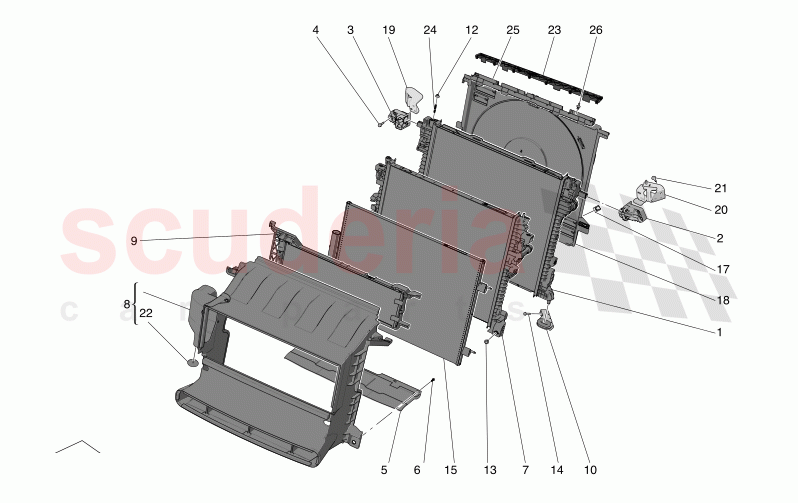

COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001943
WATER RADIATOR 		- 1 Enquire
2 675002060
LH BRACKET FOR UPPER FIXING WATER RADIATOR 		- 1 Enquire
3 675002059
RH BRACKET FOR UPPER FIXING WATER RADIATOR 		- 1 Enquire
4 675001933
SCREW 		- 4 Enquire
5 675002068
LOWER COVER 		- 1 Enquire
6 675002069
SCREW 		- 4 Enquire
7 675001945
SECONDARY WATER RADIATOR 		- 1 Enquire
8 670181751
CPL AIR SHUTTER
ARRIVING SOON 		- 1 Enquire
9 670161225
OIL RADIATOR 		- 1 Enquire
10 675001562
LH BRACKET 		- 1 Enquire
10 675001561
RH BRACKET 		- 1 Enquire
12 675001063
NUT 		- 2 Enquire
13 675001053
SCREW 		- 2 Enquire
14 675001119
SCREW 		- 4 Enquire
15 675001449
A.C CONDENSER 		- 1 Enquire
17 675001040
PLATE 		- 1 Enquire
18 675001942
FAN 		- 1 Enquire
19 670218079
RH BRACKET 		- 1 Enquire
20 675002110
LH BRACKET 		- 1 Enquire
21 675001070
SCREW 		- 6 Enquire
22 675001452
DRAIN VALVE 		- 1 Enquire
23 675001610
WIRE COVER 		- 1 Enquire
24 675002067
STUD 		- 2 Enquire
25 675002070
GUIDE CABLE 		- 1 Enquire
26 675002071
RIVET 		- 2 Enquire
