Fuel Vapour Recirculation System

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

Illustration Number: 0144

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - FUEL VAPOUR RECIRCULATION SYSTEM (01441)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001694 FUEL VAPOUR FILTER Enquire To Order
Photo Part No Description Price (each) Stock
675001063 NUT Enquire To Order
Photo Part No Description Price (each) Stock
670160939 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR Enquire To Order
Photo Part No Description Price (each) Stock
675001782 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
670160941 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
675001672 VENT PIPE Enquire To Order
Photo Part No Description Price (each) Stock
675001783 RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
675001784 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670156367 TUBE FUEL VAPOR Enquire To Order
Photo Part No Description Price (each) Stock
675000977 BLEED VALVE Enquire To Order
Photo Part No Description Price (each) Stock
670156722 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
675000981 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
675000982 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
675001802 CLIP Enquire To Order
View All

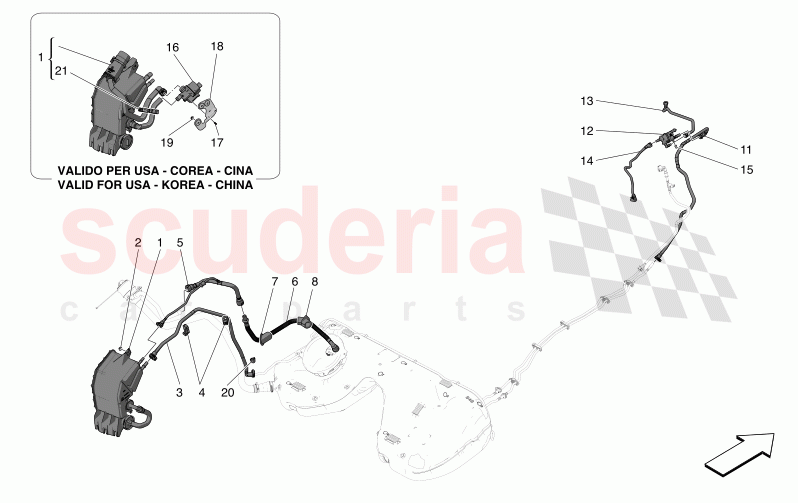

FUEL VAPOUR RECIRCULATION SYSTEM of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001694
FUEL VAPOUR FILTER
EU AU UK JP ME JRH IN N0 N8; 		- 1 Enquire
2 675001063
NUT 		- 3 Enquire
3 670160939
PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR 		- 1 Enquire
4 675001782
CLIP 		- 2 Enquire
5 670160941
HOSE
EU AU UK JP ME JRH IN N0 N8; 		- 1 Enquire
6 675001672
VENT PIPE 		- 1 Enquire
7 675001783
RUBBER 		- 1 Enquire
8 675001784
GASKET 		- 1 Enquire
11 670156367
TUBE FUEL VAPOR 		- 1 Enquire
12 675000977
BLEED VALVE 		- 1 Enquire
13 670156722
PIPE
EU AU UK JP ME JRH N0 N8; 		- 1 Enquire
14 675000981
HOSE 		- 1 Enquire
15 675000982
PLUG 		- 1 Enquire
20 675001802
CLIP 		- 1 Enquire
