INTERCOOLER SYSTEM of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

View All

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - INTERCOOLER SYSTEM (01321)

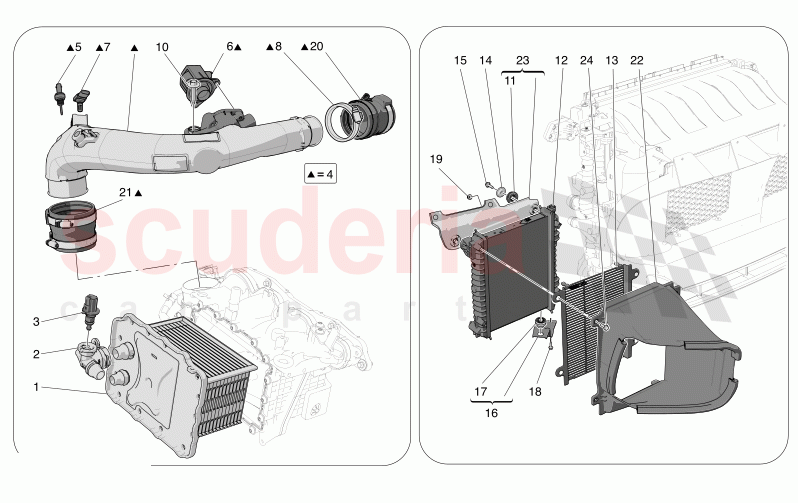

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B616023A	FASTENER MY25 74X	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673013310	SENSOR HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000985	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000989	INTERCOOLER AIR DUCT	Enquire	To Order
	675004453	INTERCOOLER AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000990	AIR TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000991	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000992	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000993	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000986	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000201	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001056	RH ENGINE RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670161248	RH RADIATOR GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000409	CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001048	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001571	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000545	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001119	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000794	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001180	TURBOCHARGER OUTLET INTAKE FLEXIBLE HOSE	Enquire	To Order
	47B959855C	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000994	HOSE	Enquire	To Order
	47B959855B	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156625	RH SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001969	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002334	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B616023A	FASTENER MY25 74X	47B616023A FASTENER MY25 74X	-	1	Enquire
2	673013310	SENSOR HOUSING	673013310 SENSOR HOUSING	-	1	Enquire
3	675000985	TEMPERATURE SENSOR	675000985 TEMPERATURE SENSOR	-	1	Enquire
4	675000989	INTERCOOLER AIR DUCT	675000989 INTERCOOLER AIR DUCT Bespoke Engine Number 0 - 1852988;	-	1	Enquire
4	675004453	INTERCOOLER AIR DUCT	675004453 INTERCOOLER AIR DUCT	-	1	Enquire
5	675000990	AIR TEMPERATURE SENSOR	675000990 AIR TEMPERATURE SENSOR	-	1	Enquire
6	675000991	VALVE	675000991 VALVE	-	1	Enquire
7	675000992	PRESSURE SENSOR	675000992 PRESSURE SENSOR	-	1	Enquire
8	675000993	CLAMP	675000993 CLAMP	-	1	Enquire
10	675000986	SCREW	675000986 SCREW	-	1	Enquire
11	675000201	FLEXIBLE PAD	675000201 FLEXIBLE PAD	-	2	Enquire
12	675001056	RH ENGINE RADIATOR	675001056 RH ENGINE RADIATOR	-	1	Enquire
13	670161248	RH RADIATOR GRILLE	670161248 RH RADIATOR GRILLE	-	1	Enquire
14	675000409	CUP	675000409 CUP	-	2	Enquire
15	675001048	SCREW	675001048 SCREW	-	2	Enquire
16	675001571	RH BRACKET	675001571 RH BRACKET	-	1	Enquire
17	675000545	BUSHING	675000545 BUSHING	-	1	Enquire
18	675001119	SCREW	675001119 SCREW	-	2	Enquire
19	675000794	NUT	675000794 NUT	-	2	Enquire
20	675001180	TURBOCHARGER OUTLET INTAKE FLEXIBLE HOSE	675001180 TURBOCHARGER OUTLET INTAKE FLEXIBLE HOSE Bespoke Engine Number 0 - 1852988;	-	1	Enquire
20	47B959855C	SWITCH	47B959855C SWITCH Bespoke Engine Number 1852989 - ZZZZZZZZ;	-	1	Enquire
21	675000994	HOSE	675000994 HOSE Bespoke Engine Number 0 - 1852988;	-	1	Enquire
21	47B959855B	SWITCH	47B959855B SWITCH Bespoke Engine Number 1852989 - ZZZZZZZZ;	-	1	Enquire
22	670156625	RH SIDE AIR DUCT	670156625 RH SIDE AIR DUCT	-	1	Enquire
23	675001969	BRACKET	675001969 BRACKET	-	1	Enquire
24	675002334	SCREW	675002334 SCREW	-	4	Enquire
