TURBOCHARGING SYSTEM: EQUIPMENTS of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

View All

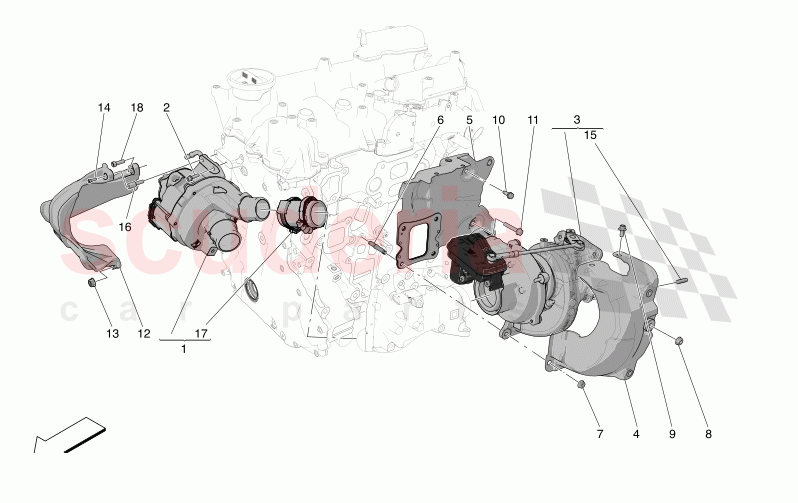

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - TURBOCHARGING SYSTEM: EQUIPMENTS (01301)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670053899	E-BOOSTER	Enquire	To Order
	670054296	E-BOOSTER	Enquire	To Order
	670054492	E-BOOSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051108	SCREW	Enquire	To Order
	675001989	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053882	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053592	HEAT SHIELD	Enquire	To Order
	670054067	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053540	HEAT SHIELD WITH GASKET	Enquire	To Order
	670054068	HEAT SHIELD WITH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000883	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000962	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000182	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000965	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000967	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000968	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670221109	E-BOOSTER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001096	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000375	SCREWM6X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673013906	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053828	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053704	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051233	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670053899	E-BOOSTER	670053899 E-BOOSTER Bespoke Engine Number 0 - 1724451;	-	1	Enquire
1	670054296	E-BOOSTER	670054296 E-BOOSTER Bespoke Engine Number 0 - 1950692;	-	1	Enquire
1	670054492	E-BOOSTER	670054492 E-BOOSTER Bespoke Engine Number 1950693 - ZZZZZZZZ;	-	1	Enquire
2	670051108	SCREW	670051108 SCREW Bespoke Engine Number 0 - 1641475;	-	2	Enquire
2	675001989	SCREW	675001989 SCREW Bespoke Engine Number 1641476 - ZZZZZZZZ;	-	2	Enquire
3	670053882	TURBOCHARGER	670053882 TURBOCHARGER	-	1	Enquire
4	670053592	HEAT SHIELD	670053592 HEAT SHIELD Bespoke Engine Number 0 - 1661006;	-	1	Enquire
4	670054067	HEAT SHIELD	670054067 HEAT SHIELD	-	1	Enquire
5	670053540	HEAT SHIELD WITH GASKET	670053540 HEAT SHIELD WITH GASKET Bespoke Engine Number 0 - 1762224;	-	1	Enquire
5	670054068	HEAT SHIELD WITH GASKET	670054068 HEAT SHIELD WITH GASKET	-	1	Enquire
6	675000883	STUD	675000883 STUD	-	4	Enquire
7	675000962	NUT	675000962 NUT	-	4	Enquire
8	675000182	NUT	675000182 NUT	-	1	Enquire
9	675000965	SCREW	675000965 SCREW	-	2	Enquire
10	675000967	SCREW	675000967 SCREW	-	1	Enquire
11	675000968	SCREW	675000968 SCREW	-	1	Enquire
12	670221109	E-BOOSTER HEAT SHIELD	670221109 E-BOOSTER HEAT SHIELD	-	1	Enquire
13	675001096	NUT	675001096 NUT	-	1	Enquire
14	675000375	SCREWM6X20	675000375 SCREWM6X20	-	1	Enquire
15	673013906	STUD	673013906 STUD	-	2	Enquire
16	670053828	STUD	670053828 STUD	-	1	Enquire
17	670053704	SLEEVE	670053704 SLEEVE	-	1	Enquire
18	670051233	SCREW	670051233 SCREW	-	1	Enquire
