CRANKCASE of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

View All

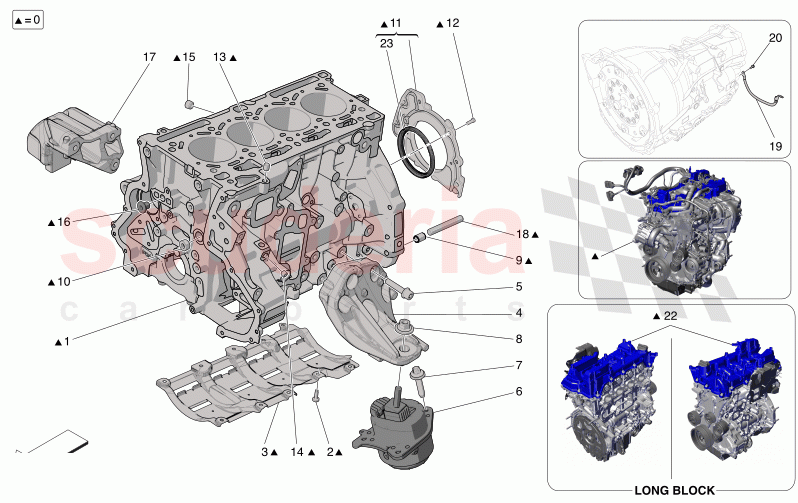

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - CRANKCASE (01001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B611759B	RETAINER	Enquire	To Order
	670054052	ENGINE BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000844	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000923	BASE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001971	LH ENGINE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001128	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001604	LH ENGINE BUSHING	Enquire	To Order
	675001603	RH ENGINE BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001507	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000841	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000836	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000872	REAR PLATE	Enquire	To Order
	47B501397B	LB74X REAR WHEEL STEERING ACTUATOR LEFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000873	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000891	CENTERING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000835	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000837	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000874	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001972	RH ENGINE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000881	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B907376B	CONTROL UNIT	Enquire	To Order
	675001705	CABLE FOR ENGINE-FRAME EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16288424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673016397	LONG BLOCK	Enquire	To Order
	673016397	LONG BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001157	SEAL RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	47B615407T	BRAKE CALIPER	47B615407T BRAKE CALIPER Bespoke Assembly Number 2036904 - 99999999;	-	1	Enquire
-	670054411	ENGINE ASSEMBLY	670054411 ENGINE ASSEMBLY IF STOCK=0 ORDER THE COMPLETE ENGINE PN 670054763 TOGETHER WITH THE PIPES PN 670054428 (FOR LHD) OR PN 670054429 (FOR RHD) AND PN 670309803; Bespoke Assembly Number 2025460 - 2036903; EU AU CN UK JP ME JRH IN KO N0 N8;	-	1	Enquire
-	670054344	ENGINE ASSEMBLY	670054344 ENGINE ASSEMBLY Bespoke Assembly Number 0 - 2025459; EU AU CN UK JP ME JRH IN KO N0 N8;	-	1	Enquire
1	47B611759B	RETAINER	47B611759B RETAINER Bespoke Assembly Number 2036904 - 99999999;	-	1	Enquire
1	670054052	ENGINE BLOCK	670054052 ENGINE BLOCK IF STOCK=0 ORDER THE ENGINE BLOCK PN 670054764 TOGETHER WITH THE PN 670054410 , PN 670054428 (FOR LHD) OR PN 670054429 (FOR RHD) AND PN 670309803; Bespoke Assembly Number 0 - 2036903;	-	1	Enquire
2	675000844	SCREW	675000844 SCREW	-	9	Enquire
3	675000923	BASE SHIELD	675000923 BASE SHIELD	-	1	Enquire
4	675001971	LH ENGINE MOUNTING BRACKET	675001971 LH ENGINE MOUNTING BRACKET	-	1	Enquire
5	675001128	SCREW	675001128 SCREW	-	7	Enquire
6	675001604	LH ENGINE BUSHING	675001604 LH ENGINE BUSHING	-	1	Enquire
6	675001603	RH ENGINE BUSHING	675001603 RH ENGINE BUSHING	-	1	Enquire
7	675001345	SCREW	675001345 SCREW	-	6	Enquire
8	675001507	NUT	675001507 NUT	-	2	Enquire
9	675000841	CENTERING DOWEL	675000841 CENTERING DOWEL	-	2	Enquire
10	675000836	PLUG	675000836 PLUG	-	2	Enquire
11	675000872	REAR PLATE	675000872 REAR PLATE Bespoke Engine Number 0 - 1960428;	-	1	Enquire
11	47B501397B	LB74X REAR WHEEL STEERING ACTUATOR LEFT	47B501397B LB74X REAR WHEEL STEERING ACTUATOR LEFT Bespoke Engine Number 1960429 - ZZZZZZZZ;	-	1	Enquire
12	675000873	SCREW	675000873 SCREW	-	8	Enquire
13	675000891	CENTERING PIN	675000891 CENTERING PIN	-	2	Enquire
14	675000835	PLUG	675000835 PLUG	-	4	Enquire
15	675000837	PLUG	675000837 PLUG	-	1	Enquire
16	675000874	PLUG	675000874 PLUG	-	1	Enquire
17	675001972	RH ENGINE MOUNTING BRACKET	675001972 RH ENGINE MOUNTING BRACKET	-	1	Enquire
18	675000881	STUD	675000881 STUD	-	4	Enquire
19	47B907376B	CONTROL UNIT	47B907376B CONTROL UNIT Bespoke Assembly Number 2025900 - 99999999;	-	1	Enquire
19	675001705	CABLE FOR ENGINE-FRAME EARTH	675001705 CABLE FOR ENGINE-FRAME EARTH Bespoke Assembly Number 0 - 2025899;	-	1	Enquire
20	16288424	SCREW	16288424 SCREW	-	1	Enquire
22	673016397	LONG BLOCK	673016397 LONG BLOCK Bespoke Assembly Number 2036904 - 99999999;	-	1	Enquire
22	673016397	LONG BLOCK	673016397 LONG BLOCK FOR ASSEMBLY < 2036904 ORDER ALSO THE PN 670054410, PN 670054428 (FOR LHD) OR PN 670054429 (FOR RHD) AND PN 670309803; Bespoke Assembly Number 0 - 2036903;	-	1	Enquire
23	675001157	SEAL RING	675001157 SEAL RING	-	1	Enquire
