Name: DIFFERENTIAL AND REAR AXLE SHAFTS
Rating: 4.7 (1 reviews)

DIFFERENTIAL AND REAR AXLE SHAFTS of Maserati Maserati GranCabrio (2010-2012)

View All

Maserati GranCabrio (2010-2012) - DIFFERENTIAL AND REAR AXLE SHAFTS

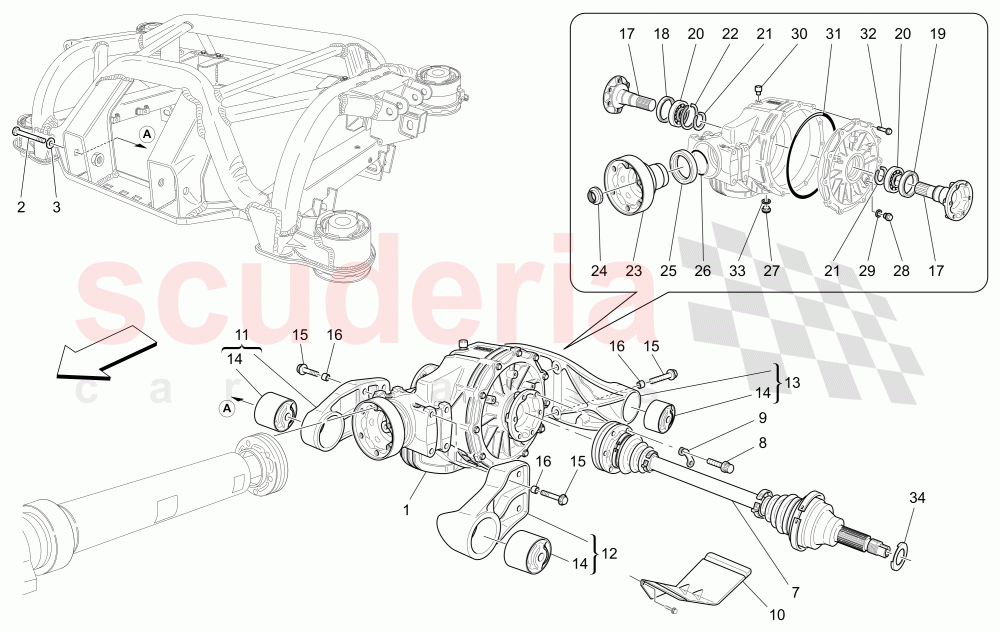

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

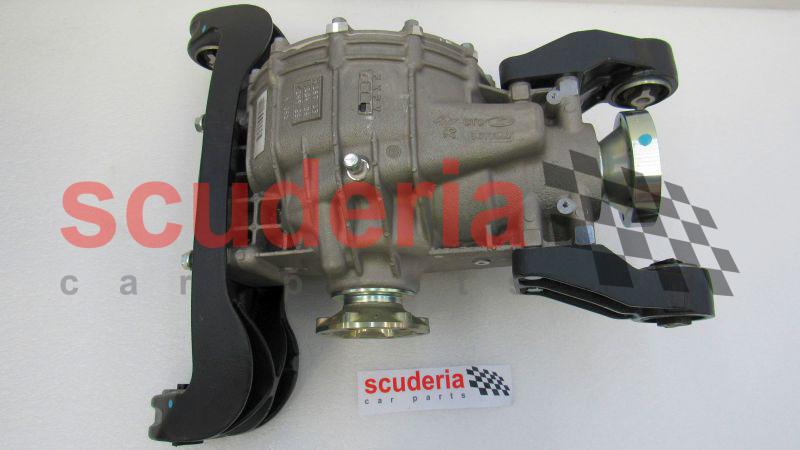

	270982	Differntial Assembly	$4,677.84	To Order

Photo	Part No	Description	Price (each)	Stock
	15977921	SCREW	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	11194174	WASHER	$3.43	To Order

Photo	Part No	Description	Price (each)	Stock

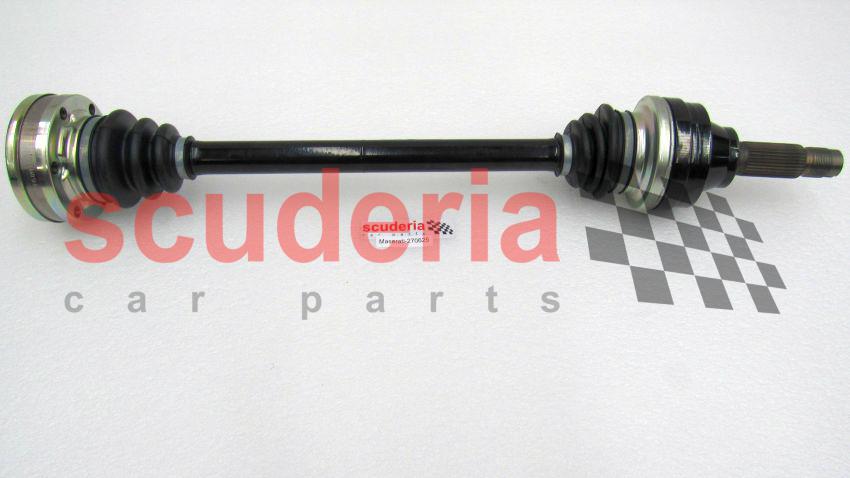

	270625	AXLE SHAFT	$879.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	223916	SCREW	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	222679	PLATE	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	198514	HEAT PROTECTION	$19.25	To Order

Photo	Part No	Description	Price (each)	Stock
	240022	R.H. FRONT BRACKET	$415.31	To Order

Photo	Part No	Description	Price (each)	Stock
	240023	L.H. FRONT BRACKET	$415.31	To Order

Photo	Part No	Description	Price (each)	Stock
	240024	REAR BRACKET	$1,088.63	To Order

Photo	Part No	Description	Price (each)	Stock

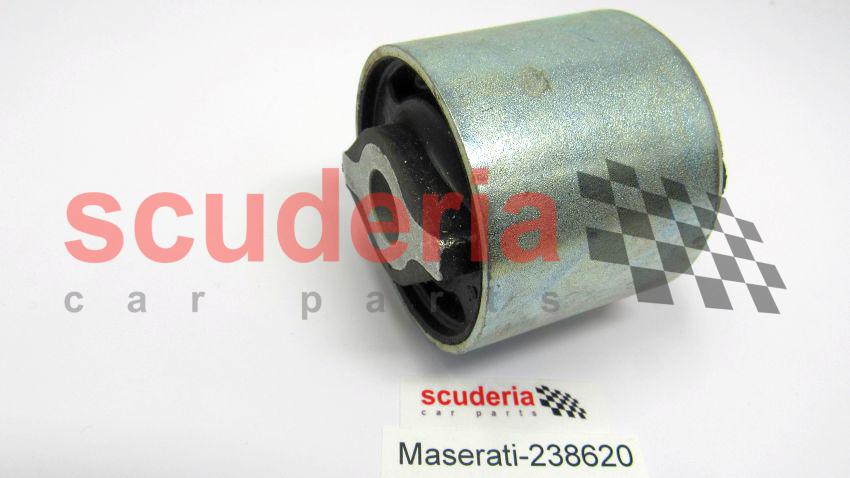

	238620	BUFFER FOR SUPPORT	$44.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271187	SCREW	$12.22	To Order

Photo	Part No	Description	Price (each)	Stock
	229202	CENTERING DOWEL	$4.26	To Order

Photo	Part No	Description	Price (each)	Stock
	218085	DIFFERENTIAL AXLE SHAFT	$842.37	To Order

Photo	Part No	Description	Price (each)	Stock
	181618	RH Seal Ring	$75.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	181617	LH ROTATING OIL SEALING RING	$67.44	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	BEARING Dia. 50X80X16	$82.17	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	CIRCLIP	$6.68	To Order

Photo	Part No	Description	Price (each)	Stock
	185723	CIRCLIP (SEEGER-RING)	$7.69	To Order

Photo	Part No	Description	Price (each)	Stock
	218086	PROPELLER SHAFT CONNECTION F	$267.69	To Order

Photo	Part No	Description	Price (each)	Stock
	271175	RING NUT	$52.08	To Order
	183967	RING NUT	$85.66	To Order

Photo	Part No	Description	Price (each)	Stock
	221062	SEAL RING	$93.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271172	O.R. GASKET	$11.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271177	THREADED PLUG	$60.33	To Order

Photo	Part No	Description	Price (each)	Stock
	271178	THREADED PLUG	$42.25	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	197797	OIL BREAHTER	$31.59	To Order

Photo	Part No	Description	Price (each)	Stock
	14468781	O.R. GASKET	$59.61	To Order

Photo	Part No	Description	Price (each)	Stock
	16287321	SCREW	$14.40	To Order

Photo	Part No	Description	Price (each)	Stock

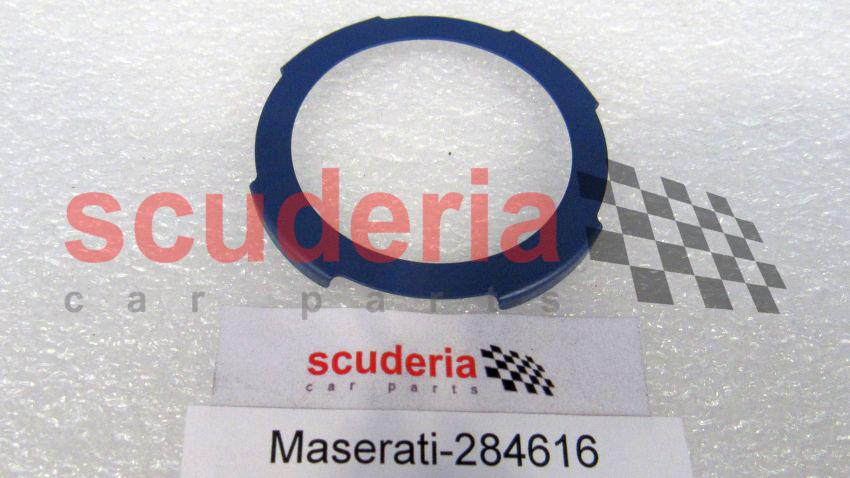

	284616	Axel Spacer	$37.03	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	270982	Differntial Assembly	270982 Differntial Assembly	$4,677.84	1
2	15977921	SCREW	15977921 SCREW	$7.83	4
3	11194174	WASHER	11194174 WASHER	$3.43 MSRP: ~~5.62~~ (39% off)	4
7	270625	AXLE SHAFT IN STOCK	270625 AXLE SHAFT For cars with assembly number lower than 57920 order ring 284616 IN STOCK	$879.63	2
8	223916	SCREW	223916 SCREW	$4.75	12
9	222679	PLATE	222679 PLATE	$4.55	6
10	198514	HEAT PROTECTION	198514 HEAT PROTECTION	$19.25	2
11	240022	R.H. FRONT BRACKET	240022 R.H. FRONT BRACKET	$415.31	1
12	240023	L.H. FRONT BRACKET	240023 L.H. FRONT BRACKET	$415.31	1
13	240024	REAR BRACKET	240024 REAR BRACKET	$1,088.63	1
14	238620	BUFFER FOR SUPPORT IN STOCK	238620 BUFFER FOR SUPPORT IN STOCK	$44.21	4
15	271187	SCREW	271187 SCREW M 10X40	$12.22	8
16	229202	CENTERING DOWEL	229202 CENTERING DOWEL	$4.26	6
17	218085	DIFFERENTIAL AXLE SHAFT	218085 DIFFERENTIAL AXLE SHAFT	$842.37	2
18	181618	RH Seal Ring IN STOCK	181618 RH Seal Ring IN STOCK	$75.12	1
19	181617	LH ROTATING OIL SEALING RING	181617 LH ROTATING OIL SEALING RING	$67.44	1
20	184995	BEARING Dia. 50X80X16	184995 BEARING Dia. 50X80X16	$82.17	2
21	184994	CIRCLIP	184994 CIRCLIP	$6.68	2
22	185723	CIRCLIP (SEEGER-RING)	185723 CIRCLIP (SEEGER-RING)	$7.69	1
23	218086	PROPELLER SHAFT CONNECTION F	218086 PROPELLER SHAFT CONNECTION F	$267.69	1
24	271175	RING NUT	271175 RING NUT Valid till serial Nr. 292	$52.08	1
24	183967	RING NUT	183967 RING NUT Valid from serial Nr. 293	$85.66	1
25	221062	SEAL RING IN STOCK	221062 SEAL RING IN STOCK	$93.09	1
26	271172	O.R. GASKET IN STOCK	271172 O.R. GASKET IN STOCK	$11.37	1
27	271177	THREADED PLUG	271177 THREADED PLUG M 18X1.5	$60.33	1
28	271178	THREADED PLUG	271178 THREADED PLUG M 22X1.5	$42.25	1
29	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 IN STOCK	$2.07	1
30	197797	OIL BREAHTER	197797 OIL BREAHTER	$31.59	1
31	14468781	O.R. GASKET	14468781 O.R. GASKET	$59.61	1
32	16287321	SCREW	16287321 SCREW	$14.40	11
34	284616	Axel Spacer IN STOCK	284616 Axel Spacer IN STOCK	$37.03	2

Differential And Rear Axle Shafts

Maserati GranCabrio (2010-2012)

Maserati GranCabrio (2010-2012) - DIFFERENTIAL AND REAR AXLE SHAFTS
