PARKING BRAKE of Maserati Maserati GranCabrio (2013-2015) MC

View All

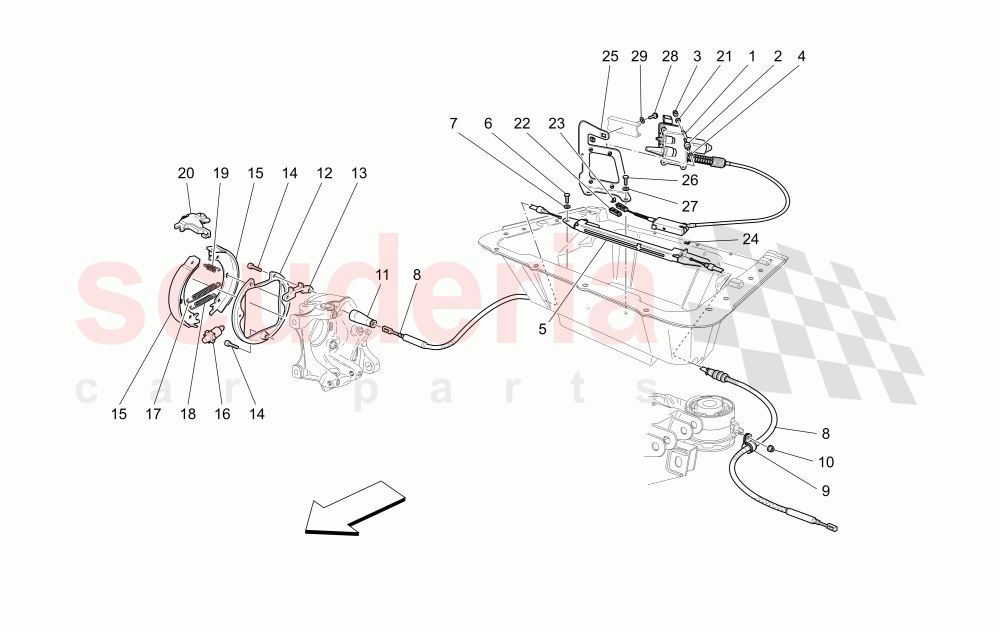

Maserati GranCabrio (2013-2015) MC - PARKING BRAKE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	281371	Electronic Actuator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239829	CYLINDER BUSH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059214	Nut Flanged M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224010	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221901	Parking Brake Secondary Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143938	CABLE SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186574	SHOES SUPPORT SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233371	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248418	Hand Brake Shoe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186572	Register For Hand Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190776	Return Spring For Brake Shoes	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190779	Return Spring For Brake Shoes	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190780	Spring For Shoes	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145862	HAND BRAKE CONTROL LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233582	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245964	CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245162	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239924	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266599	HAND BRAKE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523424	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	281371	Electronic Actuator	281371 Electronic Actuator	-	1	Enquire
2	239829	CYLINDER BUSH ARRIVING SOON	239829 CYLINDER BUSH ARRIVING SOON	-	4	Enquire
3	14059214	Nut Flanged M6	14059214 Nut Flanged M6 M6	-	4	Enquire
4	10523424	WASHER	10523424 WASHER	-	4	Enquire
5	224010	BRACKET	224010 BRACKET	-	1	Enquire
6	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	-	2	Enquire
7	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8 D. 8,40-15X 0,8	-	2	Enquire
8	221901	Parking Brake Secondary Cable	221901 Parking Brake Secondary Cable	-	2	Enquire
9	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
10	14039614	NUT	14039614 NUT M6	-	2	Enquire
11	143938	CABLE SHEATH	143938 CABLE SHEATH	-	2	Enquire
12	186574	SHOES SUPPORT SPACER	186574 SHOES SUPPORT SPACER	-	2	Enquire
13	233371	Plate	233371 Plate	-	2	Enquire
14	250657	SCREW	250657 SCREW	-	6	Enquire
15	248418	Hand Brake Shoe	248418 Hand Brake Shoe It is recommended to replace all 4 brake shoes	-	4	Enquire
16	186572	Register For Hand Brake	186572 Register For Hand Brake	-	2	Enquire
17	190776	Return Spring For Brake Shoes	190776 Return Spring For Brake Shoes	-	2	Enquire
18	190779	Return Spring For Brake Shoes	190779 Return Spring For Brake Shoes	-	2	Enquire
19	190780	Spring For Shoes	190780 Spring For Shoes	-	4	Enquire
20	980145862	HAND BRAKE CONTROL LEVER	980145862 HAND BRAKE CONTROL LEVER	-	2	Enquire
21	233582	WASHER	233582 WASHER	-	4	Enquire
22	245964	CAGE	245964 CAGE	-	1	Enquire
23	245162	RETAINING CLIP	245162 RETAINING CLIP	-	1	Enquire
24	239924	RETAINING CLIP	239924 RETAINING CLIP	-	1	Enquire
25	266599	HAND BRAKE BRACKET	266599 HAND BRAKE BRACKET	-	1	Enquire
26	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	-	2	Enquire
27	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8 D. 8,40-15X 0,8	-	2	Enquire
28	16286127	SCREW	16286127 SCREW	-	1	Enquire
29	10523424	WASHER	10523424 WASHER	-	1	Enquire
