LH CYLINDER HEAD of Maserati Maserati GranCabrio (2013-2015) MC

View All

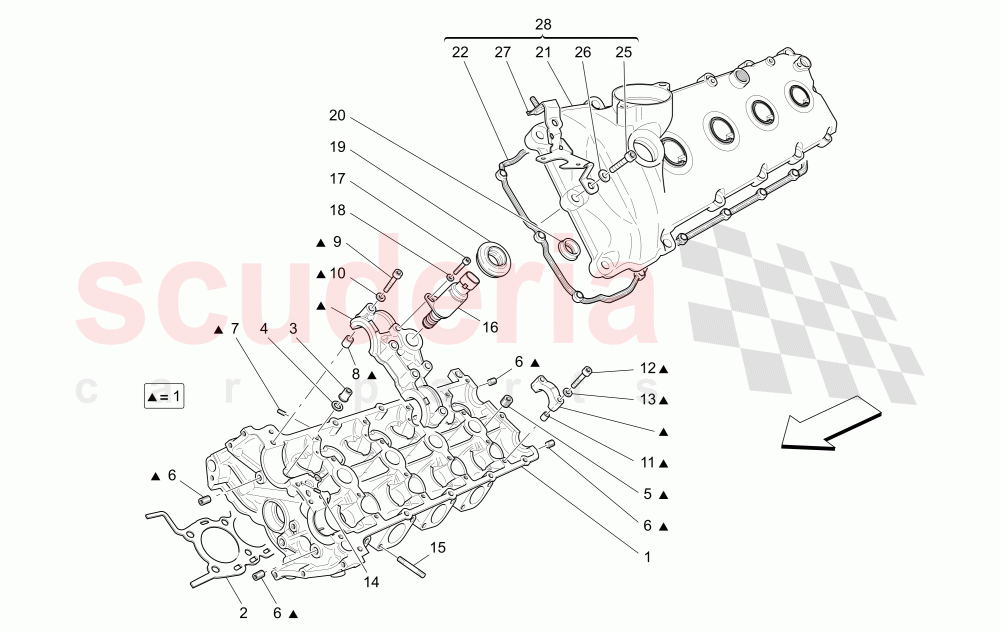

Maserati GranCabrio (2013-2015) MC - LH CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	271222	LH HEAD ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266263	LH Head Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	CYLINDER HEAD NUT & WASHER KIT	Enquire	To Order
	321187	CYLINDER HEAD NUT & WASHER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282756	THREADED PLUG subject to maserati technical service authorisation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREWM6X45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREWM6X35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226414	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296016	Oil Pressure Check Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW TCEI M5 x 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228962	Solenoid Valve Gasket	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	223982	Spark Plug Hole Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272788	LH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264987	LH Head Cover Gasket	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	213129	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265568	L.H. AIR VALVE FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145470	LH HEAD COVER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	271222	LH HEAD ASSEMBLY	271222 LH HEAD ASSEMBLY	-	1	Enquire
2	266263	LH Head Gasket	266263 LH Head Gasket	-	1	Enquire
3	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT M11	-	10	Enquire
3	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT	-	10	Enquire
4	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5 D.11.25-22X2.5	-	10	Enquire
5	282756	THREADED PLUG subject to maserati technical service authorisation	282756 THREADED PLUG subject to maserati technical service authorisation	-	5	Enquire
6	282755	THREADED PLUG	282755 THREADED PLUG	-	4	Enquire
7	199760	THREADED PLUG	199760 THREADED PLUG	-	4	Enquire
8	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
9	231624	SCREWM6X45	231624 SCREWM6X45 M6X45	-	6	Enquire
10	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	6	Enquire
11	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	16	Enquire
12	231622	SCREWM6X35	231622 SCREWM6X35	-	16	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	16	Enquire
14	226414	DOWEL	226414 DOWEL	-	1	Enquire
15	13543424	STUD	13543424 STUD	-	8	Enquire
16	296016	Oil Pressure Check Valve	296016 Oil Pressure Check Valve	-	1	Enquire
17	14304124	SCREW TCEI M5 x 12	14304124 SCREW TCEI M5 x 12	-	1	Enquire
18	11181574	WASHER	11181574 WASHER D.5.3-11X0.9	-	1	Enquire
19	228962	Solenoid Valve Gasket ARRIVING SOON	228962 Solenoid Valve Gasket ARRIVING SOON	-	1	Enquire
20	223982	Spark Plug Hole Gasket	223982 Spark Plug Hole Gasket	-	4	Enquire
21	272788	LH CYLINDER HEAD COVER	272788 LH CYLINDER HEAD COVER	-	1	Enquire
22	264987	LH Head Cover Gasket ARRIVING SOON	264987 LH Head Cover Gasket ARRIVING SOON	-	1	Enquire
25	213129	SCREW	213129 SCREW	-	14	Enquire
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	14	Enquire
27	265568	L.H. AIR VALVE FIXING BRACKET	265568 L.H. AIR VALVE FIXING BRACKET	-	1	Enquire
28	980145470	LH HEAD COVER KIT	980145470 LH HEAD COVER KIT	-	1	Enquire
