INTERCOOLER SYSTEM of Maserati Maserati GranCabrio M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP

View All

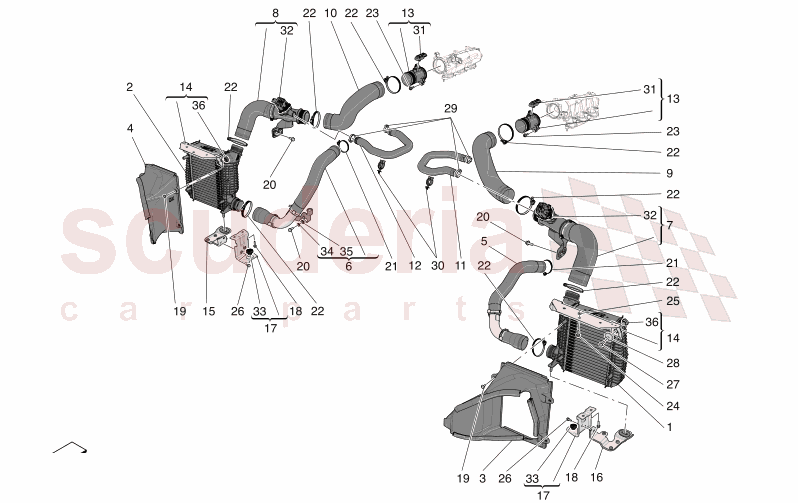

Maserati GranCabrio M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP - INTERCOOLER SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670176541	INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670176542	INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158445	CONVEYOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158444	CONVEYOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158492	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158491	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670292679	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670292677	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159554	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158493	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158528	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158527	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160026	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158502	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159636	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159401	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158506	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001239	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000354	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001078	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000754	COLLARD.68	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000362	COLLARD.78	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001034	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001119	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001307	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001358	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001117	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000409	CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002295	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670213515	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000014	PRESSURE TRANSMITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001051	MODULAR SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000545	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000017	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000016	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000201	FLEXIBLE PAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670176541	INTERCOOLER	670176541 INTERCOOLER	-	1	Enquire
2	670176542	INTERCOOLER	670176542 INTERCOOLER	-	1	Enquire
3	670158445	CONVEYOR	670158445 CONVEYOR	-	1	Enquire
4	670158444	CONVEYOR	670158444 CONVEYOR	-	1	Enquire
5	670158492	SLEEVE	670158492 SLEEVE	-	1	Enquire
6	670158491	SLEEVE	670158491 SLEEVE	-	1	Enquire
7	670292679	SLEEVE	670292679 SLEEVE	-	1	Enquire
8	670292677	SLEEVE	670292677 SLEEVE	-	1	Enquire
9	670159554	SLEEVE	670159554 SLEEVE	-	1	Enquire
10	670158493	SLEEVE	670158493 SLEEVE	-	1	Enquire
11	670158528	TUBE	670158528 TUBE	-	1	Enquire
12	670158527	TUBE	670158527 TUBE	-	1	Enquire
13	670160026	SLEEVE	670160026 SLEEVE	-	2	Enquire
14	670158502	BRACKET	670158502 BRACKET	-	2	Enquire
15	670159636	BRACKET	670159636 BRACKET	-	1	Enquire
16	670159401	BRACKET	670159401 BRACKET	-	1	Enquire
17	670158506	BRACKET	670158506 BRACKET	-	2	Enquire
18	675001239	SCREW	675001239 SCREW	-	4	Enquire
19	675000354	SCREW	675000354 SCREW	-	8	Enquire
20	675001078	SCREW	675001078 SCREW	-	6	Enquire
21	675000754	COLLARD.68	675000754 COLLARD.68	-	1	Enquire
22	675000362	COLLARD.78	675000362 COLLARD.78	-	8	Enquire
23	675001034	SCREW	675001034 SCREW	-	4	Enquire
24	675001119	SCREW	675001119 SCREW	-	1	Enquire
25	675001307	NUT	675001307 NUT	-	2	Enquire
26	675001358	SCREW	675001358 SCREW	-	4	Enquire
27	675001117	SCREW	675001117 SCREW	-	2	Enquire
28	675000409	CUP	675000409 CUP	-	2	Enquire
29	675002295	CLIP	675002295 CLIP	-	4	Enquire
30	670213515	CLIP	670213515 CLIP	-	2	Enquire
31	675000014	PRESSURE TRANSMITTER	675000014 PRESSURE TRANSMITTER	-	2	Enquire
32	675001051	MODULAR SOLENOID VALVE	675001051 MODULAR SOLENOID VALVE	-	2	Enquire
33	675000545	BUSHING	675000545 BUSHING	-	2	Enquire
34	675000017	SPACER	675000017 SPACER	-	2	Enquire
35	675000016	FLEXIBLE PAD	675000016 FLEXIBLE PAD	-	2	Enquire
36	675000201	FLEXIBLE PAD	675000201 FLEXIBLE PAD	-	4	Enquire
