Find Your Part

Authorised by Maserati SPA

IT SYSTEM of Maserati Maserati Ghibli (2014-2016) S Q4

View All

Maserati Ghibli (2014-2016) S Q4 - IT SYSTEM

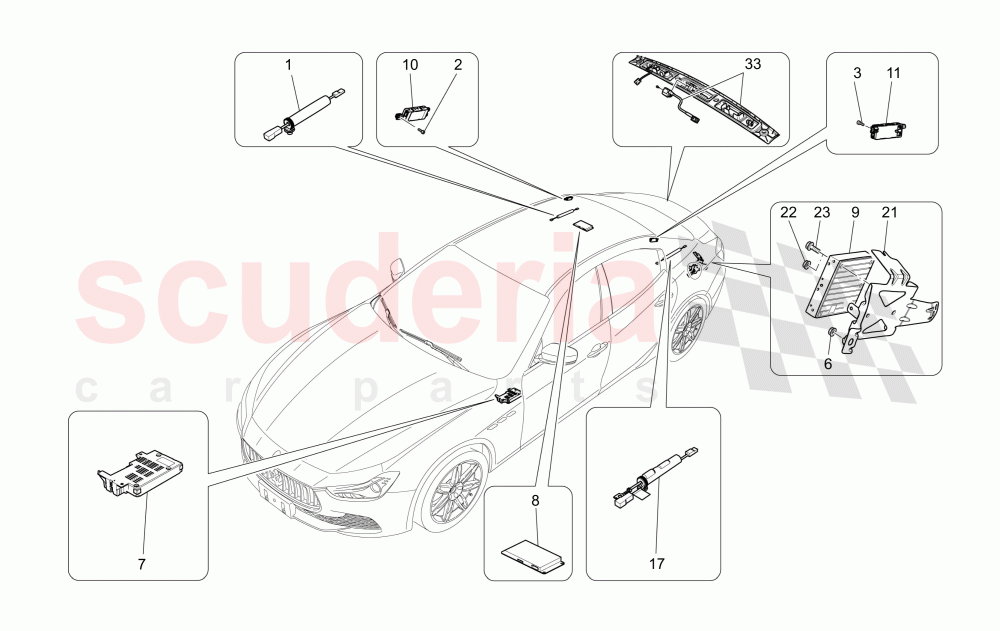

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670007177	AM FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000084	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000084	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000095	NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670037016	HANDS-FREE PHONE MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006543	WI-FI ECU - WI-FI VEHICLE HOT SPOT WITH SIM	Enquire	To Order
	670006544	WI-FI ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670038069	AUDIO AMPLIFIER - HIGH PREMIUM SOUND SYSTEM	Enquire	To Order
	670034377	8 CHANNEL AMPLIFIER	Enquire	To Order
	670037279	AUDIO AMPLIFIER	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670106194	FM2/DAB AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670106193	AM/FM1 AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007178	NOISE FILTER - LAMINATED GLAZING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002126	AMPLIFIER FIXING BRACKET	Enquire	To Order
	670035098	AMPLIFIER FIXING BRACKET	Enquire	To Order
	670004839	AMPLIFIER FIXING BRACKET - HIGH PREMIUM SOUND SYSTEM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675000444	SCREW	Enquire	To Order
	670037621	SCREW	Enquire	To Order
	670037621	SCREW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059221	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670007177	AM FILTER	670007177 AM FILTER	-	1	Enquire
2	675000084	SCREW	675000084 SCREW	-	1	Enquire
3	675000084	SCREW	675000084 SCREW	-	1	Enquire
6	675000095	NUT M6	675000095 NUT M6 M6	-	3	Enquire
7	670037016	HANDS-FREE PHONE MODULE	670037016 HANDS-FREE PHONE MODULE Driver side	-	1	Enquire
8	670006543	WI-FI ECU - WI-FI VEHICLE HOT SPOT WITH SIM	670006543 WI-FI ECU - WI-FI VEHICLE HOT SPOT WITH SIM	-	1	Enquire
8	670006544	WI-FI ECU	670006544 WI-FI ECU	-	1	Enquire
9	670038069	AUDIO AMPLIFIER - HIGH PREMIUM SOUND SYSTEM	670038069 AUDIO AMPLIFIER - HIGH PREMIUM SOUND SYSTEM With opt 718 is not avilable audio amplifier	-	1	Enquire
9	670034377	8 CHANNEL AMPLIFIER	670034377 8 CHANNEL AMPLIFIER With opt 718 is not avilable audio amplifier	-	1	Enquire
9	670037279	AUDIO AMPLIFIER	670037279 AUDIO AMPLIFIER With opt 718 is not avilable audio amplifier	-	1	Enquire
9	670036099	AUDIO AMPLIFIER - PREMIUM SOUND SYSTEM	670036099 AUDIO AMPLIFIER - PREMIUM SOUND SYSTEM With opt 718 is not avilable audio amplifier	-	1	Enquire
9	670036099	AUDIO AMPLIFIER - PREMIUM SOUND SYSTEM	670036099 AUDIO AMPLIFIER - PREMIUM SOUND SYSTEM PLEASE ORDER ONLY FOR MY17 VEHICLE - With opt 718 is not avilable audio amplifier	-	1	Enquire
9	670037279	AUDIO AMPLIFIER	670037279 AUDIO AMPLIFIER PLEASE ORDER ONLY FOR MY16 VEHICLE - With opt 718 is not avilable audio amplifier	-	1	Enquire
9	670034377	8 CHANNEL AMPLIFIER	670034377 8 CHANNEL AMPLIFIER PLEASE ORDER ONLY FOR MY15 VEHICLE - With opt 718 is not avilable audio amplifier	-	1	Enquire
10	670106194	FM2/DAB AMPLIFIER	670106194 FM2/DAB AMPLIFIER	-	1	Enquire
11	670106193	AM/FM1 AMPLIFIER	670106193 AM/FM1 AMPLIFIER	-	1	Enquire
17	670007178	NOISE FILTER - LAMINATED GLAZING	670007178 NOISE FILTER - LAMINATED GLAZING	-	1	Enquire
21	670002126	AMPLIFIER FIXING BRACKET	670002126 AMPLIFIER FIXING BRACKET	-	1	Enquire
21	670035098	AMPLIFIER FIXING BRACKET	670035098 AMPLIFIER FIXING BRACKET	-	1	Enquire
21	670004839	AMPLIFIER FIXING BRACKET - HIGH PREMIUM SOUND SYSTEM	670004839 AMPLIFIER FIXING BRACKET - HIGH PREMIUM SOUND SYSTEM	-	1	Enquire
21	670002126	AMPLIFIER FIXING BRACKET	670002126 AMPLIFIER FIXING BRACKET PLEASE ORDER ONLY FOR MY15 VEHICLE	-	1	Enquire
21	670035098	AMPLIFIER FIXING BRACKET	670035098 AMPLIFIER FIXING BRACKET PLEASE ORDER ONLY FOR MY16 VEHICLE	-	1	Enquire
22	675000444	SCREW	675000444 SCREW	-	3	Enquire
22	670037621	SCREW	670037621 SCREW	-	4	Enquire
22	670037621	SCREW	670037621 SCREW PLEASE ORDER x3 675000444 ONLY FOR MY15 VEHICLE	-	3	Enquire
22	670037621	SCREW	670037621 SCREW PLEASE ORDER x4 675000444 ONLY FOR MY16 VEHICLE	-	4	Enquire
23	14059221	NUT	14059221 NUT	-	4	Enquire
