Maserati Ghibli (2014-2016) S - MAIN WIRING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
307119 ALTERNATOR TO STARTER MOTOR CONNECTING CABLE $498.34 To Order
Photo Part No Description Price (each) Stock
670007924 RESISTORS CABLES ASSEMBLY $132.60 To Order
Photo Part No Description Price (each) Stock
289676 HEAT SHIELD $103.39 To Order
Photo Part No Description Price (each) Stock
14362134 SCREWM10X18 $5.86 To Order
Photo Part No Description Price (each) Stock
301026 BRACKET $25.04 To Order
Photo Part No Description Price (each) Stock
301027 BRACKET $35.00 To Order
Photo Part No Description Price (each) Stock
291595 BRACKET $22.48 To Order
Photo Part No Description Price (each) Stock
304801 BRACKET ASSEMBLY $16.93 To Order
Photo Part No Description Price (each) Stock
198273 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
675000449 NUTM5 $1.43 To Order
Photo Part No Description Price (each) Stock
226603 CLIP $2.84 To Order
Photo Part No Description Price (each) Stock
292112 CLIP $2.00 To Order
Photo Part No Description Price (each) Stock
292125 BRACKET ASSEMBLY $18.48 To Order
Photo Part No Description Price (each) Stock
198273 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
292112 CLIP $2.00 To Order
Photo Part No Description Price (each) Stock
233600 SCREW M6 X 12 $2.81 IN STOCK
Photo Part No Description Price (each) Stock
280460 SCREW $19.93 To Order
Photo Part No Description Price (each) Stock
303270 BRACKET $4.41 To Order
Photo Part No Description Price (each) Stock
16102314 NUTM8 $2.00 To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.63 IN STOCK
View All

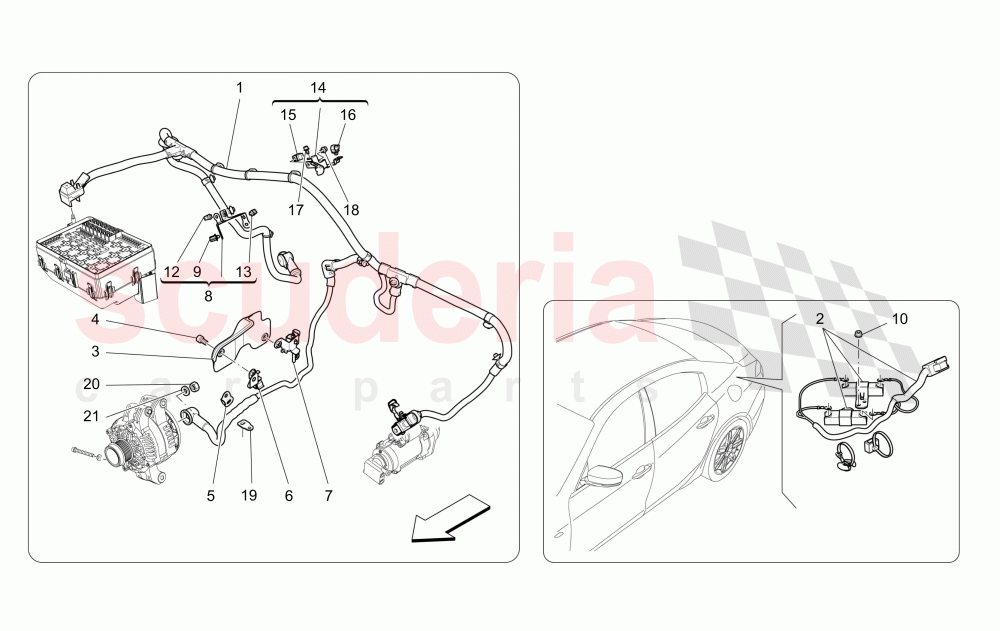

MAIN WIRING of Maserati Maserati Ghibli (2014-2016) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 307119
ALTERNATOR TO STARTER MOTOR CONNECTING CABLE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$498.34 1
2 670007924
RESISTORS CABLES ASSEMBLY 		$132.60 1
3 289676
HEAT SHIELD
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$103.39 1
4 14362134
SCREWM10X18
M10X18 		$5.86 2
5 301026
BRACKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$25.04 1
6 301027
BRACKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$35.00 1
7 291595
BRACKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$22.48 1
8 304801
BRACKET ASSEMBLY
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$16.93 1
9 198273
CLIP 		- 1 Enquire
10 675000449
NUTM5
M5 		$1.43 3
12 226603
CLIP 		$2.84 1
13 292112
CLIP 		$2.00 1
14 292125
BRACKET ASSEMBLY 		$18.48 1
15 198273
CLIP 		- 1 Enquire
16 292112
CLIP 		$2.00 1
17 233600
SCREW M6 X 12
M6X12
IN STOCK 		$2.81 1
18 280460
SCREW 		$19.93 1
19 303270
BRACKET 		$4.41 1
20 16102314
NUTM8
M8 		$2.00 1
21 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8
IN STOCK 		$1.63 1
