Front Seats: Mechanics And Electronics

Maserati GranSport Spyder (2005-2007)

Find Your Part

Maserati GranSport Spyder (2005-2007) - FRONT SEATS: MECHANICS AND ELECTRONICS

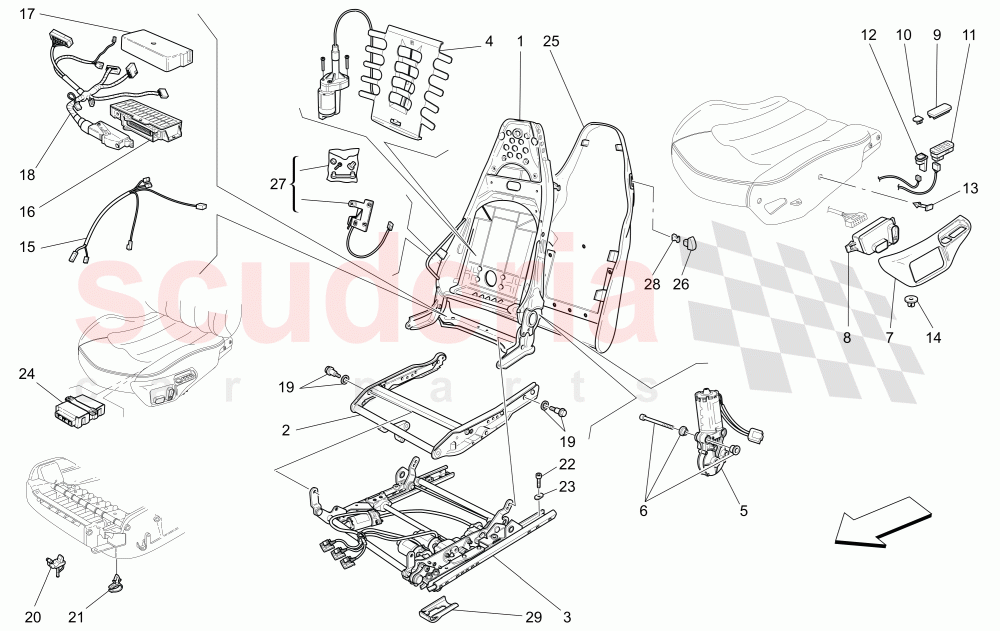

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
980138287 BACKSEAT FRAME $1,394.81 To Order
Photo Part No Description Price (each) Stock
980001177 L.H. CUSHION FRAME $168.86 To Order
980001178 RH FRONT CUSHION FRAME $170.50 To Order
Photo Part No Description Price (each) Stock
980138112 FRONT SEAT LIFTER $3,655.41 To Order
980001111 FRONT SEAT LIFTER - Comfort Pack front seats $3,955.49 To Order
980001112 PASSENGER SEAT MOVEMENT $2,904.11 To Order
Photo Part No Description Price (each) Stock
386900100 LUMBAR ADJUST $401.30 To Order
Photo Part No Description Price (each) Stock
386901402 SEAT BACK ADJUST MOTOR - Comfort Pack front seats $504.47 To Order
386900402 SEAT BACK ADJUST MOTOR $414.55 IN STOCK
Photo Part No Description Price (each) Stock
386900403 MOTOR FIXING KIT $69.15 IN STOCK
Photo Part No Description Price (each) Stock
66710700 LH SEAT GUARD $24.85 To Order
66710400 RH SEAT GUARD $23.73 To Order
Photo Part No Description Price (each) Stock
386900223 L.H. SEAT MOVEMENT CONTROL JOISTICK $289.13 To Order
386900224 R.H. SEAT MOVEMENT CONTROL JOISTICK $274.26 To Order
Photo Part No Description Price (each) Stock
980001124 PLUG FOR MEMORIES BUTTON $10.25 To Order
Photo Part No Description Price (each) Stock
980001123 PLUG FOR HEATER BUTTON $9.40 To Order
Photo Part No Description Price (each) Stock
386901225 MEMORIER BUTTON PANEL $108.37 To Order
Photo Part No Description Price (each) Stock
386901226 HEATHER CONTROL BUTTON $22.60 To Order
Photo Part No Description Price (each) Stock
386900404 Carter Fixing Pin $21.54 IN STOCK
Photo Part No Description Price (each) Stock
386900405 NUT SCREW $5.96 To Order
Photo Part No Description Price (each) Stock
980001114 PASSENGER SEAT CABLE $371.40 To Order
980001113 PASSENGER SEAT CABLE $417.44 To Order
980001117 PILOT SEAT CABLE $132.57 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
980001115 PILOT SIDE MEMORIES CONTROL UNIT $1,664.97 To Order
Photo Part No Description Price (each) Stock
980001116 PILOT SIDE CONTROL UNIT COVER $59.61 To Order
Photo Part No Description Price (each) Stock
980001129 PILOT SIDE MEMORY CABLE $1,030.39 To Order
980001130 PILOT SIDE MEMORY CABLE $1,060.08 To Order
Photo Part No Description Price (each) Stock
980001023 FRONT SEAT LIFT ASSEMBLY FIXING KIT $134.03 To Order
Photo Part No Description Price (each) Stock
386900406 CLIP $9.40 To Order
Photo Part No Description Price (each) Stock
386900407 CLIP $11.82 To Order
Photo Part No Description Price (each) Stock
376900302 SCREW $7.83 To Order
Photo Part No Description Price (each) Stock
386900302 PLATE $1.43 IN STOCK
Photo Part No Description Price (each) Stock
271608 EASY ENTRY ECU $370.10 To Order
Photo Part No Description Price (each) Stock
981216100 SEAT BACK PANEL - NERO (BLACK) - 364014594 $1,294.58 To Order
981216101 SEAT BACK PANEL - BEIGE (BEIGE) - 364014599 Enquire To Order
981216102 SEAT BACK PANEL - AVORIO (IVORY) - 364014595 Enquire To Order
...and 37 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
980138290 SEAT UNHOOK LEVER $37.90 To Order
Photo Part No Description Price (each) Stock
980145844 COMPLETE L.H. MICROSWITCH $136.56 To Order
980145845 COMPLETE R.H. MICROSWITCH $100.85 To Order
Photo Part No Description Price (each) Stock
386900313 RELEASE CLIP FOR SEAT LEVER $5.27 To Order
Photo Part No Description Price (each) Stock
388100472 FRONT SHIELD FOR FRONT SEAT GUIDE $9.83 To Order
View All
FRONT SEATS: MECHANICS AND ELECTRONICS of Maserati Maserati GranSport Spyder (2005-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 980138287
BACKSEAT FRAME 		$1,394.81 2
2 980001177
L.H. CUSHION FRAME 		$168.86 1
2 980001178
RH FRONT CUSHION FRAME 		$170.50 1
3 980138112
FRONT SEAT LIFTER
Not for cars with opt. Heater and memory 		$3,655.41 1
3 980001111
FRONT SEAT LIFTER - Comfort Pack front seats
Driver side - Valid for cars with opt. Heater and memory 		$3,955.49 1
3 980001112
PASSENGER SEAT MOVEMENT 		$2,904.11 1
4 386900100
LUMBAR ADJUST 		$401.30 2
5 386901402
SEAT BACK ADJUST MOTOR - Comfort Pack front seats 		$504.47 1
5 386900402
SEAT BACK ADJUST MOTOR
IN STOCK 		$414.55 1
6 386900403
MOTOR FIXING KIT
IN STOCK 		$69.15 2
7 66710700
LH SEAT GUARD 		$24.85 1
7 66710400
RH SEAT GUARD 		$23.73 1
8 386900223
L.H. SEAT MOVEMENT CONTROL JOISTICK 		$289.13 1
8 386900224
R.H. SEAT MOVEMENT CONTROL JOISTICK 		$274.26 1
9 980001124
PLUG FOR MEMORIES BUTTON 		$10.25 2
10 980001123
PLUG FOR HEATER BUTTON 		$9.40 2
11 386901225
MEMORIER BUTTON PANEL 		$108.37 2
12 386901226
HEATHER CONTROL BUTTON 		$22.60 2
13 386900404
Carter Fixing Pin
IN STOCK 		$21.54 6
14 386900405
NUT SCREW 		$5.96 4
15 980001114
PASSENGER SEAT CABLE
Not for RHD 		$371.40 1
15 980001113
PASSENGER SEAT CABLE
Valid for RHD 		$417.44 1
15 980001117
PILOT SEAT CABLE
Valid for cars with opt. Heater and memory 		$132.57 1
15 980138288
PILOT SEAT CABLE
Not for RHD- -Not for cars with opt. Heater and memory 		$702.19 1
15 980138289
PILOT SEAT CABLE
Valid for RHD- -Not for cars with opt. Heater and memory 		$752.14 1
16 980001115
PILOT SIDE MEMORIES CONTROL UNIT 		$1,664.97 1
17 980001116
PILOT SIDE CONTROL UNIT COVER 		$59.61 1
18 980001129
PILOT SIDE MEMORY CABLE
Not for RHD 		$1,030.39 1
18 980001130
PILOT SIDE MEMORY CABLE
Valid for RHD 		$1,060.08 1
19 980001023
FRONT SEAT LIFT ASSEMBLY FIXING KIT 		$134.03 8
20 386900406
CLIP 		$9.40 4
21 386900407
CLIP 		$11.82 8
22 376900302
SCREW 		$7.83 8
23 386900302
PLATE
IN STOCK 		$1.43 8
24 271608
EASY ENTRY ECU
Not for cars with opt. Heater and memory 		$370.10 1
25 981216100
SEAT BACK PANEL - NERO (BLACK) - 364014594
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		$1,294.58 2
25 981216101
SEAT BACK PANEL - BEIGE (BEIGE) - 364014599
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 981216102
SEAT BACK PANEL - AVORIO (IVORY) - 364014595
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 981216105
SEAT BACK PANEL - GRIGIO CHIARO (LIGHT GREY) - 364015381
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 981216107
SEAT BACK PANEL - BORDEAUX (BORDEAUX) - 364014601
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 981216108
SEAT BACK PANEL - CUOIO (HIDE) - 364014604
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 981216115
SEAT BACK PANEL - BLU "NAVY" ("NAVY" BLUE) - 364010345
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 981216116
SEAT BACK PANEL - GRIGIO MEDIO (MEDIUM GREY) - 364010015
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 981216119
SEAT BACK PANEL - CUOIO "SELLA" ("SELLA" HIDE) - 364015382
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 981216120
SEAT BACK PANEL - BLU MEDIO (MEDIUM BLUE) - 364015383
-Black "soft-touch"- -Not for seats with Leather/Texture lining- 		- 2 Enquire
25 984400042
SEAT BACK PANEL - NERO (BLACK) - 364014594 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400033
SEAT BACK PANEL - NERO (BLACK) - 364014594 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400035
SEAT BACK PANEL - NERO (BLACK) - 364014594 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400142
SEAT BACK PANEL - BEIGE (BEIGE) - 364014599 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400133
SEAT BACK PANEL - BEIGE (BEIGE) - 364014599 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400135
SEAT BACK PANEL - BEIGE (BEIGE) - 364014599 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400242
SEAT BACK PANEL - AVORIO (IVORY) - 364014595 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400233
SEAT BACK PANEL - AVORIO (IVORY) - 364014595 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400235
SEAT BACK PANEL - AVORIO (IVORY) - 364014595 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400542
SEAT BACK PANEL - GRIGIO CHIARO (LIGHT GREY) - 364015381 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400533
SEAT BACK PANEL - GRIGIO CHIARO (LIGHT GREY) - 364015381 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400535
SEAT BACK PANEL - GRIGIO CHIARO (LIGHT GREY) - 364015381 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400742
SEAT BACK PANEL - BORDEAUX (BORDEAUX) - 364014601 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400733
SEAT BACK PANEL - BORDEAUX (BORDEAUX) - 364014601 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400735
SEAT BACK PANEL - BORDEAUX (BORDEAUX) - 364014601 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400842
SEAT BACK PANEL - CUOIO (HIDE) - 364014604 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400833
SEAT BACK PANEL - CUOIO (HIDE) - 364014604 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984400835
SEAT BACK PANEL - CUOIO (HIDE) - 364014604 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401542
SEAT BACK PANEL - BLU "NAVY" ("NAVY" BLUE) - 364010345 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401533
SEAT BACK PANEL - BLU "NAVY" ("NAVY" BLUE) - 364010345 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401535
SEAT BACK PANEL - BLU "NAVY" ("NAVY" BLUE) - 364010345 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401642
SEAT BACK PANEL - GRIGIO MEDIO (MEDIUM GREY) - 364010015 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401633
SEAT BACK PANEL - GRIGIO MEDIO (MEDIUM GREY) - 364010015 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401635
SEAT BACK PANEL - GRIGIO MEDIO (MEDIUM GREY) - 364010015 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401942
SEAT BACK PANEL - CUOIO "SELLA" ("SELLA" HIDE) - 364015382 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401933
SEAT BACK PANEL - CUOIO "SELLA" ("SELLA" HIDE) - 364015382 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984401935
SEAT BACK PANEL - CUOIO "SELLA" ("SELLA" HIDE) - 364015382 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984402042
SEAT BACK PANEL - BLU MEDIO (MEDIUM BLUE) - 364015383 / GRIGIO NICKEL (NICKEL GREY) - 094079512
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984402033
SEAT BACK PANEL - BLU MEDIO (MEDIUM BLUE) - 364015383 / NERO (BLACK) - 094079513
Valid for seats with Leather/Texture lining 		- 2 Enquire
25 984402035
SEAT BACK PANEL - BLU MEDIO (MEDIUM BLUE) - 364015383 / BLU METAL (METAL BLUE) - 094079511
Valid for seats with Leather/Texture lining 		- 2 Enquire
26 980138290
SEAT UNHOOK LEVER 		$37.90 2
27 980145844
COMPLETE L.H. MICROSWITCH
Not for RHD 		$136.56 1
27 980145845
COMPLETE R.H. MICROSWITCH
Valid for RHD 		$100.85 1
28 386900313
RELEASE CLIP FOR SEAT LEVER 		$5.27 2
29 388100472
FRONT SHIELD FOR FRONT SEAT GUIDE 		$9.83 4

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
