Front Suspension

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - FRONT SUSPENSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
386600015 LH LOWER LEVER ASSY $2,117.45 To Order
Photo Part No Description Price (each) Stock
386600016 RH LOWER LEVER ASSY $2,117.45 To Order
Photo Part No Description Price (each) Stock
386600113 FLANBLOC $239.03 To Order
Photo Part No Description Price (each) Stock
386600390 BUSH $13.64 To Order
Photo Part No Description Price (each) Stock
15503811 NUT $2.00 IN STOCK
Photo Part No Description Price (each) Stock
386600389 BUSH $28.32 To Order
Photo Part No Description Price (each) Stock
386600340 SCREW $174.59 To Order
Photo Part No Description Price (each) Stock
14047511 NUT $2.42 To Order
Photo Part No Description Price (each) Stock
12647678 WASHER $2.56 To Order
Photo Part No Description Price (each) Stock

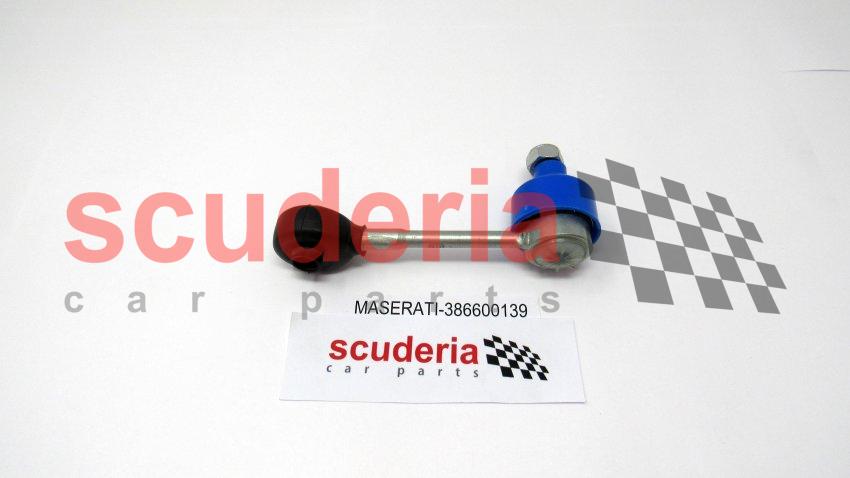

386600139 Tie-Rod $134.06 To Order
Photo Part No Description Price (each) Stock
386100163 BRAKES LH AIR DEFLECTOR $557.59 To Order
189133 BRAKES LH AIR DEFLECTOR $734.50 To Order
386100162 BRAKES RH AIR DEFLECTOR $435.10 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
386600441 NUT $3.00 IN STOCK
Photo Part No Description Price (each) Stock
14496824 BLANK WASHER Enquire To Order
Photo Part No Description Price (each) Stock
160019 JOINT LOWER PROTECTION $6.68 To Order
Photo Part No Description Price (each) Stock
386600338 SCREW $71.14 To Order
Photo Part No Description Price (each) Stock
13579861 WASHER $26.05 To Order
Photo Part No Description Price (each) Stock
377030378 WASHER $5.86 To Order
377030379 WASHER $7.11 To Order
377030380 WASHER $31.75 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
15503921 NUT $2.42 To Order
Photo Part No Description Price (each) Stock
11360221 SCREW $7.83 To Order
Photo Part No Description Price (each) Stock
386600027 FRONT LH SUSPENSION UPPER ARM $758.88 To Order
Photo Part No Description Price (each) Stock
386600028 FRONT RH SUSPENSION UPPER ARM $758.88 To Order
Photo Part No Description Price (each) Stock
386600129 BALL JOINT FOR UPPER LEVER $341.49 IN STOCK
Photo Part No Description Price (each) Stock
386600413 ADJUSTMENT TICKNESS $4.26 To Order
386600412 ADJUSTMENT TICKNESS $5.27 To Order
386600411 ADJUSTMENT TICKNESS $5.27 To Order
Photo Part No Description Price (each) Stock
386600408 RH BRAKE HOSE SUPPORT $9.26 To Order
386600407 LH BRAKE HOSE SUPPORT $9.26 To Order
Photo Part No Description Price (each) Stock
386600163 FLANBLOC $74.28 To Order
Photo Part No Description Price (each) Stock
386600416 Joint Protection $6.93 To Order
Photo Part No Description Price (each) Stock
14058521 NUT $2.42 IN STOCK
Photo Part No Description Price (each) Stock
12647678 WASHER $2.56 To Order
Photo Part No Description Price (each) Stock
386600425 WASHER $9.96 IN STOCK
386600426 WASHER $4.26 To Order
386600427 WASHER $3.43 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
15541521 SCREW $4.55 IN STOCK
Photo Part No Description Price (each) Stock
386600403 WASHER $11.09 To Order
View All

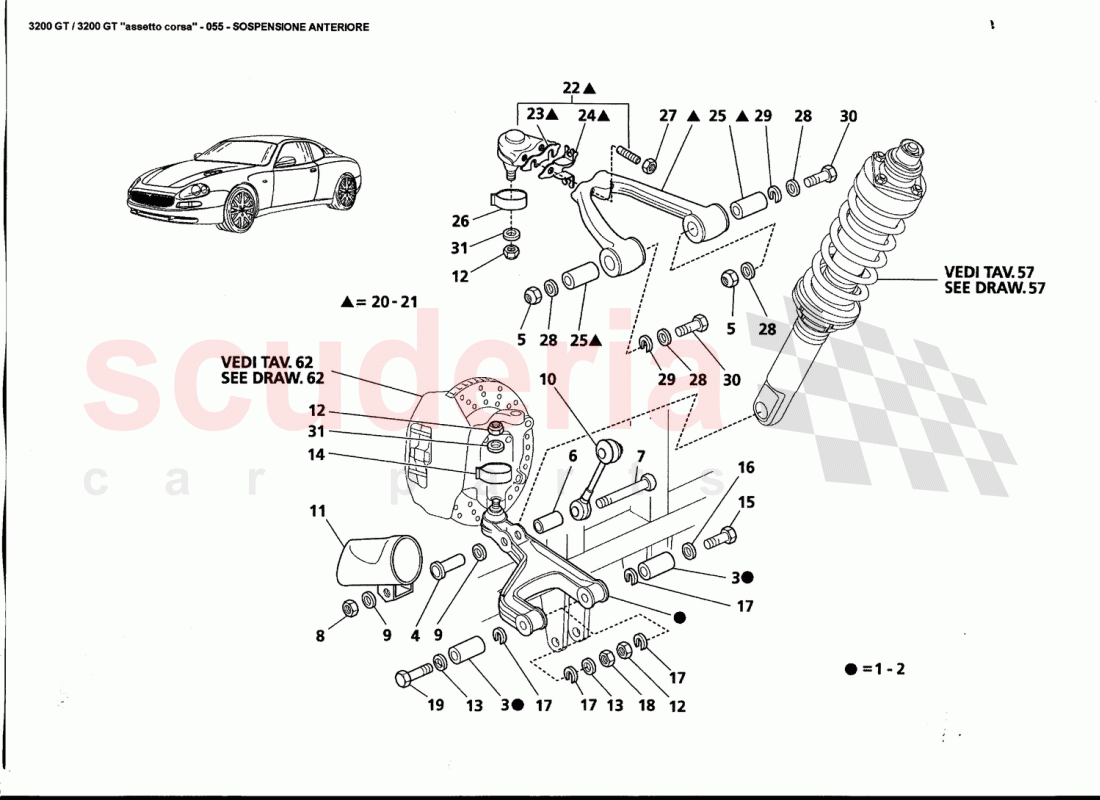

FRONT SUSPENSION of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 386600015
LH LOWER LEVER ASSY 		$2,117.45 1
2 386600016
RH LOWER LEVER ASSY 		$2,117.45 1
3 386600113
FLANBLOC 		$239.03 4
4 386600390
BUSH 		$13.64 2
5 15503811
NUT
IN STOCK 		$2.00 4
6 386600389
BUSH 		$28.32 2
7 386600340
SCREW 		$174.59 2
8 14047511
NUT 		$2.42 2
9 12647678
WASHER 		$2.56 4
10 386600139
Tie-Rod 		$134.06 2
11 386100163
BRAKES LH AIR DEFLECTOR
Standard 		$557.59 1
11 189133
BRAKES LH AIR DEFLECTOR
Optional / Racing trim 		$734.50 1
11 386100162
BRAKES RH AIR DEFLECTOR
Standard 		$435.10 1
11 189132
BRAKES RH AIR DEFLECTOR
Optional / Racing trim 		$734.50 1
12 386600441
NUT
IN STOCK 		$3.00 6
13 14496824
BLANK WASHER 		- 4 Enquire
14 160019
JOINT LOWER PROTECTION 		$6.68 2
15 386600338
SCREW 		$71.14 2
16 13579861
WASHER 		$26.05 2
17 377030378
WASHER
As necessary 		$5.86 -
17 377030379
WASHER
As necessary 		$7.11 -
17 377030380
WASHER
As necessary 		$31.75 -
17 377030381
WASHER
As necessary 		$7.11 -
17 377030382
WASHER
As necessary 		$8.39 -
18 15503921
NUT 		$2.42 2
19 11360221
SCREW 		$7.83 2
20 386600027
FRONT LH SUSPENSION UPPER ARM 		$758.88 1
21 386600028
FRONT RH SUSPENSION UPPER ARM 		$758.88 1
22 386600129
BALL JOINT FOR UPPER LEVER
IN STOCK 		$341.49 2
23 386600413
ADJUSTMENT TICKNESS
As necessary 		$4.26 -
23 386600412
ADJUSTMENT TICKNESS
As necessary 		$5.27 -
23 386600411
ADJUSTMENT TICKNESS
As necessary 		$5.27 -
24 386600408
RH BRAKE HOSE SUPPORT 		$9.26 1
24 386600407
LH BRAKE HOSE SUPPORT 		$9.26 1
25 386600163
FLANBLOC 		$74.28 4
26 386600416
Joint Protection 		$6.93 2
27 14058521
NUT
IN STOCK 		$2.42 4
28 12647678
WASHER 		$2.56 8
29 386600425
WASHER
As necessary
IN STOCK 		$9.96 -
29 386600426
WASHER
As necessary 		$4.26 -
29 386600427
WASHER
As necessary
IN STOCK 		$3.43 -
29 386600428
WASHER
As necessary 		$4.26 -
29 386600429
WASHER
As necessary
IN STOCK 		$3.43 -
30 15541521
SCREW
IN STOCK 		$4.55 (15% off) 4
31 386600403
WASHER 		$11.09 4
