Name: ALTERNATOR
Rating: 4.3 (1 reviews)

View All

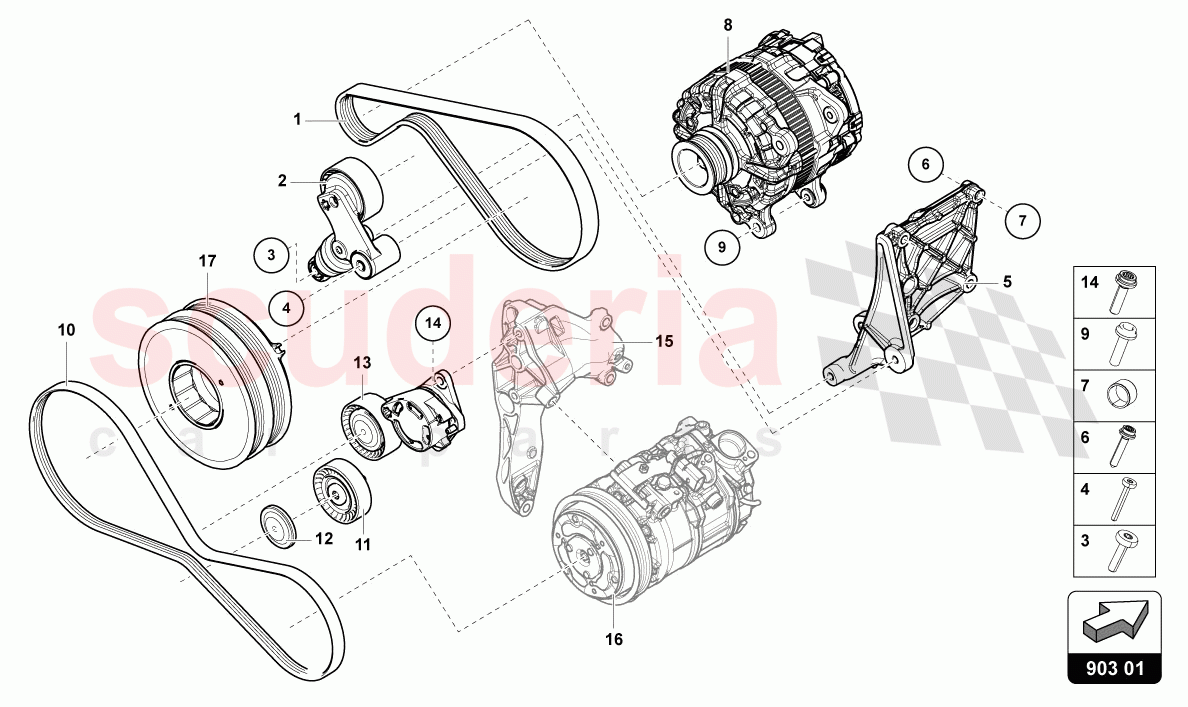

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2903137B	POLY-V-BELT	$74.29	To Order

Photo	Part No	Description	Price (each)	Stock
	P2903133B	BELT TENSIONER DAMPER	$231.85	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008066	HEXALOBULAR FLANGE SCREW	$2.96	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008035	HEXALOBULAR FLANGE SCREW	$2.96	To Order

Photo	Part No	Description	Price (each)	Stock
	P2903143	BRACKET FOR ALTERNATOR	$102.69	To Order

Photo	Part No	Description	Price (each)	Stock
	N10673001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	3L260817	CENTRE SLEEVE	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	6E903024T	ALTERNATOR	$1,659.96	To Order

Photo	Part No	Description	Price (each)	Stock
	N10636501	BOLT,HEX.HD.WITH SHOUL.(COMBI)	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	P2260849	POLY-V-BELT	$38.18	To Order

Photo	Part No	Description	Price (each)	Stock
	6M260938J	IDLER PULLEY WITH BOLT	$71.11	To Order

Photo	Part No	Description	Price (each)	Stock
	59903310B	DUST CAP	$5.59	To Order

Photo	Part No	Description	Price (each)	Stock
	P2260938C	DRIVE BELT TENSIONER DAMPER	$114.82	To Order

Photo	Part No	Description	Price (each)	Stock
	N91157202	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$3.16	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	P2903137B	POLY-V-BELT	P2903137B POLY-V-BELT 6PK:21 -36X897	$74.29	1
2	P2903133B	BELT TENSIONER DAMPER	P2903133B BELT TENSIONER DAMPER	$231.85	1
3	WHT008066	HEXALOBULAR FLANGE SCREW	WHT008066 HEXALOBULAR FLANGE SCREW M8X33	$2.96	1
4	WHT008035	HEXALOBULAR FLANGE SCREW	WHT008035 HEXALOBULAR FLANGE SCREW M8X60	$2.96	1
5	P2903143	BRACKET FOR ALTERNATOR	P2903143 BRACKET FOR ALTERNATOR	$102.69	1
6	N10673001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N10673001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M8X40	$1.81	4
7	3L260817	CENTRE SLEEVE	3L260817 CENTRE SLEEVE 11 -15X6,5	$2.23 MSRP: ~~7.10~~ (68.6% off)	2
8	6E903024T	ALTERNATOR	6E903024T ALTERNATOR 160-250A	$1,659.96	1
9	N10636501	BOLT,HEX.HD.WITH SHOUL.(COMBI)	N10636501 BOLT,HEX.HD.WITH SHOUL.(COMBI) M8X90	$4.10	2
10	P2260849	POLY-V-BELT	P2260849 POLY-V-BELT 4PK:14 -24X1090	$38.18	1
11	6M260938J	IDLER PULLEY WITH BOLT	6M260938J IDLER PULLEY WITH BOLT 65MM	$71.11	1
12	59903310B	DUST CAP	59903310B DUST CAP	$5.59	1
13	P2260938C	DRIVE BELT TENSIONER DAMPER	P2260938C DRIVE BELT TENSIONER DAMPER	$114.82	1
14	N91157202	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91157202 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X30	$3.16	2
