Name: AXLE SHAFT
Rating: 4.4 (1 reviews)

View All

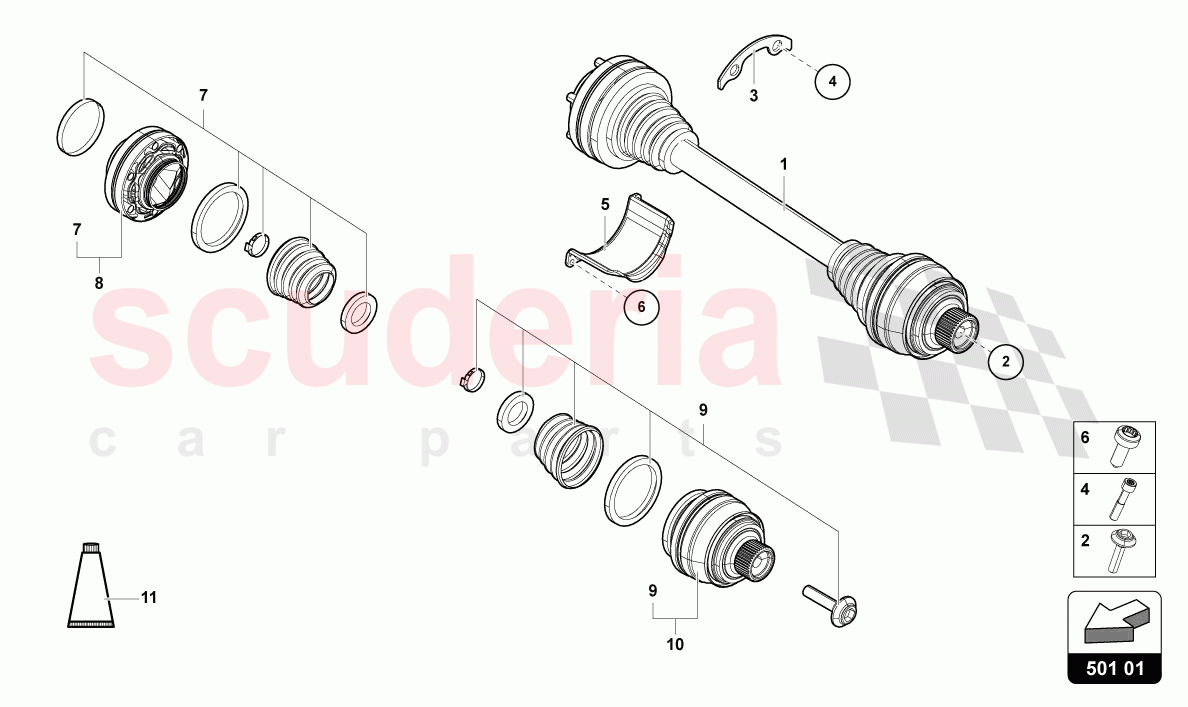

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0501201F	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	$981.20	To Order
	4M0501204R	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	$981.20	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$13.54	To Order

Photo	Part No	Description	Price (each)	Stock
	7L0501357D	SPACER	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	N90097204	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0598201A	JOINT PROTECTIVE BOOT WITH ASSEMBLY ITEMS AND GREASE	$68.15	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0598103A	CONSTANT VELOCITY JOINT WITH BOOT, ATTACHMENT PARTS AND GREASE	$594.10	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0598203A	JOINT PROTECTIVE BOOT WITH ASSEMBLY ITEMS AND GREASE	$68.15	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0598099A	OUTER JOINT WITH ASSEMBLY PARTS	$594.10	To Order

Photo	Part No	Description	Price (each)	Stock
	D454300A2	SEALANT	$102.96	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4M0501201F	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	4M0501201F DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS LEFT	$981.20	1
1	4M0501204R	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	4M0501204R DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS RIGHT	$981.20	1
2	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	8E0407643A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M16X1 -5X72	$13.54	2
3	7L0501357D	SPACER	7L0501357D SPACER	$2.08	6
4	N90097204	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90097204 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X48X26	$3.98	12
7	4M0598201A	JOINT PROTECTIVE BOOT WITH ASSEMBLY ITEMS AND GREASE	4M0598201A JOINT PROTECTIVE BOOT WITH ASSEMBLY ITEMS AND GREASE INNER	$68.15	2
8	4M0598103A	CONSTANT VELOCITY JOINT WITH BOOT, ATTACHMENT PARTS AND GREASE	4M0598103A CONSTANT VELOCITY JOINT WITH BOOT, ATTACHMENT PARTS AND GREASE REAR - INNER	$594.10	2
9	4M0598203A	JOINT PROTECTIVE BOOT WITH ASSEMBLY ITEMS AND GREASE	4M0598203A JOINT PROTECTIVE BOOT WITH ASSEMBLY ITEMS AND GREASE REAR - OUTER	$68.15	2
10	4M0598099A	OUTER JOINT WITH ASSEMBLY PARTS	4M0598099A OUTER JOINT WITH ASSEMBLY PARTS	$594.10	2
11	D454300A2	SEALANT	D454300A2 SEALANT 125G	$102.96	1
