Name: BRAKE AND ACCEL. LEVER MECH.
Rating: 4.7 (1 reviews)

View All

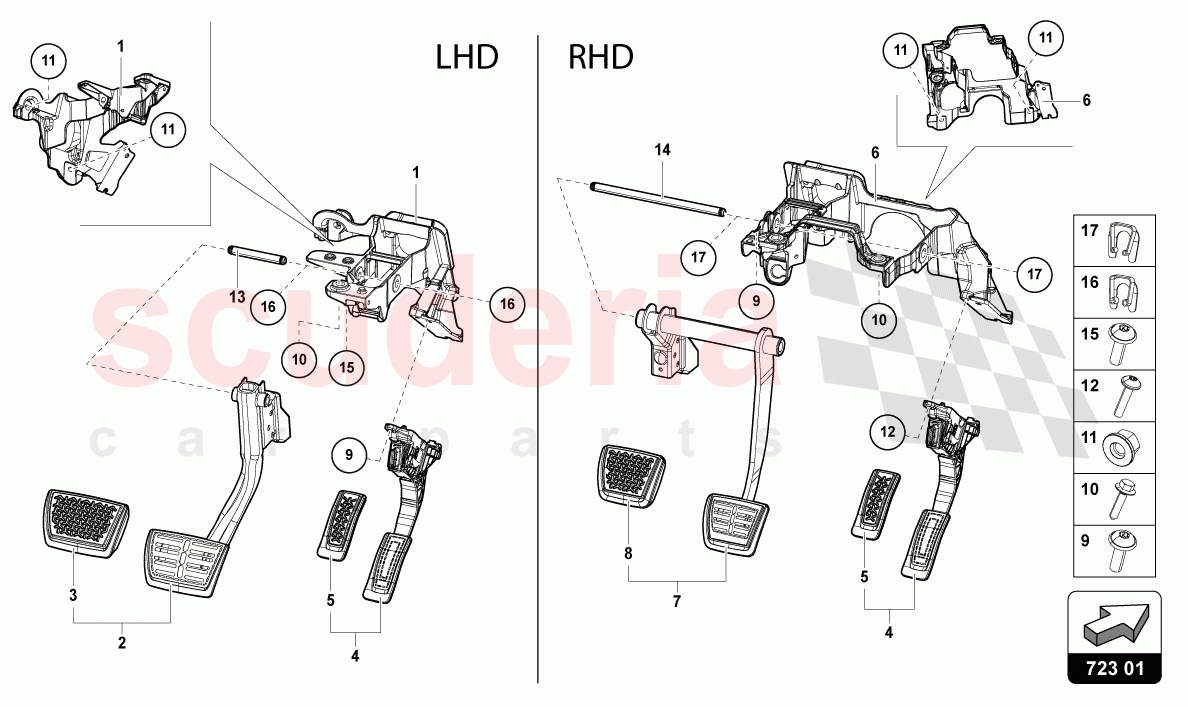

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M1723117E	BRACKET FOR PEDAL CLUSTER	$276.90	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML723140	BRAKE PEDAL	$186.15	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML723173	CAP FOR FOOT BRAKE PEDAL	$79.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML723523	ACCELERATOR PEDAL	$161.28	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	N10805001	HEXAGON HEAD BOLT (COMBI)	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	N90456002	HEXAGON COLLAR NUT	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	N10734001	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	8D1723309A	PIN	$13.85	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	N90070305	RETAINING WASHER	$0.85	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4M1723117E	BRACKET FOR PEDAL CLUSTER	4M1723117E BRACKET FOR PEDAL CLUSTER LHD	$276.90	1
2	4ML723140	BRAKE PEDAL	4ML723140 BRAKE PEDAL LHD	$186.15	1
3	4ML723173	CAP FOR FOOT BRAKE PEDAL	4ML723173 CAP FOR FOOT BRAKE PEDAL LHD	$79.56	1
4	4ML723523	ACCELERATOR PEDAL	4ML723523 ACCELERATOR PEDAL	$161.28	1
6	4M2723117E	BRACKET FOR PEDAL CLUSTER	4M2723117E BRACKET FOR PEDAL CLUSTER RHD	$243.94	1
7	4ML723140A	BRAKE PEDAL	4ML723140A BRAKE PEDAL RHD	$224.47	1
8	4ML723173A	CAP FOR FOOT BRAKE PEDAL	4ML723173A CAP FOR FOOT BRAKE PEDAL RHD	$80.23	1
9	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT M6X18	$0.85	3
10	N10805001	HEXAGON HEAD BOLT (COMBI)	N10805001 HEXAGON HEAD BOLT (COMBI) M8X35	$1.32	2
11	N90456002	HEXAGON COLLAR NUT	N90456002 HEXAGON COLLAR NUT M6	$1.96	2
12	N10734001	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10734001 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M6X28	$1.29	2
13	8D1723309A	PIN	8D1723309A PIN LHD	$13.85	1
14	8K2721329	PIVOT PIN	8K2721329 PIVOT PIN RHD	$16.80	1
15	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT M6X18	$0.85	1
16	N90070305	RETAINING WASHER	N90070305 RETAINING WASHER LHD	$0.85	2
17	N91148401	RETAINING WASHER	N91148401 RETAINING WASHER RHD	$1.13	2
