Name: COOLING SYSTEM FOR GEAR OIL
Rating: 4.5 (1 reviews)

COOLING SYSTEM FOR GEAR OIL of Lamborghini Lamborghini Urus (2019-2022)

View All

Lamborghini Urus (2019-2022) - COOLING SYSTEM FOR GEAR OIL (317.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9E409069	O-RING	$10.96	To Order

Photo	Part No	Description	Price (each)	Stock
	8W0317021C	GEAR OIL COOLER	$250.01	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0317021G	GEAR OIL COOLER	$454.29	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0317818AF	OIL PRESSURE LINE	$105.52	To Order

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-RING	$4.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4N0317817AF	OIL PRESSURE LINE	$109.02	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686902	SPRING BAND CLAMP	$5.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91142201	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	$7.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0122448J	COOLANT HOSE	$49.40	To Order

Photo	Part No	Description	Price (each)	Stock
	3C0121093D	HOSE BRACKET	$4.98	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	$0.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	$7.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0121305BC	SOLENOID VALVE WITH HOLDER	$169.36	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124309	OVAL HEXAGON SOCKET HEAD BOLT	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121651A	HEAT REFLECTIVE MAT	$11.41	To Order

Photo	Part No	Description	Price (each)	Stock
	N90958903	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121056AQ	COOLANT HOSE	$11.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121444D	COOLANT HOSE	$10.91	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121449ED	COOLANT HOSE	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121485CQ	COOLANT PIPE	$61.84	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	$1.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0121449EE	COOLANT HOSE	$14.80	To Order

View All

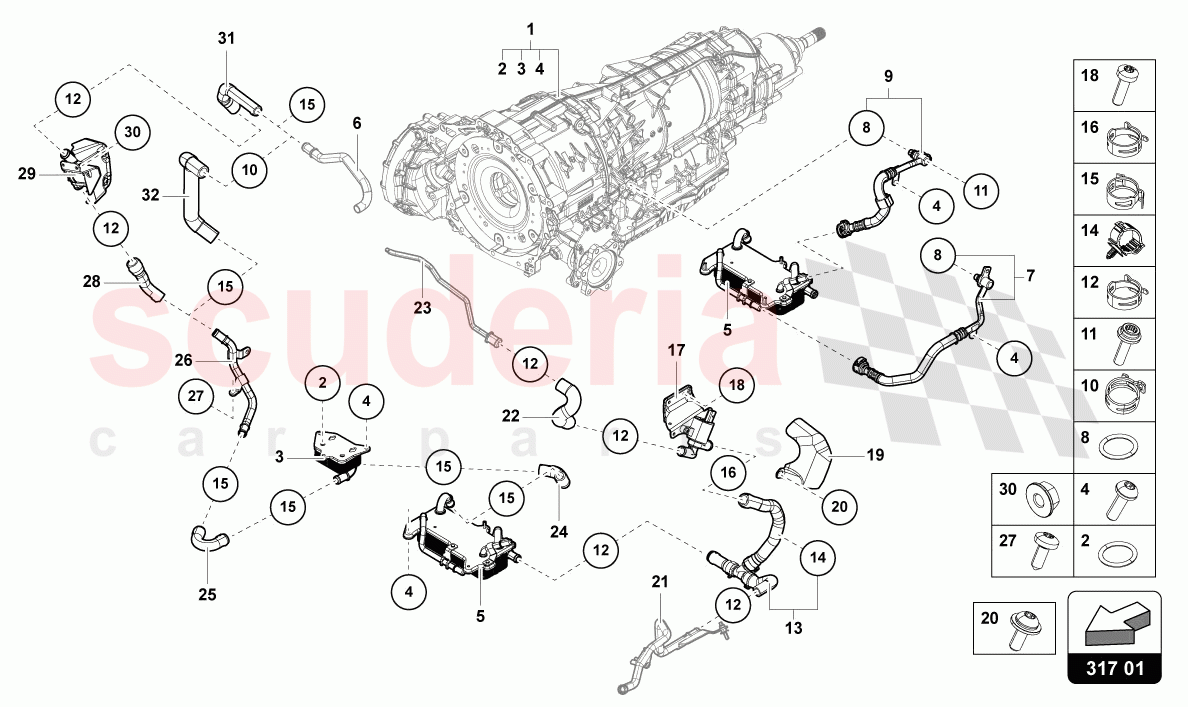

Diagram Tap to enlarge

Cooling System For Gear Oil

Lamborghini Urus (2019-2022)

Illustration Number: 317.01.00

Lamborghini Urus (2019-2022) - COOLING SYSTEM FOR GEAR OIL (317.01.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	9E409069	O-RING	9E409069 O-RING	$10.96	2
3	8W0317021C	GEAR OIL COOLER	8W0317021C GEAR OIL COOLER	$250.01	1
4	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18 IN STOCK	$1.34	3
5	4M0317021G	GEAR OIL COOLER	4M0317021G GEAR OIL COOLER	$454.29	1
7	4N0317818AF	OIL PRESSURE LINE	4N0317818AF OIL PRESSURE LINE FEED	$105.52	1
8	N90666003	O-RING IN STOCK	N90666003 O-RING 11 -5X3 IN STOCK	$4.64	1
9	4N0317817AF	OIL PRESSURE LINE	4N0317817AF OIL PRESSURE LINE RETURN	$109.02	1
10	N90686902	SPRING BAND CLAMP IN STOCK	N90686902 SPRING BAND CLAMP 23X12 IN STOCK	$5.72	1
11	N91142201	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91142201 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$1.25	1
12	N90687001	SPRING BAND CLAMP IN STOCK	N90687001 SPRING BAND CLAMP 27X12 IN STOCK	$7.56	2
13	4M0122448J	COOLANT HOSE	4M0122448J COOLANT HOSE	$49.40	1
14	3C0121093D	HOSE BRACKET	3C0121093D HOSE BRACKET 23	$4.98	1
15	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP 23X12 IN STOCK	$0.94	9
16	N90687001	SPRING BAND CLAMP IN STOCK	N90687001 SPRING BAND CLAMP 27X12 IN STOCK	$7.56	4
17	4M0121305BC	SOLENOID VALVE WITH HOLDER	4M0121305BC SOLENOID VALVE WITH HOLDER	$169.36	1
18	N10124309	OVAL HEXAGON SOCKET HEAD BOLT	N10124309 OVAL HEXAGON SOCKET HEAD BOLT M6X20	$0.83	2
19	4M0121651A	HEAT REFLECTIVE MAT	4M0121651A HEAT REFLECTIVE MAT	$11.41	1
20	N90958903	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N90958903 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X16	$1.55 MSRP: ~~7.29~~ (78.7% off)	2
22	4M0121056AQ	COOLANT HOSE	4M0121056AQ COOLANT HOSE	$11.41	1
24	4M0121444D	COOLANT HOSE	4M0121444D COOLANT HOSE	$10.91	1
25	4M0121449ED	COOLANT HOSE	4M0121449ED COOLANT HOSE	$6.20	1
26	4M0121485CQ	COOLANT PIPE	4M0121485CQ COOLANT PIPE	$61.84	1
27	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$1.63	2
30	N01508210	HEXAGON COLLAR NUT IN STOCK	N01508210 HEXAGON COLLAR NUT M6 IN STOCK	$1.96	2
32	4M0121449EE	COOLANT HOSE	4M0121449EE COOLANT HOSE	$14.80	1
