Find Your Part

View All

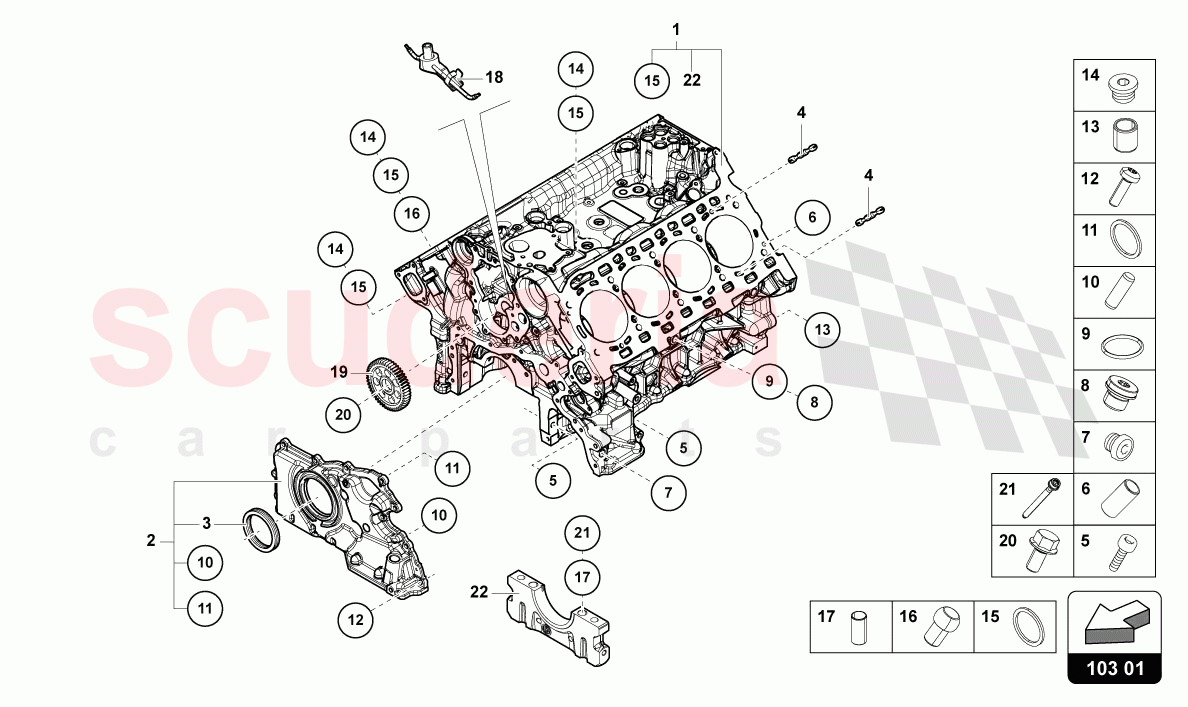

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2103153F	SEALING FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M103051B	SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103271	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008054	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	55105277	SPRING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91180601	SEAL BOLT (COMBINATION)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008060A	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10693001	CYLINDER PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007840A	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22103139B	DOWEL SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005804	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138272	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103035	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M103158R	JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103813B	GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10768201	FITTED BOLT, HEXAGON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008091	MULTI-POINT SOCKET HEAD BOLT WITH COLLAR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	P2103153F	SEALING FLANGE	P2103153F SEALING FLANGE FRONT	-	1	Enquire
3	6M103051B	SHAFT OIL SEAL	6M103051B SHAFT OIL SEAL	-	1	Enquire
4	P2103271	RESTRICTOR	P2103271 RESTRICTOR	-	4	Enquire
5	WHT008054	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	WHT008054 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X30	-	10	Enquire
6	55105277	SPRING PIN	55105277 SPRING PIN	-	4	Enquire
7	N91180601	SEAL BOLT (COMBINATION)	N91180601 SEAL BOLT (COMBINATION) M14X1 -5X12	-	1	Enquire
8	WHT008060A	SEALING PLUG	WHT008060A SEALING PLUG M14X1 -5	-	1	Enquire
10	N10693001	CYLINDER PIN	N10693001 CYLINDER PIN 6X18	-	2	Enquire
11	WHT007840A	O-RING	WHT007840A O-RING 26X3	-	1	Enquire
12	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT M6X20	-	10	Enquire
13	22103139B	DOWEL SLEEVE	22103139B DOWEL SLEEVE 16X13 -5	-	2	Enquire
14	WHT005804	SEALING PLUG	WHT005804 SEALING PLUG M22X1 -5	-	2	Enquire
15	N0138272	SEAL RING	N0138272 SEAL RING 22X27 N013827	-	2	Enquire
16	P2103035	SEALING PLUG	P2103035 SEALING PLUG	-	1	Enquire
18	6M103158R	JET	6M103158R JET	-	4	Enquire
19	P2103813B	GEAR	P2103813B GEAR	-	1	Enquire
20	N10768201	FITTED BOLT, HEXAGON HEAD	N10768201 FITTED BOLT, HEXAGON HEAD M10X20	-	1	Enquire
21	WHT008091	MULTI-POINT SOCKET HEAD BOLT WITH COLLAR	WHT008091 MULTI-POINT SOCKET HEAD BOLT WITH COLLAR M10X111	-	20	Enquire
