Washer System

Lamborghini Revuelto Coupe

Illustration Number: 955.02.00

Find Your Part

Lamborghini Revuelto Coupe - WASHER SYSTEM (955.02.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B955449 WASHER FLUID Enquire To Order
Photo Part No Description Price (each) Stock
7M0919376 WATER LEVEL SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
7M0919382 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
1K5955651 WINDSCREEN WASHER SYSTEM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
8A0955465 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
47B955944 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
47B955972 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
47B955964 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
113955975C VALVE Enquire To Order
Photo Part No Description Price (each) Stock
3B0955665C ELBOW FITTING Enquire To Order
Photo Part No Description Price (each) Stock
85H955987B GETTO, C. PREREGIS Enquire To Order
85H955988B GETTO, C. PREREGIS Enquire To Order
9Y0955985B SPRUZZATORE/UGELLO Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
N90681401 CORRUGATED TUBE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
N90937701 CABLE TIES Enquire To Order
Photo Part No Description Price (each) Stock
N90657701 SPEED NUT Enquire To Order
Photo Part No Description Price (each) Stock
N90107607 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
N10700202 SCREW M6X22 Enquire To Order
Photo Part No Description Price (each) Stock
N91180901 FLAT HEAD MULTI-POINT SOCKET BOLT Enquire To Order
Photo Part No Description Price (each) Stock
47B857869 FOAM PART Enquire To Order
View All

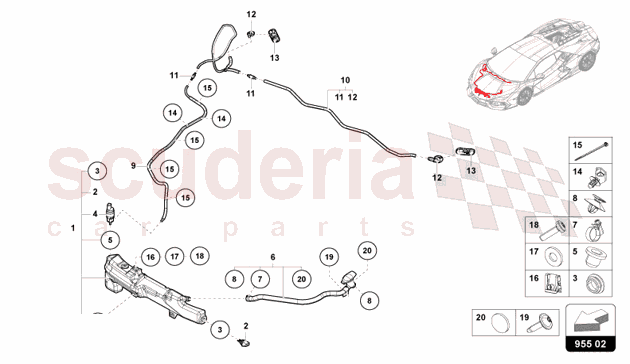

WASHER SYSTEM of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B955449
WASHER FLUID 		- 1 Enquire
2 7M0919376
WATER LEVEL SWITCH 		- 1 Enquire
3 7M0919382
SEAL RING 		- 1 Enquire
4 1K5955651
WINDSCREEN WASHER SYSTEM PUMP 		- 1 Enquire
5 8A0955465
SEAL RING 		- 1 Enquire
6 47B955944
HOSE 		- 1 Enquire
9 47B955972
HOSE 		- 1 Enquire
10 47B955964
HOSE 		- 1 Enquire
11 113955975C
VALVE 		- 1 Enquire
12 3B0955665C
ELBOW FITTING
6X1 		- 1 Enquire
13 85H955987B
GETTO, C. PREREGIS
CONSULT TPI_LB74X. 01.25 BEFORE ORDER-LEFT 		- 1 Enquire
13 85H955988B
GETTO, C. PREREGIS
CONSULT TPI_LB74X. 01.25 BEFORE ORDER-RIGHT 		- 1 Enquire
13 9Y0955985B
SPRUZZATORE/UGELLO
CONSULT TPI_LB74X. 01.25 BEFORE ORDER-RIGHT 		- 1 Enquire
13 9Y0955985C
SPRUZZATORE/UGELLO
CONSULT TPI_LB74X. 01.25 BEFORE ORDER-LEFT 		- 1 Enquire
14 N90681401
CORRUGATED TUBE CLIP 		- 1 Enquire
15 N90937701
CABLE TIES
4.6X193 OUTER 		- 1 Enquire
16 N90657701
SPEED NUT 		- 1 Enquire
17 N90107607
WASHER
8,2X18X2 		- 1 Enquire
18 N10700202
SCREW M6X22
VITE M6X22-M6X22 		- 1 Enquire
19 N91180901
FLAT HEAD MULTI-POINT SOCKET BOLT
M5X20 		- 1 Enquire
20 47B857869
FOAM PART
ONLY FOR SERVICE - UNTIL VIN 334-INCLUDED IN REF.6 		- 1 Enquire
