Lamborghini Revuelto Coupe - ELECTRICS LHD (937.02.00)

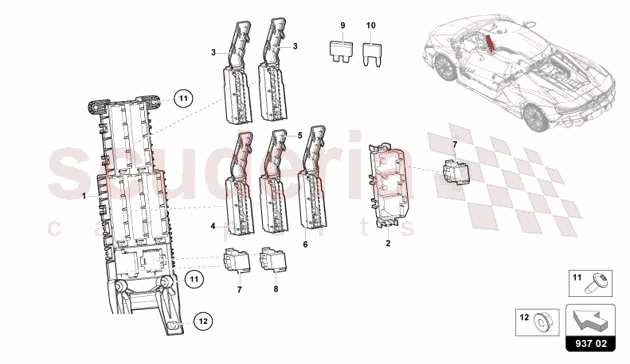

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B937149A	FUSE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0937503	RELAY PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0941824	FUSE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4F1941824A	FUSE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0941824	FUSE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0941824D	FUSE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0937527	RELAY PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0937527	RELAY PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01713111	FLAT FUSE 19/2X5	Enquire	To Order
	N01713112	FLAT FUSE 19/2X5	Enquire	To Order
	N01713113	FLAT FUSE 19/2X5	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10261510	FLAT FUSE 10/2X2,8	Enquire	To Order
	N10261514	FLAT FUSE 10/2X2,8	Enquire	To Order
	N10261515	FLAT FUSE 10/2X2,8	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10748001	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B937149A	FUSE HOLDER	47B937149A FUSE HOLDER	-	1	Enquire
2	4G0937503	RELAY PLATE	4G0937503 RELAY PLATE	-	1	Enquire
3	4H0941824	FUSE HOLDER	4H0941824 FUSE HOLDER 16 PIN	-	1	Enquire
4	4F1941824A	FUSE HOLDER	4F1941824A FUSE HOLDER	-	1	Enquire
5	4H0941824	FUSE HOLDER	4H0941824 FUSE HOLDER 16 PIN	-	1	Enquire
6	8K0941824D	FUSE HOLDER	8K0941824D FUSE HOLDER 12 PIN	-	1	Enquire
7	4H0937527	RELAY PLATE	4H0937527 RELAY PLATE 9 PIN BLACK	-	1	Enquire
8	4B0937527	RELAY PLATE	4B0937527 RELAY PLATE	-	1	Enquire
9	N01713111	FLAT FUSE 19/2X5	N01713111 FLAT FUSE 19/2X5 10A -RED-	-	1	Enquire
9	N01713112	FLAT FUSE 19/2X5	N01713112 FLAT FUSE 19/2X5 15A -LT BLUE-	-	1	Enquire
9	N01713113	FLAT FUSE 19/2X5	N01713113 FLAT FUSE 19/2X5 20A -YELLOW-	-	1	Enquire
9	N01713114	FLAT FUSE 19/2X5	N01713114 FLAT FUSE 19/2X5 25A -CL.GLASS-	-	1	Enquire
9	N01713115	FLAT FUSE 19/2X5	N01713115 FLAT FUSE 19/2X5 30A-LT GREEN-	-	1	Enquire
9	N01713118	FLAT FUSE 19/2X5	N01713118 FLAT FUSE 19/2X5 7.5A -BROWN-	-	1	Enquire
9	N01713120	FLAT FUSE 19/2X5	N01713120 FLAT FUSE 19/2X5 40A -ORANGE-	-	1	Enquire
9	N01713122	FLAT FUSE 19/2X5	N01713122 FLAT FUSE 19/2X5 35A -BLUE/GREEN-	-	1	Enquire
10	N10261510	FLAT FUSE 10/2X2,8	N10261510 FLAT FUSE 10/2X2,8 1A -BLACK-	-	1	Enquire
10	N10261514	FLAT FUSE 10/2X2,8	N10261514 FLAT FUSE 10/2X2,8 5A-HELLBRAUN-	-	1	Enquire
10	N10261515	FLAT FUSE 10/2X2,8	N10261515 FLAT FUSE 10/2X2,8 7,5A-BRAUN-	-	1	Enquire
10	N10261516	FLAT FUSE 10/2X2,8	N10261516 FLAT FUSE 10/2X2,8 10A-ROT-	-	1	Enquire
10	N10261517	FLAT FUSE 10/2X2,8	N10261517 FLAT FUSE 10/2X2,8 15A - RED	-	1	Enquire
11	N10748001	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N10748001 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING 6X16	-	1	Enquire
12	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	1	Enquire
