COOLING of Lamborghini Lamborghini Revuelto Coupe

View All

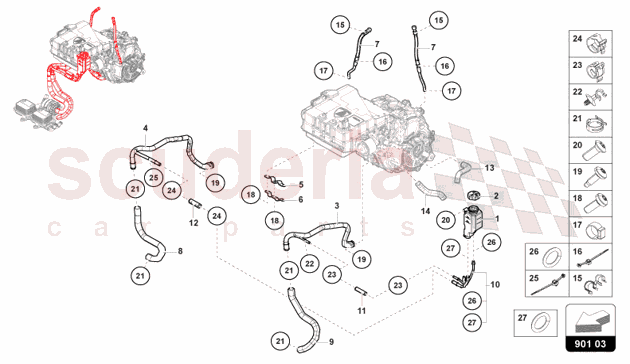

Lamborghini Revuelto Coupe - COOLING (901.03.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EQ901229	TANK YASA OIL SYSTEM	Enquire	To Order
	EQ901229B	COOLING UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B611349	SCREW CAP TAPPO SERBATOIO OL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901202	PIPE OIL COOLER EMOTOR (INLET)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901205	PIPE OIL COOLER EMOTOR (OUTLET)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901637	BRACKET FIXING OIL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901638	BRACKET CLOSING OIL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1S409831B	VENT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901303	PREFORMED PIPE EMOTOR-OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901313	PREFORMED PIPE OIL COOLER-EMOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901160	CONNECTING CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901305	BREATHER PIPE OIL SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EQ901306	PIPE OIL SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10528002	RETAINER, SWIVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0971838	CABLE TIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10198301	EAR CRIMP HOSE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10451405	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90957802	HEXALOBULAR SOCKETM5X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10289702	HEXALOBULAR SOCKETM6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10416402	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986501	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90926401	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0971838N	CABLE TIES WITH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B198012	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B198012A	SEAL RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	EQ901229	TANK YASA OIL SYSTEM	EQ901229 TANK YASA OIL SYSTEM UNTIL VIN LA00313	-	1	Enquire
1	EQ901229B	COOLING UNIT	EQ901229B COOLING UNIT FROM VIN LA00314	-	1	Enquire
2	47B611349	SCREW CAP TAPPO SERBATOIO OL	47B611349 SCREW CAP TAPPO SERBATOIO OL	-	1	Enquire
3	EQ901202	PIPE OIL COOLER EMOTOR (INLET)	EQ901202 PIPE OIL COOLER EMOTOR (INLET)	-	1	Enquire
4	EQ901205	PIPE OIL COOLER EMOTOR (OUTLET)	EQ901205 PIPE OIL COOLER EMOTOR (OUTLET)	-	1	Enquire
5	EQ901637	BRACKET FIXING OIL PIPE	EQ901637 BRACKET FIXING OIL PIPE	-	1	Enquire
6	EQ901638	BRACKET CLOSING OIL PIPE	EQ901638 BRACKET CLOSING OIL PIPE	-	1	Enquire
7	1S409831B	VENT HOSE	1S409831B VENT HOSE	-	1	Enquire
8	EQ901303	PREFORMED PIPE EMOTOR-OIL PUMP	EQ901303 PREFORMED PIPE EMOTOR-OIL PUMP	-	1	Enquire
9	EQ901313	PREFORMED PIPE OIL COOLER-EMOTOR	EQ901313 PREFORMED PIPE OIL COOLER-EMOTOR	-	1	Enquire
10	EQ901160	CONNECTING CABLE	EQ901160 CONNECTING CABLE	-	1	Enquire
11	EQ901305	BREATHER PIPE OIL SYSTEM	EQ901305 BREATHER PIPE OIL SYSTEM	-	1	Enquire
12	EQ901306	PIPE OIL SYSTEM	EQ901306 PIPE OIL SYSTEM	-	1	Enquire
15	N10528002	RETAINER, SWIVEL	N10528002 RETAINER, SWIVEL 18X14	-	1	Enquire
16	3W0971838	CABLE TIES	3W0971838 CABLE TIES 4,6X193MM 6,5/0,3-3,0MM	-	1	Enquire
17	N10198301	EAR CRIMP HOSE CLAMP	N10198301 EAR CRIMP HOSE CLAMP 13.3X7X0.6	-	1	Enquire
18	N10451405	OVAL HEXAGON SOCKET HEAD BOLT	N10451405 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	1	Enquire
19	N90957802	HEXALOBULAR SOCKETM5X16	N90957802 HEXALOBULAR SOCKETM5X16	-	1	Enquire
20	N10289702	HEXALOBULAR SOCKETM6X16	N10289702 HEXALOBULAR SOCKETM6X16	-	1	Enquire
21	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP 27X12	-	1	Enquire
22	N10416402	BRACKET	N10416402 BRACKET 8X13	-	1	Enquire
23	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP 14,5X12	-	1	Enquire
24	N90926401	SPRING BAND CLAMP	N90926401 SPRING BAND CLAMP 19X12	-	1	Enquire
25	3D0971838N	CABLE TIES WITH BRACKET	3D0971838N CABLE TIES WITH BRACKET	-	1	Enquire
26	47B198012	SEAL RING	47B198012 SEAL RING 6,75X1,78	-	1	Enquire
27	47B198012A	SEAL RING	47B198012A SEAL RING 11,5 X 2	-	1	Enquire

DRIVE FRONT (901.01.00)

COOLING (901.02.00)

COOLING (901.03.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Cooling

Lamborghini Revuelto Coupe

Illustration Number: 901.03.00

Lamborghini Revuelto Coupe - COOLING (901.03.00)
