Drive Front

Lamborghini Revuelto Coupe

Illustration Number: 901.01.00

Find Your Part

Lamborghini Revuelto Coupe - DRIVE FRONT (901.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
MQ300041A TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
MQ300040A TRASMISSION Enquire To Order
Photo Part No Description Price (each) Stock
6C0919136 PLUG RECEPTACLE Enquire To Order
Photo Part No Description Price (each) Stock
47B311757 SECURING PART Enquire To Order
Photo Part No Description Price (each) Stock
B9525151 OIL DRAIN PLUG, MAGNETIC Enquire To Order
Photo Part No Description Price (each) Stock
EQ525820 TAPPO OLIO M18 Enquire To Order
Photo Part No Description Price (each) Stock
MQ409085 RADIAL SHAFT SEAL Enquire To Order
Photo Part No Description Price (each) Stock
MQ409085A RADIAL SHAFT SEAL Enquire To Order
Photo Part No Description Price (each) Stock
MQ311499 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
47B915463 FUSE Enquire To Order
Photo Part No Description Price (each) Stock
EQ998017 COMPLETE E-AXLE YASA INTEGRATION Enquire To Order
EQ901131A COMPLETE E-AXLE YASA INTEGRATION Enquire To Order
EQ998017A ELECTRIC DRIVE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
EQ901112 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
WHT011655 HEXALOBULAR FLANGE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
95978921 CRANKSHAFT RETAINER TOOL Enquire To Order
Photo Part No Description Price (each) Stock
N10623102 CABLE TIES Enquire To Order
Photo Part No Description Price (each) Stock
95978924 TOO MOVIMENTAZIONE BATTERIA Enquire To Order
Photo Part No Description Price (each) Stock
N10544302 SCREW M5X25 Enquire To Order
Photo Part No Description Price (each) Stock
EQ901152 STATOR TEMPERATURE SENSOR ASSY Enquire To Order
Photo Part No Description Price (each) Stock
6C0919136 PLUG RECEPTACLE Enquire To Order
Photo Part No Description Price (each) Stock
WHT011339 HEXAGON SOCKET FLAT Enquire To Order
View All

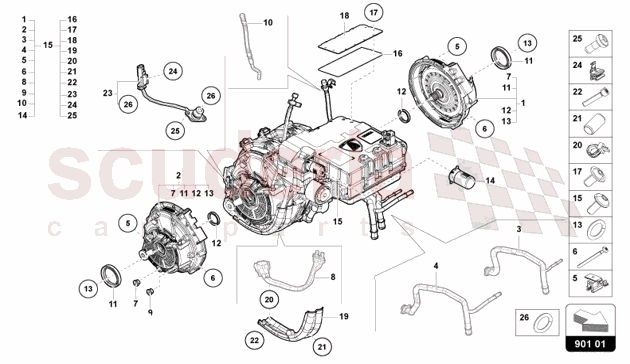

DRIVE FRONT of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 MQ300041A
TRANSMISSION
LEFT 		- 1 Enquire
2 MQ300040A
TRASMISSION
RIGHT 		- 1 Enquire
5 6C0919136
PLUG RECEPTACLE 		- 1 Enquire
6 47B311757
SECURING PART 		- 1 Enquire
7 B9525151
OIL DRAIN PLUG, MAGNETIC
M18X1,5 		- 1 Enquire
9 EQ525820
TAPPO OLIO M18 		- 1 Enquire
11 MQ409085
RADIAL SHAFT SEAL 		- 1 Enquire
12 MQ409085A
RADIAL SHAFT SEAL 		- 1 Enquire
13 MQ311499
O-RING 		- 1 Enquire
14 47B915463
FUSE 		- 1 Enquire
15 EQ998017
COMPLETE E-AXLE YASA INTEGRATION
ONLY FOR CHINA MARKET ORDER ALSO REF.27 		- 1 Enquire
15 EQ901131A
COMPLETE E-AXLE YASA INTEGRATION
NOT FOR CHINA , SOUTH KOREA AND BRAZIL 		- 1 Enquire
15 EQ998017A
ELECTRIC DRIVE
ONLY FOR JAPAN, CHINA,SOUTH KOREA CHINA AND BRAZIL MARKET - ONLY FOR CHINA ORDER ALSO REF.27-AND ONLY FOR CHINA MARKET ORDER ALSO REF.27 		- 1 Enquire
15 EQ901131B
ELECTRIC DRIVE
ONLY FOR JAPAN, SOUTH KOREA AND BRAZIL MARKET 		- 1 Enquire
16 EQ901112
GASKET 		- 1 Enquire
17 WHT011655
HEXALOBULAR FLANGE SCREW 		- 1 Enquire
19 95978921
CRANKSHAFT RETAINER TOOL 		- 1 Enquire
20 N10623102
CABLE TIES
C4.6X193 OUTER 		- 1 Enquire
21 95978924
TOO MOVIMENTAZIONE BATTERIA 		- 1 Enquire
22 N10544302
SCREW M5X25
M5X25 		- 1 Enquire
23 EQ901152
STATOR TEMPERATURE SENSOR ASSY 		- 1 Enquire
24 6C0919136
PLUG RECEPTACLE 		- 1 Enquire
25 WHT011339
HEXAGON SOCKET FLAT 		- 1 Enquire
