KIT FOR SEAT of Lamborghini Lamborghini Revuelto Coupe

View All

Lamborghini Revuelto Coupe - KIT FOR SEAT (881.04.00)

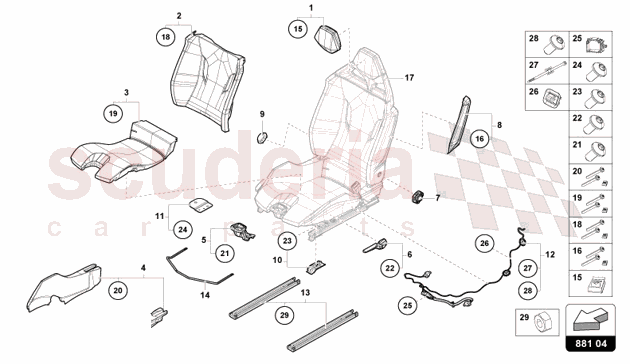

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B881901	HEADREST	Enquire	To Order
	47B881901A	HEADREST	Enquire	To Order
	47B881901B	HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B881805	TRIM PANEL FOR BACKREST	Enquire	To Order
	47B881805A	TRIM PANEL FOR BACKREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B881405	SEAT CUSHION	Enquire	To Order
	47B881405B	SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B881406	SEAT CUSHION	Enquire	To Order
	47B881406A	SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B882251	RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B882935	ACTUATING LEVER FOR SEAT	Enquire	To Order
	47B882936	ACTUATING LEVER FOR SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B881671	ACTUATING LEVER FOR SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B881085	TRIM PANEL FOR SEAT FRAME	Enquire	To Order
	47B881085B	TRIM PANEL FOR SEAT FRAME	Enquire	To Order
	47B881086	TRIM PANEL FOR SEAT FRAME	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	47B881889	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B882607	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B882607A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898718	SEAT FRAME WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B885643	SEAT RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055	FLANGED NUT M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898056	FIXING SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055	FLANGED NUT M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055	FLANGED NUT M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055	FLANGED NUT M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055B	SCREW BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055C	SCREW BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055A	VITE FISSAGGIO STAFFE SEDILE PER ABBASSA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055A	VITE FISSAGGIO STAFFE SEDILE PER ABBASSA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055D	TIE WRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055E	SCREW BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B898055F	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B881901	HEADREST	47B881901 HEADREST LEATHER - EMBROIDERED - PIPING - SUPPLY VIN	-	1	Enquire
1	47B881901A	HEADREST	47B881901A HEADREST LEATHER - EMBOSSED - PIPING - SUPPLY VIN	-	1	Enquire
1	47B881901B	HEADREST	47B881901B HEADREST DINAMICA - EMBROIDERED - PIPING - - SUPPLY VIN	-	1	Enquire
2	47B881805	TRIM PANEL FOR BACKREST	47B881805 TRIM PANEL FOR BACKREST LEATHER - PIPING - SUPPLY VIN	-	1	Enquire
2	47B881805A	TRIM PANEL FOR BACKREST	47B881805A TRIM PANEL FOR BACKREST DINAMICA / LEATHER - PIPING - SUPPLY VIN	-	1	Enquire
3	47B881405	SEAT CUSHION	47B881405 SEAT CUSHION LEATHER - PIPING - SUPPLY VIN-DRIVER SIDE	-	1	Enquire
3	47B881405B	SEAT CUSHION	47B881405B SEAT CUSHION DINAMICA/ LEATHER - PIPING - SUPPLY VIN-DRIVER SIDE	-	1	Enquire
4	47B881406	SEAT CUSHION	47B881406 SEAT CUSHION LEATHER - PIPING - SUPPLY VIN	-	1	Enquire
4	47B881406A	SEAT CUSHION	47B881406A SEAT CUSHION DINAMICA - PIPING - SUPPLY VIN	-	1	Enquire
5	47B882251	RELEASE LEVER	47B882251 RELEASE LEVER	-	1	Enquire
6	47B882935	ACTUATING LEVER FOR SEAT	47B882935 ACTUATING LEVER FOR SEAT LEFT	-	1	Enquire
6	47B882936	ACTUATING LEVER FOR SEAT	47B882936 ACTUATING LEVER FOR SEAT RIGHT	-	1	Enquire
7	47B881671	ACTUATING LEVER FOR SEAT	47B881671 ACTUATING LEVER FOR SEAT	-	1	Enquire
8	47B881085	TRIM PANEL FOR SEAT FRAME	47B881085 TRIM PANEL FOR SEAT FRAME WITH LOGO - SUPPLY VIN-LEFT - EXTERNAL SIDE	-	1	Enquire
8	47B881085B	TRIM PANEL FOR SEAT FRAME	47B881085B TRIM PANEL FOR SEAT FRAME WITHOUT LOGO - SUPPLY VIN-LEFT - INTERNAL SIDE	-	1	Enquire
8	47B881086	TRIM PANEL FOR SEAT FRAME	47B881086 TRIM PANEL FOR SEAT FRAME WITHOUT LOGO - SUPPLY VIN-RIGHT - INTERNAL SIDE	-	1	Enquire
8	47B881086B	TRIM PANEL FOR SEAT FRAME	47B881086B TRIM PANEL FOR SEAT FRAME WITH LOGO - SUPPLY VIN-RIGHT - EXTERNAL SIDE	-	1	Enquire
9	47B881889	CAP	47B881889 CAP	-	1	Enquire
10	47B882607	BRACKET	47B882607 BRACKET	-	1	Enquire
11	47B882607A	BRACKET	47B882607A BRACKET	-	1	Enquire
12	47B898718	SEAT FRAME WIRING HARNESS	47B898718 SEAT FRAME WIRING HARNESS	-	1	Enquire
14	47B885643	SEAT RELEASE	47B885643 SEAT RELEASE	-	1	Enquire
15	47B898055	FLANGED NUT M8	47B898055 FLANGED NUT M8 INCLUDED IN REF.1	-	1	Enquire
16	47B898056	FIXING SET	47B898056 FIXING SET INCLUDED IN REF.8	-	1	Enquire
18	47B898055	FLANGED NUT M8	47B898055 FLANGED NUT M8 INCLUDED IN REF.2	-	1	Enquire
19	47B898055	FLANGED NUT M8	47B898055 FLANGED NUT M8 INCLUDED IN REF.3	-	1	Enquire
20	47B898055	FLANGED NUT M8	47B898055 FLANGED NUT M8 INCLUDED IN REF.4	-	1	Enquire
21	47B898055B	SCREW BOLT	47B898055B SCREW BOLT INCLUDED IN REF.5	-	1	Enquire
22	47B898055C	SCREW BOLT	47B898055C SCREW BOLT INCLUDED IN REF.6	-	1	Enquire
23	47B898055A	VITE FISSAGGIO STAFFE SEDILE PER ABBASSA	47B898055A VITE FISSAGGIO STAFFE SEDILE PER ABBASSA INCLUDED IN REF.10	-	1	Enquire
24	47B898055A	VITE FISSAGGIO STAFFE SEDILE PER ABBASSA	47B898055A VITE FISSAGGIO STAFFE SEDILE PER ABBASSA INCLUDED IN REF.11	-	1	Enquire
27	47B898055D	TIE WRAP	47B898055D TIE WRAP INCLUDED IN REF.12	-	1	Enquire
28	47B898055E	SCREW BOLT	47B898055E SCREW BOLT INCLUDED IN REF.12	-	1	Enquire
29	47B898055F	NUT	47B898055F NUT INCLUDED IN REF.13	-	1	Enquire

SEAT (881.01.00)

KIT FOR SEAT COMFORT (881.02.00)

KIT FOR SEAT DIVIDED (881.02.00)

KIT FOR SEAT (881.04.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Kit For Seat

Lamborghini Revuelto Coupe

Illustration Number: 881.04.00

Lamborghini Revuelto Coupe - KIT FOR SEAT (881.04.00)
