COMPARTMENT LINING LHD of Lamborghini Lamborghini Revuelto Coupe

View All

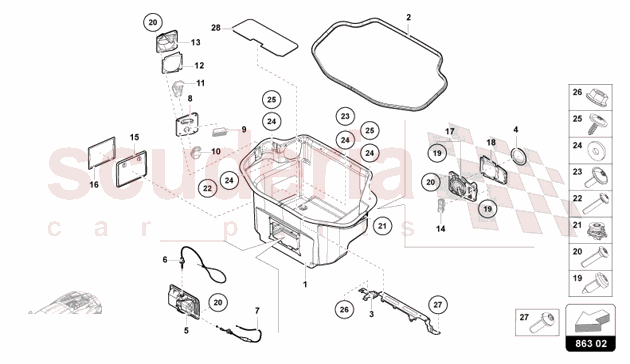

Lamborghini Revuelto Coupe - COMPARTMENT LINING LHD (863.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B863362	LUGGAGE COMPARTM.	Enquire	To Order
	47B863362A	RIVEST. VANO BAGAG	Enquire	To Order
	47B863362B	RIVEST. VANO BAGAG	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	47B823727	SEAL,ENGINE HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B823727	SEAL,ENGINE HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B863681	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B880701	EMERGENCY RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B880733	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B880734	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B863571	LINING BOX 12 VOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47A863739	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B863307	COVER COVER BATTERY AC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B863440	TRIM COVER BATTERY AC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B863905	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B863388	COVER PLUG IN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47A863497	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10656202	SCREW (ST3.5X9.5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10720101	COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0806193	COMPENSATING PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10632202	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91188301	HEXAGON SOCKET HEAD BOLT M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90531001	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007698	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017304	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B863781	FLOOR COVERING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B863362	LUGGAGE COMPARTM.	47B863362 LUGGAGE COMPARTM. NOT FOR NAR MARKET, WITHOUT NET	-	1	Enquire
1	47B863362A	RIVEST. VANO BAGAG	47B863362A RIVEST. VANO BAGAG NOT FOR NAR MARKET, WITH NET	-	1	Enquire
1	47B863362B	RIVEST. VANO BAGAG	47B863362B RIVEST. VANO BAGAG FOR NAR MARKET, WITHOUT NET	-	1	Enquire
1	47B863362C	RIVEST. VANO BAGAG	47B863362C RIVEST. VANO BAGAG FOR NAR MARKET, WITH NET	-	1	Enquire
2	47B823727	SEAL,ENGINE HOOD	47B823727 SEAL,ENGINE HOOD	-	1	Enquire
3	47B823727	SEAL,ENGINE HOOD	47B823727 SEAL,ENGINE HOOD	-	1	Enquire
4	47B863681	COVER	47B863681 COVER	-	1	Enquire
5	47B880701	EMERGENCY RELEASE	47B880701 EMERGENCY RELEASE	-	1	Enquire
6	47B880733	BOWDEN CABLE	47B880733 BOWDEN CABLE	-	1	Enquire
7	47B880734	BOWDEN CABLE	47B880734 BOWDEN CABLE	-	1	Enquire
8	47B863571	LINING BOX 12 VOLT	47B863571 LINING BOX 12 VOLT LHD	-	1	Enquire
12	47A863739	COVER	47A863739 COVER LHD	-	1	Enquire
13	47B863307	COVER COVER BATTERY AC	47B863307 COVER COVER BATTERY AC LHD	-	1	Enquire
15	47B863440	TRIM COVER BATTERY AC	47B863440 TRIM COVER BATTERY AC	-	1	Enquire
16	47B863905	COVER	47B863905 COVER	-	1	Enquire
17	47B863388	COVER PLUG IN	47B863388 COVER PLUG IN LHD	-	1	Enquire
18	47A863497	COVER	47A863497 COVER LHD	-	1	Enquire
19	N10656202	SCREW (ST3.5X9.5)	N10656202 SCREW (ST3.5X9.5)	-	1	Enquire
20	N10720101	COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD	N10720101 COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD M4X18	-	1	Enquire
21	8E0806193	COMPENSATING PIECE	8E0806193 COMPENSATING PIECE 3,4MM	-	1	Enquire
22	N10632202	ROUND HD. SCREW	N10632202 ROUND HD. SCREW M6X30	-	1	Enquire
23	N91188301	HEXAGON SOCKET HEAD BOLT M6 X 20	N91188301 HEXAGON SOCKET HEAD BOLT M6 X 20 M6X20	-	1	Enquire
24	N90531001	WASHER	N90531001 WASHER 5,5X16X2	-	1	Enquire
25	WHT007698	HEXAGON SOCKET HEAD PANEL BOLT	WHT007698 HEXAGON SOCKET HEAD PANEL BOLT	-	1	Enquire
26	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT M5	-	1	Enquire
27	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18	-	1	Enquire
28	47B863781	FLOOR COVERING	47B863781 FLOOR COVERING	-	1	Enquire
