Rear

Lamborghini Revuelto Coupe

Illustration Number: 805.01.00

Find Your Part

Lamborghini Revuelto Coupe - REAR (805.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B813031B REAR END ASSY WITH MIL. Enquire To Order
Photo Part No Description Price (each) Stock
N10673002 12-POINT SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
N91303101 12-POINT SOCKET M12X1.5X50 Enquire To Order
Photo Part No Description Price (each) Stock
N10609209 HEXAGON FLANGE NUTM8 Enquire To Order
Photo Part No Description Price (each) Stock
WHT003401 WELD STUDS WITH CAP NUTS Enquire To Order
View All

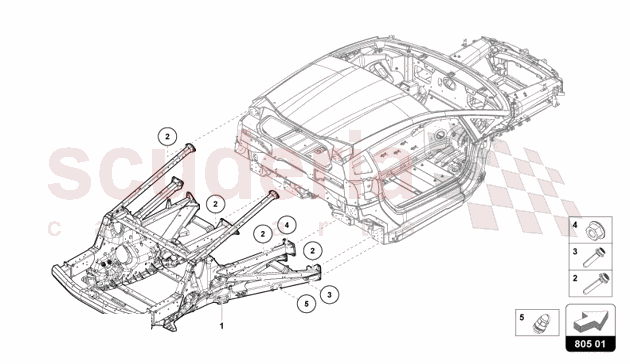

REAR of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B813031B
REAR END ASSY WITH MIL. 		- 1 Enquire
2 N10673002
12-POINT SOCKET 		- 1 Enquire
3 N91303101
12-POINT SOCKET M12X1.5X50 		- 1 Enquire
4 N10609209
HEXAGON FLANGE NUTM8 		- 1 Enquire
5 WHT003401
WELD STUDS WITH CAP NUTS
M8 		- 1 Enquire
