Calliper Brake Front

Lamborghini Revuelto Coupe

Illustration Number: 615.01.00

Find Your Part

Lamborghini Revuelto Coupe - CALLIPER BRAKE FRONT (615.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B615107K BRAKE CALIPER Enquire To Order
47B615107L BRAKE CALIPER Enquire To Order
47B615107M BRAKE CALIPER Enquire To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
47B615301A BRAKE ROTOR Enquire To Order
47B615302A BRAKE ROTOR Enquire To Order
Photo Part No Description Price (each) Stock
47B698307 BRAKE LINE Enquire To Order
47B698308 BRAKE LINE Enquire To Order
Photo Part No Description Price (each) Stock
47B698507 SET OF SEALS FOR Enquire To Order
Photo Part No Description Price (each) Stock
8A0615273 1 SET BLEEDER VALVES WITH DUST CAP Enquire To Order
Photo Part No Description Price (each) Stock
47B698151 SET GUARNIZIONI FRENO Enquire To Order
Photo Part No Description Price (each) Stock
9P1907637B SENDER WIRE Enquire To Order
Photo Part No Description Price (each) Stock
47B698135A 1 SET OF SPRINGS Enquire To Order
Photo Part No Description Price (each) Stock
47B698010 1 SET CYLINDER SLEEVES WITH Enquire To Order
Photo Part No Description Price (each) Stock
47B615311 COVER Enquire To Order
47B615312 COVER Enquire To Order
Photo Part No Description Price (each) Stock
47B611793A BRACKET Enquire To Order
47B611794A BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
47B615161A AIR DEFLECTOR Enquire To Order
47B615162A AIR DEFLECTOR Enquire To Order
Photo Part No Description Price (each) Stock
47B615159A AIR DEFLECTOR Enquire To Order
47B615160A AIR DEFLECTOR Enquire To Order
Photo Part No Description Price (each) Stock
47B611799A BRACK_BRAKE_LH Enquire To Order
Photo Part No Description Price (each) Stock
47B698705 GREASE Enquire To Order
Photo Part No Description Price (each) Stock
WHT007585 HEXALOBULAR SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
N91079301 SCREW M8X16 Enquire To Order
Photo Part No Description Price (each) Stock
N10406504 OVAL HEXAGON SOCKET HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N10741402 HEXAGON SOCKET FLAT HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N10714801 OVAL HEXAGON SOCKET HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
8K0611715 RETAINING SPRING Enquire To Order
Photo Part No Description Price (each) Stock
N10648301 HEX SOCKET COUNTERSUNK BOLT Enquire To Order
View All

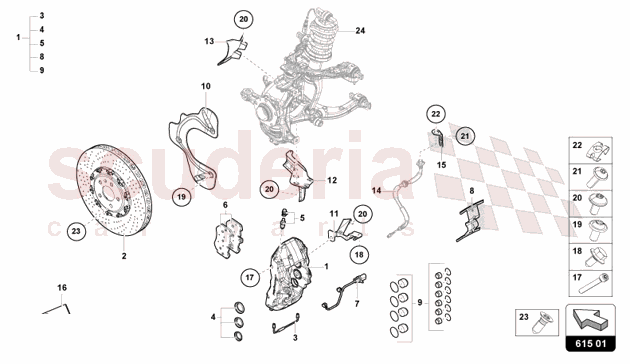

CALLIPER BRAKE FRONT of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B615107K
BRAKE CALIPER
BLACK-LEFT BLACK 		- 1 Enquire
1 47B615107L
BRAKE CALIPER
GIALLO BELENUS-LEFT YELLOW 		- 1 Enquire
1 47B615107M
BRAKE CALIPER
ROSSO MARS-LEFT RED 		- 1 Enquire
1 47B615107N
BRAKE CALIPER
VERDE SELVANS-LEFT SELVANS GREEN 		- 1 Enquire
1 47B615107P
BRAKE CALIPER
SILVER-LEFT SILVER 		- 1 Enquire
1 47B615107Q
BRAKE CALIPER
ARANCIO XANTO-LEFT ORANGE 		- 1 Enquire
1 47B615107R
BRAKE CALIPER
SHINY BLACK-LEFT SHINY BLACK 		- 1 Enquire
1 47B615107S
BRAKE CALIPER
VERDE SCANDAL-LEFT SCANDAL GREEN 		- 1 Enquire
1 55047267
OWNER'S MANUAL
VIOLA PERSIFAE-LEFT VIOLA PERSIFAE 		- 1 Enquire
1 47B615108K
BRAKE CALIPER
BLACK-RIGHT BLACK 		- 1 Enquire
1 47B615108L
BRAKE CALIPER
GIALLO BELENUS-RIGHT YELLOW 		- 1 Enquire
1 47B615108M
BRAKE CALIPER
ROSSO MARS-RIGHT RED 		- 1 Enquire
1 47B615108N
BRAKE CALIPER
VERDE SELVANS-RIGHT SELVANS GREEN 		- 1 Enquire
1 47B615108P
BRAKE CALIPER
SILVER-RIGHT SILVER 		- 1 Enquire
1 47B615108Q
BRAKE CALIPER
ARANCIO XANTO-RIGHT ORANGE 		- 1 Enquire
1 47B615108R
BRAKE CALIPER
SHINY BLACK-RIGHT SHINY BLACK 		- 1 Enquire
1 47B615108S
BRAKE CALIPER
VERDE SCANDAL-RIGHT SCANDAL GREEEN 		- 1 Enquire
1 55047273
OWNER'S MANUAL
VIOLA PERSIFAE-RIGHT VIOLA PERSIFAE 		- 1 Enquire
2 47B615301A
BRAKE ROTOR
LEFT 		- 1 Enquire
2 47B615302A
BRAKE ROTOR
RIGHT 		- 1 Enquire
3 47B698307
BRAKE LINE
LEFT 		- 1 Enquire
3 47B698308
BRAKE LINE
RIGHT 		- 1 Enquire
4 47B698507
SET OF SEALS FOR 		- 1 Enquire
5 8A0615273
1 SET BLEEDER VALVES WITH DUST CAP 		- 1 Enquire
6 47B698151
SET GUARNIZIONI FRENO 		- 1 Enquire
7 9P1907637B
SENDER WIRE 		- 1 Enquire
8 47B698135A
1 SET OF SPRINGS 		- 1 Enquire
9 47B698010
1 SET CYLINDER SLEEVES WITH 		- 1 Enquire
10 47B615311
COVER
LEFT 		- 1 Enquire
10 47B615312
COVER
RIGHT 		- 1 Enquire
11 47B611793A
BRACKET
LEFT 		- 1 Enquire
11 47B611794A
BRACKET
RIGHT 		- 1 Enquire
12 47B615161A
AIR DEFLECTOR
LEFT 		- 1 Enquire
12 47B615162A
AIR DEFLECTOR
RIGHT 		- 1 Enquire
13 47B615159A
AIR DEFLECTOR
LEFT 		- 1 Enquire
13 47B615160A
AIR DEFLECTOR
RIGHT 		- 1 Enquire
15 47B611799A
BRACK_BRAKE_LH 		- 1 Enquire
16 47B698705
GREASE 		- 1 Enquire
17 WHT007585
HEXALOBULAR SOCKET 		- 1 Enquire
18 N91079301
SCREW M8X16
M8X16 		- 1 Enquire
19 N10406504
OVAL HEXAGON SOCKET HEAD BOLT
M6X12 		- 1 Enquire
20 N10741402
HEXAGON SOCKET FLAT HEAD BOLT
M6X14 		- 1 Enquire
21 N10714801
OVAL HEXAGON SOCKET HEAD BOLT
M6X18 		- 1 Enquire
22 8K0611715
RETAINING SPRING 		- 1 Enquire
23 N10648301
HEX SOCKET COUNTERSUNK BOLT
M6X16 		- 1 Enquire
