SUSPENSION of Lamborghini Lamborghini Revuelto Coupe

View All

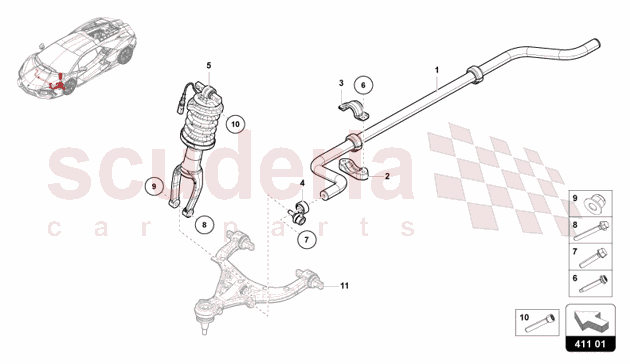

Lamborghini Revuelto Coupe - SUSPENSION (411.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B411309	BARRA STABILIZZ.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B411031	STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0411336	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B411317A	COUPLING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B412019F	FRONT DAMPER MODULE WITH LIFTING	Enquire	To Order
	47B412019G	FRONT DAMPER MODULE WITHOUT LIFTING	Enquire	To Order
	47B412019L	FRONT DAMPER MODULE WITH LIFTING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10314506	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10640301	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10106403	HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B411309	BARRA STABILIZZ.	47B411309 BARRA STABILIZZ. FRONT	-	1	Enquire
2	47B411031	STABILIZER BAR	47B411031 STABILIZER BAR UNDER	-	1	Enquire
3	4M0411336	CLAMP	4M0411336 CLAMP UPPER	-	1	Enquire
4	47B411317A	COUPLING ROD	47B411317A COUPLING ROD	-	1	Enquire
5	47B412019F	FRONT DAMPER MODULE WITH LIFTING	47B412019F FRONT DAMPER MODULE WITH LIFTING WITH LIFTING SYSTEM	-	1	Enquire
5	47B412019G	FRONT DAMPER MODULE WITHOUT LIFTING	47B412019G FRONT DAMPER MODULE WITHOUT LIFTING WITHOUT LIFTING SYSTEM	-	1	Enquire
5	47B412019L	FRONT DAMPER MODULE WITH LIFTING	47B412019L FRONT DAMPER MODULE WITH LIFTING WITHOUT LIFTING SYSTEM-ONLY FOR VIETNAM,KOREA, AUSTRALIA	-	1	Enquire
5	47B412019Q	FRONT DAMPER MODULE WITH LIFTING (ROW)	47B412019Q FRONT DAMPER MODULE WITH LIFTING (ROW) WITH LIFTING SYSTEM	-	1	Enquire
5	47B412019R	FRONT DAMPER MODULE WITH LIFTING (VIETNA	47B412019R FRONT DAMPER MODULE WITH LIFTING (VIETNA WITH LIFTING SYSTEM-ONLY FOR VIETNAM , KOREA, AUSTRALIA	-	1	Enquire
6	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X50	-	1	Enquire
7	N10314506	HEX COLLARED BOLT	N10314506 HEX COLLARED BOLT M10X50	-	1	Enquire
8	N10640301	HEX COLLARED BOLT	N10640301 HEX COLLARED BOLT M12X1,5X100	-	1	Enquire
9	N10106403	HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5	N10106403 HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5 M12X1,5	-	1	Enquire
10	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X55	-	1	Enquire

Haven't found what you're looking for?

More: Lamborghini Suspension Tuning Parts Need help? Call us

View Cart / Checkout

Suspension

Lamborghini Revuelto Coupe

Illustration Number: 411.01.00

Lamborghini Revuelto Coupe - SUSPENSION (411.01.00)
