Find Your Part

View All

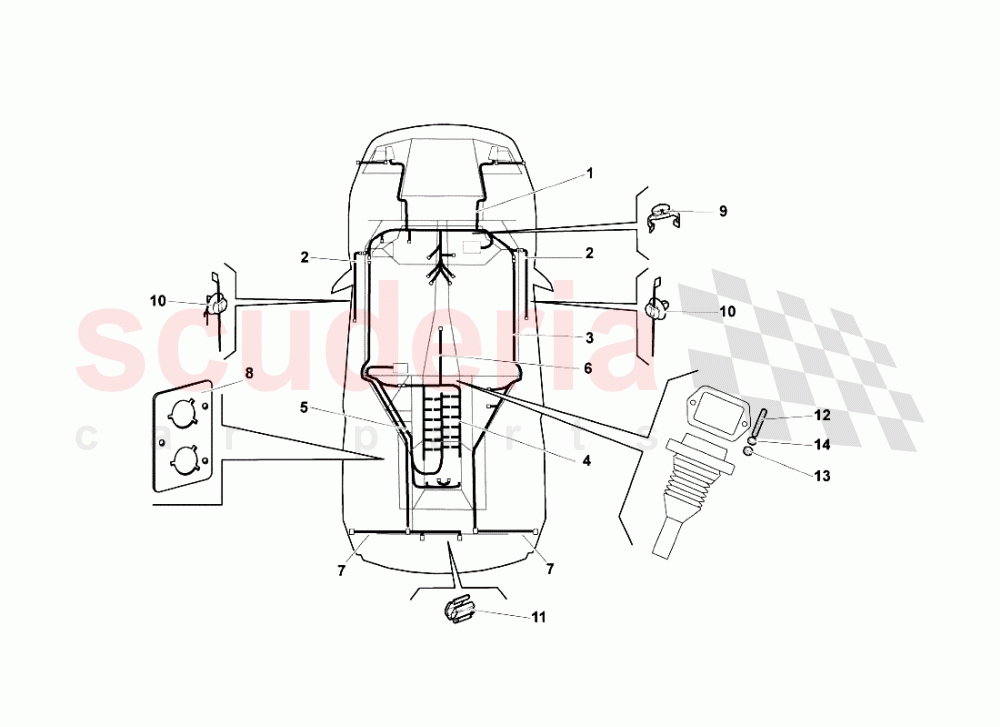

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	417971135N	CENTRAL WIRING HARNESS	417971135N CENTRAL WIRING HARNESS	$3,138.43	1
002	417971035A	DOOR WIRING HARNESS	417971035A DOOR WIRING HARNESS	$3,185.48	1
003	410971174J	RIGHT REAR WIRING HARNESS	410971174J RIGHT REAR WIRING HARNESS	$869.63	1
005	7M905532Q	INJECTION WIRING HARNESS (E-GEAR)	7M905532Q INJECTION WIRING HARNESS (E-GEAR)	$2,748.66	1
005	7M905532P	INJECTION WIRING HARNESS (MANUAL GEARBOX)	7M905532P INJECTION WIRING HARNESS (MANUAL GEARBOX)	$2,668.02	1
006	410971771F	E-GEAR WIRING	410971771F E-GEAR WIRING	$1,302.41	1
008	410971303C	SUPPORT	410971303C SUPPORT	$32.81	1
009	701971899G	CLAMP	701971899G CLAMP	$0.85 MSRP: ~~2.70~~ (68.5% off)	1
010	3D0971818	CABLE TIES	3D0971818 CABLE TIES	$2.84	4
011	1H0971842B	CLAMP	1H0971842B CLAMP	$9.35	4
012	N0443954	STUD BOLT M6X30.0 (E-GEAR)	N0443954 STUD BOLT M6X30.0 (E-GEAR)	$1.43 MSRP: ~~7.21~~ (80.2% off)	2
013	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	2
014	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	2
