HEAT SHIELD of Lamborghini Lamborghini Huracan STO

View All

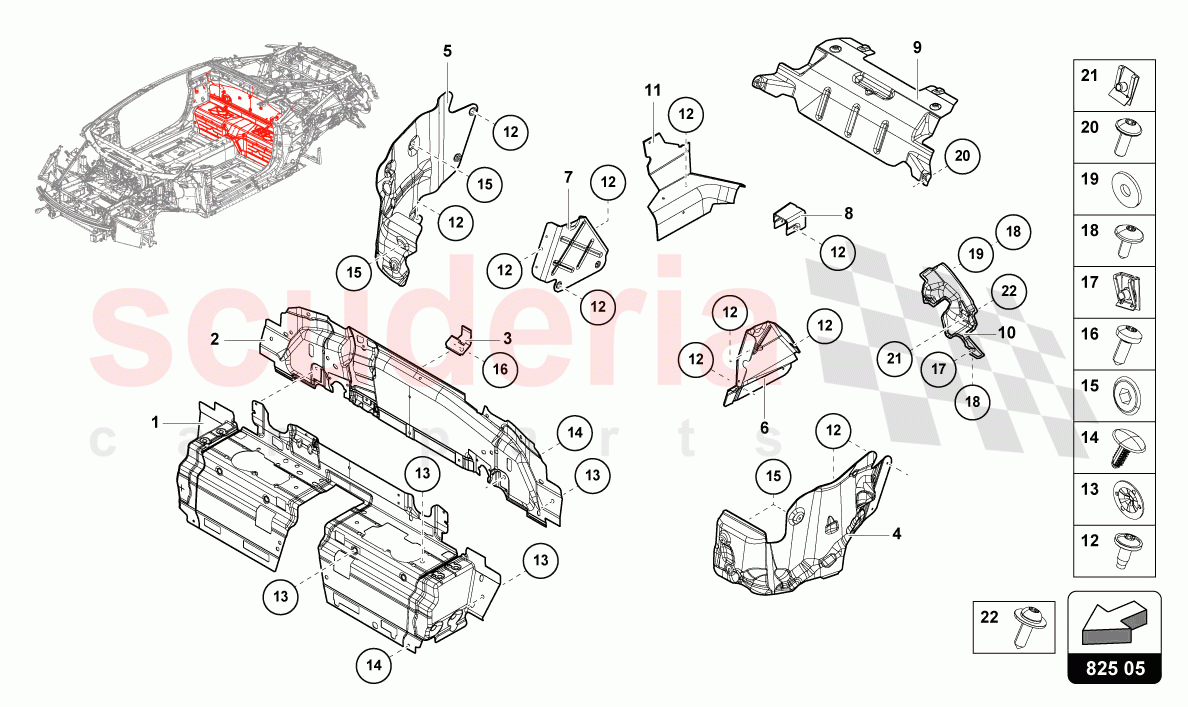

Lamborghini Huracan STO - HEAT SHIELD (825.05.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S0825249D	SOUND ABSORBER FOR REAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T8825237D	SOUND ABSORBER FOR REAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0825241	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0825731B	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0825733A	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0825741B	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0825742A	GUARD PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0825707A	HEAT DEFLECTOR PLATE FOR BUMPER	Enquire	To Order
	4S0825708A	HEAT DEFLECTOR PLATE FOR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0825613D	HEAT SHIELD	Enquire	To Order
	4T0825613D	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0863777C	HEAT INSULATION	Enquire	To Order
	4T0863778C	HEAT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0825753	HEAT SHIELD	Enquire	To Order
	4T0825754	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003841	FLAT ROUND HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90335004	CLAMPING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0805163	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90708803	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91195701	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90981701	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S0825249D	SOUND ABSORBER FOR REAR PANEL	4S0825249D SOUND ABSORBER FOR REAR PANEL	-	1	Enquire
2	4T8825237D	SOUND ABSORBER FOR REAR PANEL	4T8825237D SOUND ABSORBER FOR REAR PANEL	-	1	Enquire
3	4T0825241	SUPPORT	4T0825241 SUPPORT	-	1	Enquire
4	4S0825731B	HEAT SHIELD	4S0825731B HEAT SHIELD	-	1	Enquire
5	4S0825733A	HEAT SHIELD	4S0825733A HEAT SHIELD RIGHT	-	1	Enquire
6	4S0825741B	HEAT SHIELD	4S0825741B HEAT SHIELD REAR	-	1	Enquire
7	4S0825742A	GUARD PLATE	4S0825742A GUARD PLATE RIGHT	-	1	Enquire
8	4S0825707A	HEAT DEFLECTOR PLATE FOR BUMPER	4S0825707A HEAT DEFLECTOR PLATE FOR BUMPER LEFT	-	1	Enquire
8	4S0825708A	HEAT DEFLECTOR PLATE FOR BUMPER	4S0825708A HEAT DEFLECTOR PLATE FOR BUMPER RIGHT	-	1	Enquire
9	4T0825613D	HEAT SHIELD	4T0825613D HEAT SHIELD	-	1	Enquire
9	4T0825613D	HEAT SHIELD	4T0825613D HEAT SHIELD NOT FOR CHINA MARKET	-	1	Enquire
10	4T0863777C	HEAT INSULATION	4T0863777C HEAT INSULATION LEFT REAR	-	1	Enquire
10	4T0863778C	HEAT INSULATION	4T0863778C HEAT INSULATION RIGHT REAR	-	1	Enquire
11	4T0825753	HEAT SHIELD	4T0825753 HEAT SHIELD LEFT	-	1	Enquire
11	4T0825754	HEAT SHIELD	4T0825754 HEAT SHIELD RIGHT	-	1	Enquire
12	WHT003841	FLAT ROUND HEAD BOLT	WHT003841 FLAT ROUND HEAD BOLT M6GFX14	-	33	Enquire
13	N90335004	CLAMPING WASHER	N90335004 CLAMPING WASHER 5X30	-	15	Enquire
14	4S0805163	CLIP	4S0805163 CLIP	-	7	Enquire
15	N90708803	SPEED NUT	N90708803 SPEED NUT 5	-	7	Enquire
16	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	1	Enquire
17	N91195701	SPEED NUT	N91195701 SPEED NUT M6X22X15	-	2	Enquire
18	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	4	Enquire
19	N01166623	WASHER	N01166623 WASHER 6 -4X18X1,6	-	2	Enquire
20	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	N90780901 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	6	Enquire
21	N90981701	SPEED NUT	N90981701 SPEED NUT M5X21.0X15.3	-	1	Enquire
22	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	-	1	Enquire
