Lamborghini Huracan STO - GUIDE (505.03.00)

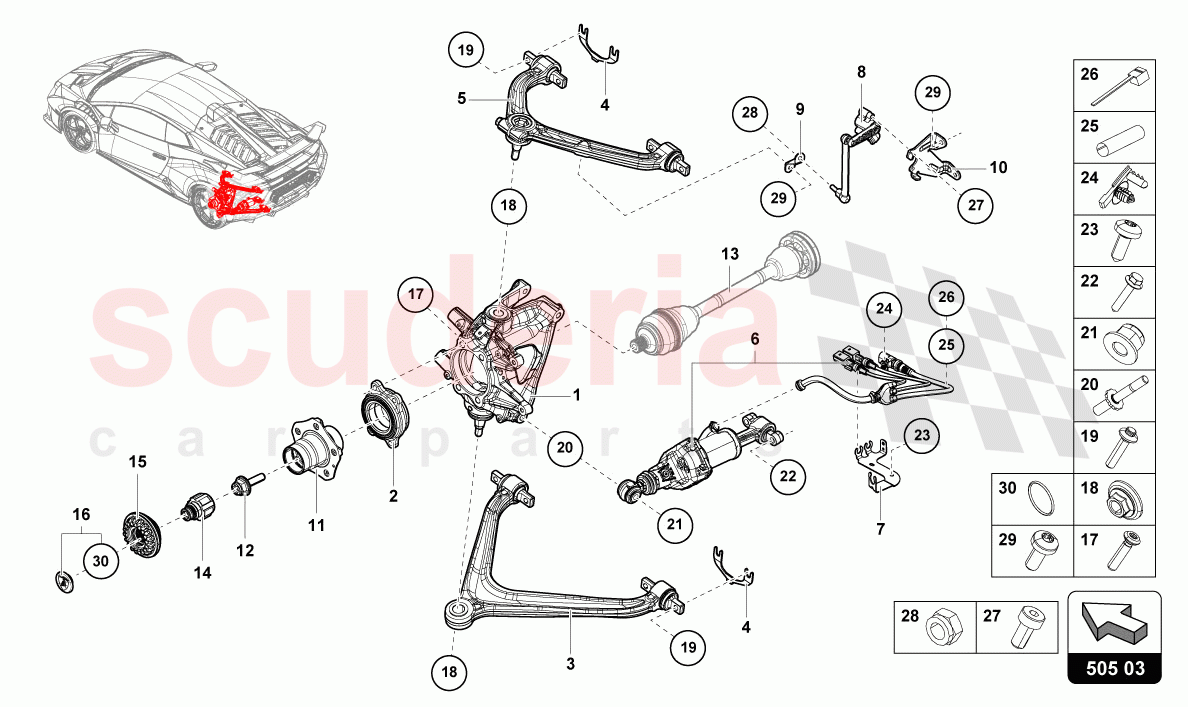

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T3505433	WHEEL BEARING HOUSING	Enquire	To Order
	4T3505434	WHEEL BEARING HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0407625F	DUOBLE BALL BEARING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4T0505311B	WISHBONE	Enquire	To Order
	4T0505312B	WISHBONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0407203C	BALANCING PLATE	Enquire	To Order
	4S0407203D	BALANCING PLATE	Enquire	To Order
	4S0407203E	BALANCING PLATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0505323A	WISHBONE	Enquire	To Order
	4T0505324A	WISHBONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0501397D	STEERING GEAR	Enquire	To Order
	4T0501398D	STEERING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0501233B	BRACKET	Enquire	To Order
	4T0501234B	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470941273A	POSITION SENSOR	Enquire	To Order
	470941307	POSITION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0941287B	RETAINING BRACKET	Enquire	To Order
	4T0941288B	RETAINING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0941287A	RETAINING BRACKET	Enquire	To Order
	4T0941288A	RETAINING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0407613	WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007467	SHOULDERED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470615259A	SUSPENSION BLOCKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470601295	NUT	Enquire	To Order
	470601295A	NUT	Enquire	To Order
	470601295C	NUT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470601259C	Lamborghini Centre Cover for Alloy Wheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000237	BALL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007142	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT009933	PAN HEAD BOLT WITH DOUBLE THREAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10106403	HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10699401	HEXAGON BOLT M10 X 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1J0906029A	BRACKET FOR CONNECTOR HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10562301	CABLE TIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10434301	SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01118312	HEXAGON NUT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470698009	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T3505433	WHEEL BEARING HOUSING	4T3505433 WHEEL BEARING HOUSING LEFT REAR	-	1	Enquire
1	4T3505434	WHEEL BEARING HOUSING	4T3505434 WHEEL BEARING HOUSING RIGHT REAR	-	1	Enquire
2	8K0407625F	DUOBLE BALL BEARING ARRIVING SOON	8K0407625F DUOBLE BALL BEARING 62/61X40 -5 ARRIVING SOON	-	2	Enquire
3	4T0505311B	WISHBONE	4T0505311B WISHBONE LEFT LOWER	-	1	Enquire
3	4T0505312B	WISHBONE	4T0505312B WISHBONE RIGHT LOWER	-	1	Enquire
4	4S0407203C	BALANCING PLATE	4S0407203C BALANCING PLATE 1MM	-	2	Enquire
4	4S0407203D	BALANCING PLATE	4S0407203D BALANCING PLATE 2MM	-	2	Enquire
4	4S0407203E	BALANCING PLATE	4S0407203E BALANCING PLATE 3MM	-	2	Enquire
4	4S0407203G	BALANCING PLATE	4S0407203G BALANCING PLATE 0 -5MM	-	2	Enquire
4	4S0407203H	BALANCING PLATE	4S0407203H BALANCING PLATE 1 -5MM	-	2	Enquire
5	4T0505323A	WISHBONE	4T0505323A WISHBONE LEFT UPPER	-	1	Enquire
5	4T0505324A	WISHBONE	4T0505324A WISHBONE RIGHT UPPER	-	1	Enquire
6	4T0501397D	STEERING GEAR	4T0501397D STEERING GEAR FROM VIN LA18419 ORDER ALSO RIGHT 4T0501398D-LEFT	-	1	Enquire
6	4T0501398D	STEERING GEAR	4T0501398D STEERING GEAR FROM VIN LA18419 ORDER ALSO LEFT 4T0501397D-RIGHT	-	1	Enquire
7	4T0501233B	BRACKET	4T0501233B BRACKET LEFT	-	1	Enquire
7	4T0501234B	BRACKET	4T0501234B BRACKET RIGHT	-	1	Enquire
8	470941273A	POSITION SENSOR	470941273A POSITION SENSOR	-	1	Enquire
8	470941307	POSITION SENSOR	470941307 POSITION SENSOR	-	1	Enquire
9	4T0941287B	RETAINING BRACKET	4T0941287B RETAINING BRACKET LEFT	-	1	Enquire
9	4T0941288B	RETAINING BRACKET	4T0941288B RETAINING BRACKET RIGHT	-	1	Enquire
10	4T0941287A	RETAINING BRACKET	4T0941287A RETAINING BRACKET LEFT	-	1	Enquire
10	4T0941288A	RETAINING BRACKET	4T0941288A RETAINING BRACKET RIGHT	-	1	Enquire
11	4T0407613	WHEEL HUB	4T0407613 WHEEL HUB	-	2	Enquire
12	WHT007467	SHOULDERED BOLT	WHT007467 SHOULDERED BOLT M16X1 -5X72	-	2	Enquire
14	470615259A	SUSPENSION BLOCKS	470615259A SUSPENSION BLOCKS	-	2	Enquire
15	470601295	NUT	470601295 NUT RED	-	2	Enquire
15	470601295A	NUT	470601295A NUT BLACK	-	2	Enquire
15	470601295C	NUT	470601295C NUT BLUE	-	2	Enquire
15	470601295D	NUT	470601295D NUT ORANGE	-	2	Enquire
15	470601295F	NUT	470601295F NUT GOLD	-	2	Enquire
16	470601259C	Lamborghini Centre Cover for Alloy Wheel	470601259C Lamborghini Centre Cover for Alloy Wheel	-	2	Enquire
17	WHT000237	BALL SCREW	WHT000237 BALL SCREW M12X1 -5X45	-	8	Enquire
18	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING M14X1 -5	-	4	Enquire
19	WHT007142	HEXAGON BOLT	WHT007142 HEXAGON BOLT M10X40	-	16	Enquire
20	WHT009933	PAN HEAD BOLT WITH DOUBLE THREAD	WHT009933 PAN HEAD BOLT WITH DOUBLE THREAD	-	2	Enquire
21	N10106403	HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5	N10106403 HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5 M12X1 -5	-	2	Enquire
22	N10699401	HEXAGON BOLT M10 X 50	N10699401 HEXAGON BOLT M10 X 50 M10X50	-	4	Enquire
23	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	4	Enquire
24	1J0906029A	BRACKET FOR CONNECTOR HOUSING	1J0906029A BRACKET FOR CONNECTOR HOUSING 6R0 973 735 1J0 973 835	-	2	Enquire
26	N10562301	CABLE TIES	N10562301 CABLE TIES 4 -7X194	-	6	Enquire
27	N10434301	SOCKET HEAD BOLT	N10434301 SOCKET HEAD BOLT M5X10 N 104 343 FQA-TEIL	-	4	Enquire
28	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING M6	-	2	Enquire
29	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT M6X14	-	6	Enquire
30	470698009	O-RING	470698009 O-RING	-	1	Enquire
